TurtleBot 2 - Step 4: Mount Kinect Assembly; Attach Kinect Standoffs and Mount

Step 4
Needed:
Item No. Qty.
2 2
10 2
11 1

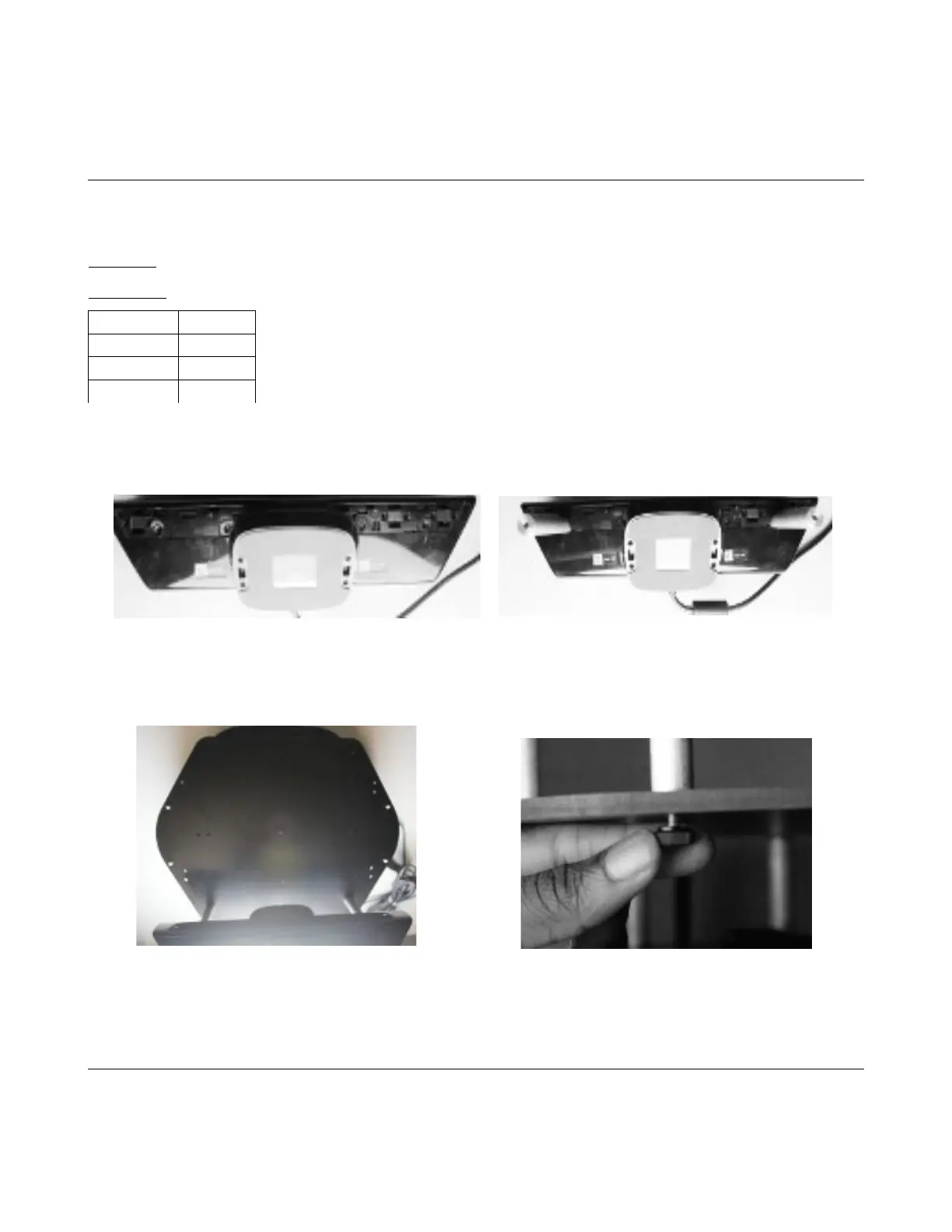

Locate the two outside holes on the modified Kinect and fasten the two Kinect
Standoffs until they are flush with the surface.
Place Kinect Assembly in it's location on top of Disc 2 and fasten using the two M4
Thumbscrews.
TurtleBot 2 Assembly Instructions
IHE-2700-000C-0000
Page 7/9
Before
After
