Tusa RS-340 - 400, R-400 DIN First Stage

- 2 -
Regulators
GB
2

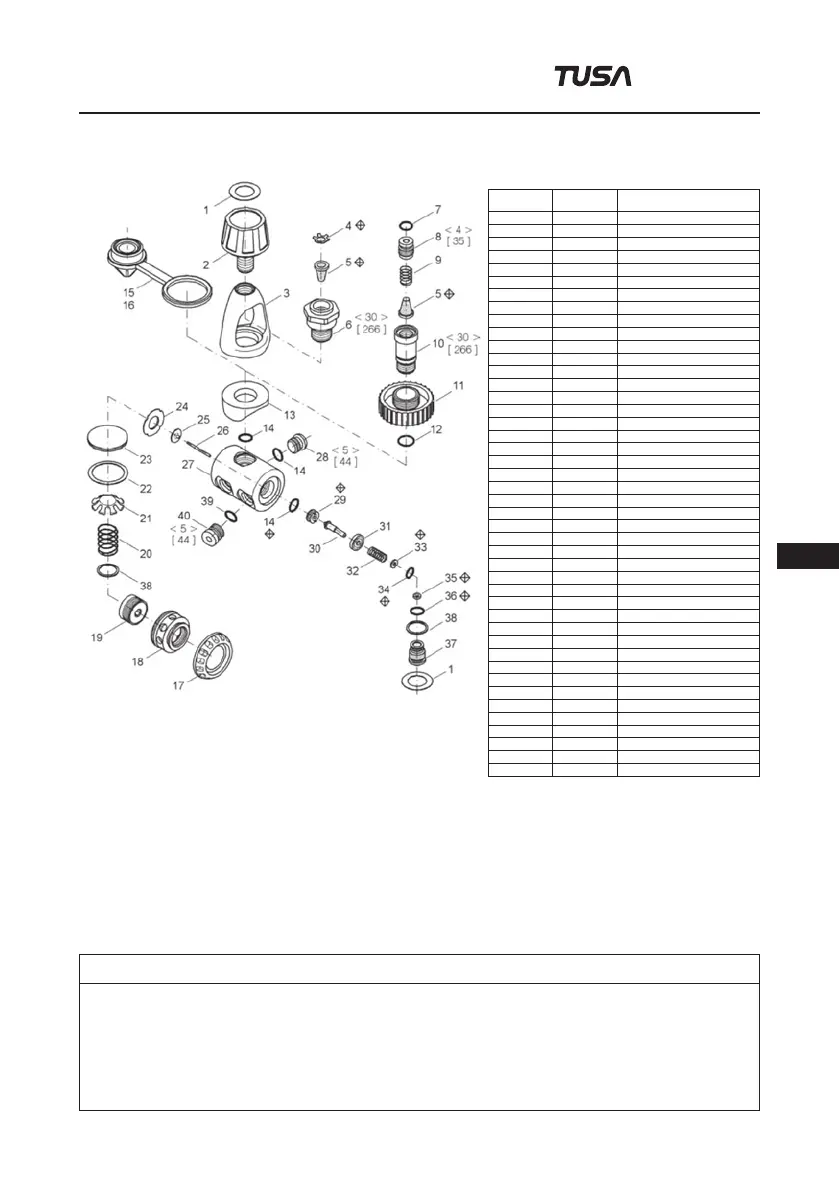

R-400, R-400DIN
ITEM NO. PART NO. DESCRIPTION
5,7,8,9,10,11,12 DIN-RS460 DIN CONVERSION KIT
1 R-400-010 DECAL
2 R-400-020 YOKE SCREW 9/16"
3 R-400-030 YOKE
4 R-400-040 FILTER RETAINER
5 R-400-050 FILTER
6 R-400-060 YOKE RETAINER
7 111 O-RING
8 R-400-080 FILTER RETAINER 300 BAR
9 R-400-090 SPRING
10 R-400-100 DIN CONNECTOR 300 BAR
11 R-100-110 DIN WHEEL 300 BAR
12 014 O-RING
13 R-400-130 SADDLE
14 011 O-RING
15 R-400-150 DUST CAP
16 R-400-160 DUST CAP (DIN)
17 R-400-170 PROTECTION CAP
18 R-400-180 DIAPHRAGM NUT
19 R-400-190 SPRING SCREW
20 R-400-200 SPRING T. I .S.
21 R-400-210 SPRING BASE
22 R-400-220 DIAPHRAGM RING
23 R-400-230 DIAPHRAGM
24 R-400-240 DISC
25 R-400-250 INSERT, DISC
26 R-400-260 DIAPHRAGM PIN
27 R-400-270 BODY
28 R-400-280 PLUG H. P.
29 R-400-290 H.P. SEAT
30 R-400-300 PISTON
31 R-400-310 SLEEVE
32 R-400-320 H.P. SPRING
33 R-400-330 WASHER
34 006 O-RING
35 R-400-350 BAL. CHAMBER HOLDER
36 012 O-RING
37 R-400-370 BAL. CHAMBER
38 R-400-380 WASHER
39 010 O-RING
40 R-400-400 PLUG L. P.
41 ORIFICE
42 H.P. SEAT COMPLETE
43 O-RING
R-400, R-400DIN
SPECIFICATIONS & PERFORMANCE DESCRIPTION
WORKING PRESSURE: 3360 PSI 232 bar: (300 bar: R-400DIN only)
INTERMEDIATE PRESSURE: 130-140 PSI 9.2 - 10 bar
DIMENSIONS: LENGTH: 5.30 IN. 135 MM
Ø: 2.72 IN. 69 MM
WEIGHT:(w/o Hose) 1.87 LBS. 850 GRAM
R-400, R-400DIN FIRST STAGE
