Door lock installation tutorial
11.Put the handle cover into the back handle;
12.Tighten the screws securing the rear handle
cover.
8
Door lock installation tutorial
Latch installation
direction(inside open)
Latch installation
direction(outside open)
8.Aligh the front handle with the door hole and
pass through the lock hole;
9.Fasten the front and rear handle connections
with screws and tighten the screws;
9
10.Insert the wire terminal into the circuit board slot;
Door lock installation tutorial
7
Door lock installation tutorial
6.Use a screwdriver to remove the screws on the rear
handle cover.

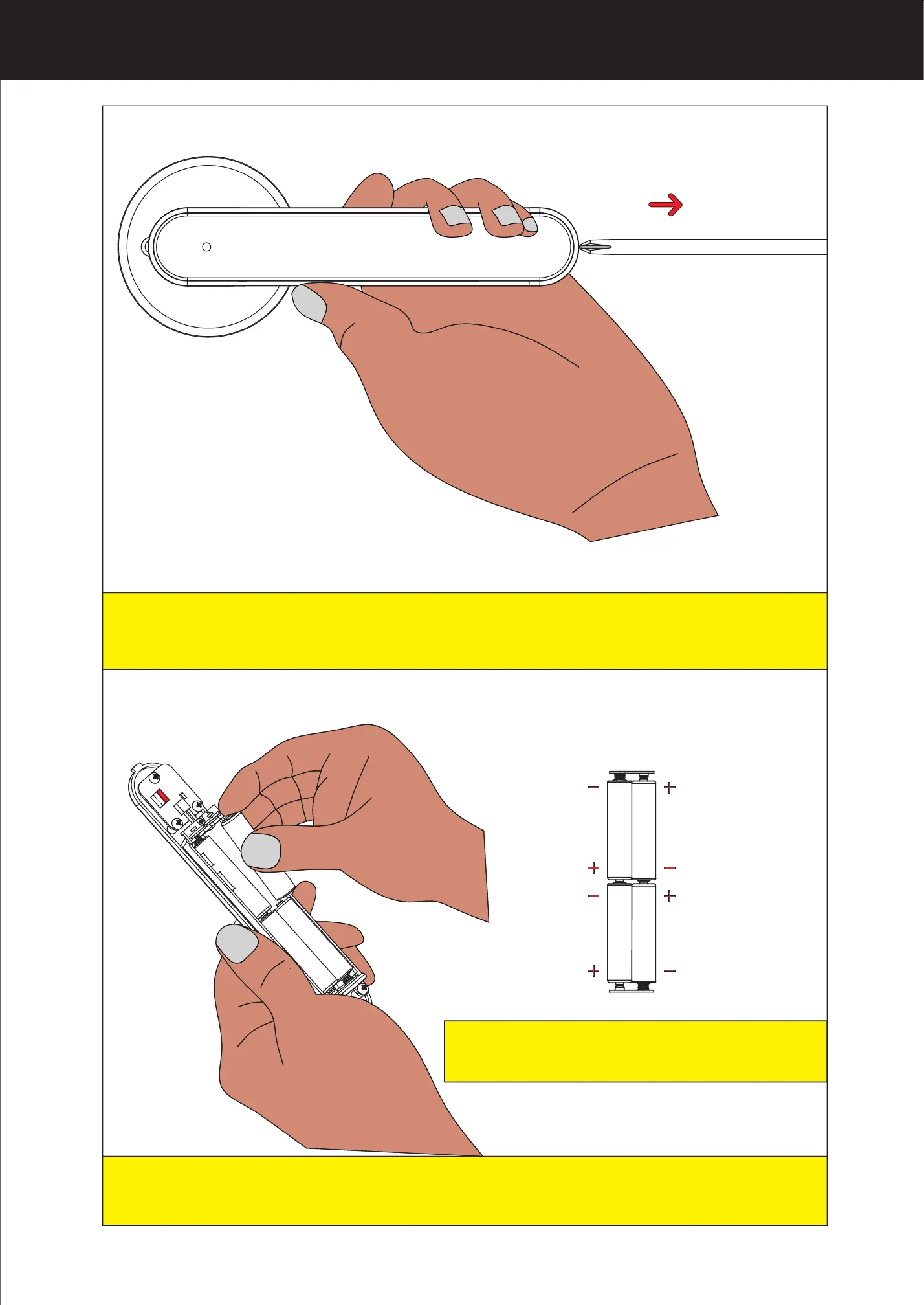

Note:
Battery installation direction
7.Put four alkaline LR03 AAA batteries into the battery
compartment;
