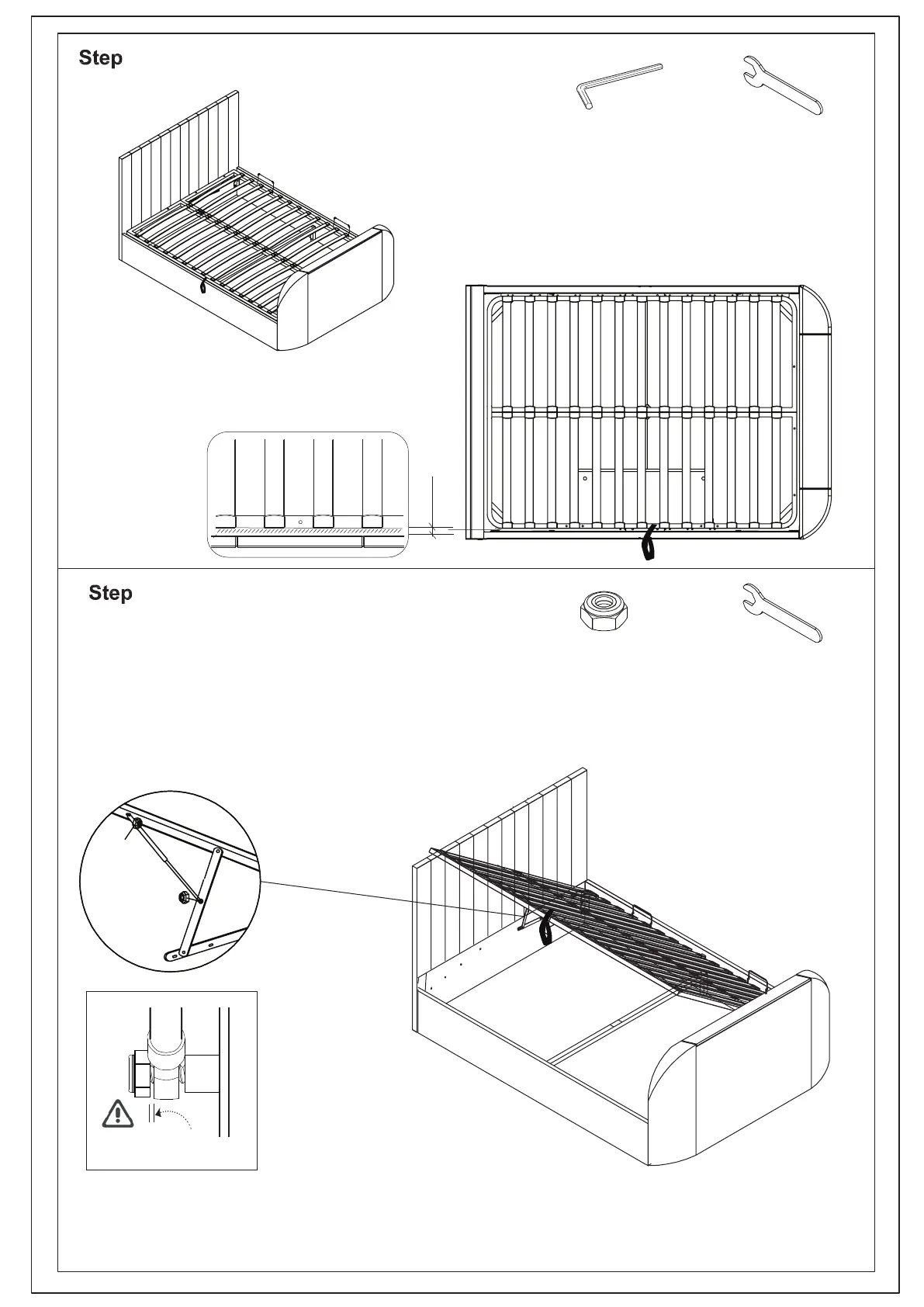

Fit the pistons (9) sliding the
stems (x) over the axles (y).
Tighten lock nuts (O) with
spanner (P) but please DO NOT
over-tighten, a small gap needs
to be left so stems can move
freely - if too tight the frame will
be hard to lift so this is important.
SMALL GAP
y
x
Carefully lay frame down. Make sure there is an
even gap each side of about
8 mm, as in the sketch.
8 mm
Hold frame securely then tighten all six bolt sets
100% using spanner (P) & Allen key (H).
