IMPORTANT: Care should be taken when connecting electrical items. If you are in any doubt about the connections
please consult an approved electrician. If you still have a problem please contact your retailer for advice.
IMPORTANT POWER INFORMATION
Before fixing the mattress baseboards to the bed, please follow the instructions below:
Plug in the main power supply lead supplied with your bed; this is packedi inside the TV footboard Pack 2.
It is essential that this power lead is connected to an earthed socket be it a wall socket or extension lead - otherwise there is risk
of damage or even electric-shock.
The wall socket providing the power must be accessible at all times in case you need to switch off the electric supply.
Power cable supplied with this bed or other approved mains powered extension leads used to power your equipment must not be
placed where they can be walked on - this is dangerous and could lead to accidents.
Power outlets, extension leads or adapters must not be overloaded beyond their limit - this can result in fire or electric shock.
During an electrical or lightening storm - disconnect the power completely as a precaution.
Always un-plug the power when going on holiday or when the bed is not used for an extended period.
If you have young children in the home always disconnect the power at the wall socket for extra safety.
Do not interfere with or modify any cables already fitted and do not add any media cables unless they are routed through the
ducts as shown. All leads must be tightly connected to back of TV, never hanging loose where they can get trapped.
Never touch moving parts or any part of the equipment - if something needs to be checked, disconnect the power first.
Do not insert anything into the footboard as this could seriously damage the TV and/or the TV lifting equipment and could, if done
carelessly, cause serious damage or injury.
If the equipment doesn't operate normally or if there is any unusual noises, disconnect the powera nd contact your retailer for
advice.
TELEVISION INFORMATION
Please follow the assembly steps for initial operation of the TV Lift, your TV and any media cables required.
Push the television power plug (supplied with your own TV), into it's own special socket which is on the face of the footboard
clearly shown in the instructions. For safety and to prevent overheating, this socket is only to be used for the television as it does
not have a constant power supply.
Raise the TV Lift by pressing the UP button of the remote control.
If required you can connect media cables the television ports.
Please use the cable clips & cable ties to make certain there are no loose wires to snag or get trapped.
The television can now be operated following the TV User Guide.
When finished viewing, lower the television back into the footboard by pressing the DOWN button of the remote control.
For safety and to stop any overheating, power to the television is switched off when lift reaches the bottom rest position.
When the UP button is pressed - the TV Lifting Column rises and power is turned back on automatically.
TROUBLE SHOOTING
o If your equipment does not operate please check all the electrical connections to the wall socket and check that
electricity is reaching the main power input plug bringing power to the footboard.
o Make sure that the TV is switched on - but note that the television will only work when it is in the up position.
o Check that the remote control has not lost its connection with the TV Lift - please see pairing instructions on Page (1).
Double: 670 x 53 x 9
King:
Super King:
Double: 2200 x 1430 x 1155
King: 2300 x 1580 x 1155
Super King: 2300 x 1880 x 1155
Internal Dimensions
(LWH mm)
Double:
King:
Super King:
Distance between slats (mm)
Double: 72
King & Super King: 70
Ottoman Piston Rating
Double & King:
800N
Super King:
900N
Technical Specifications
Max TV Size: 980 x 570 x 85
(WHDmm)

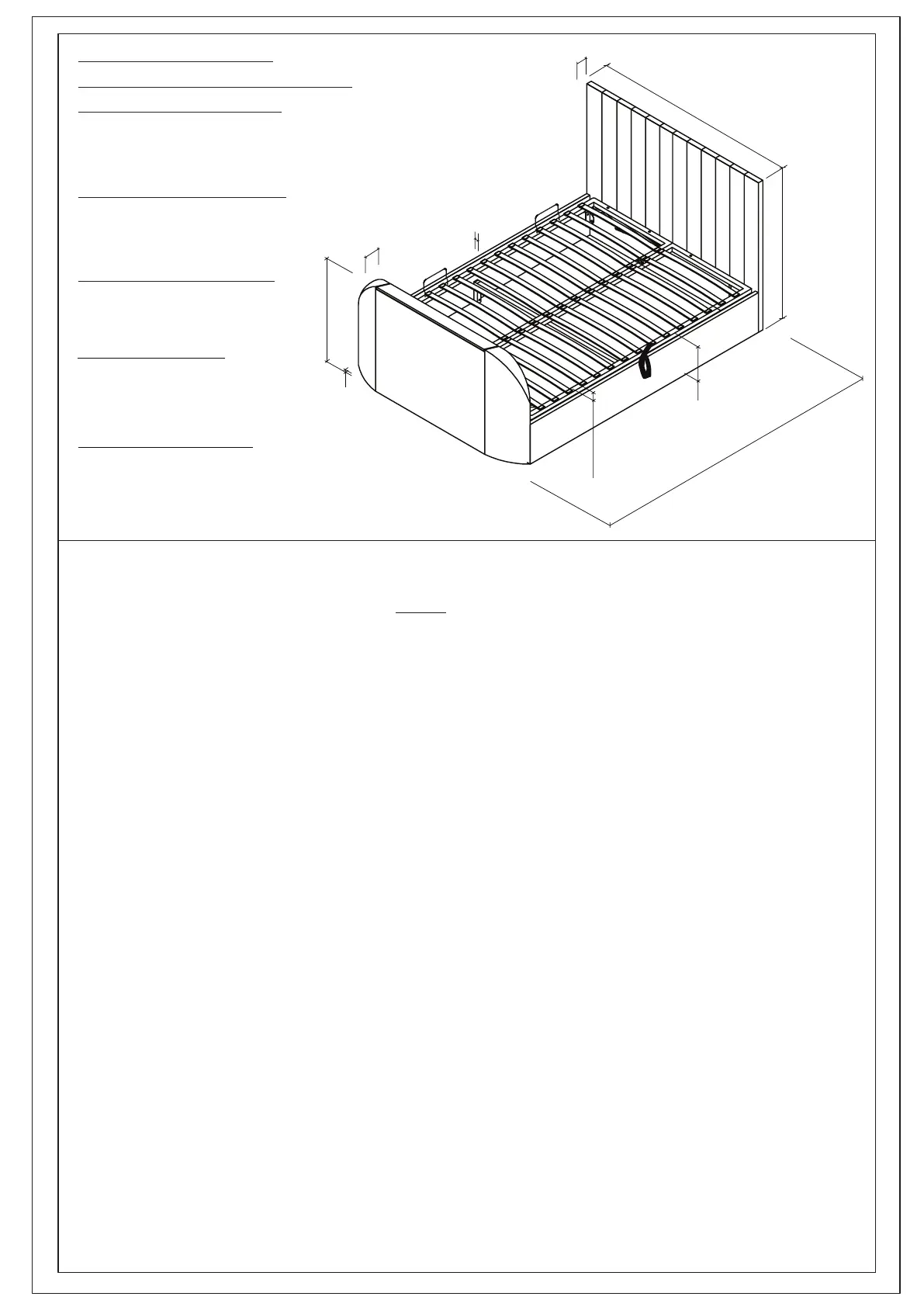

Overall Dimensions (LWH mm)
Slat Dimensions (mm)
745 x 53 x 9
595 x 53 x 9
1930 x 1380 x 250
2030 x 1530 x 250
2030 x 1830 x 250
