Page 3 of 16

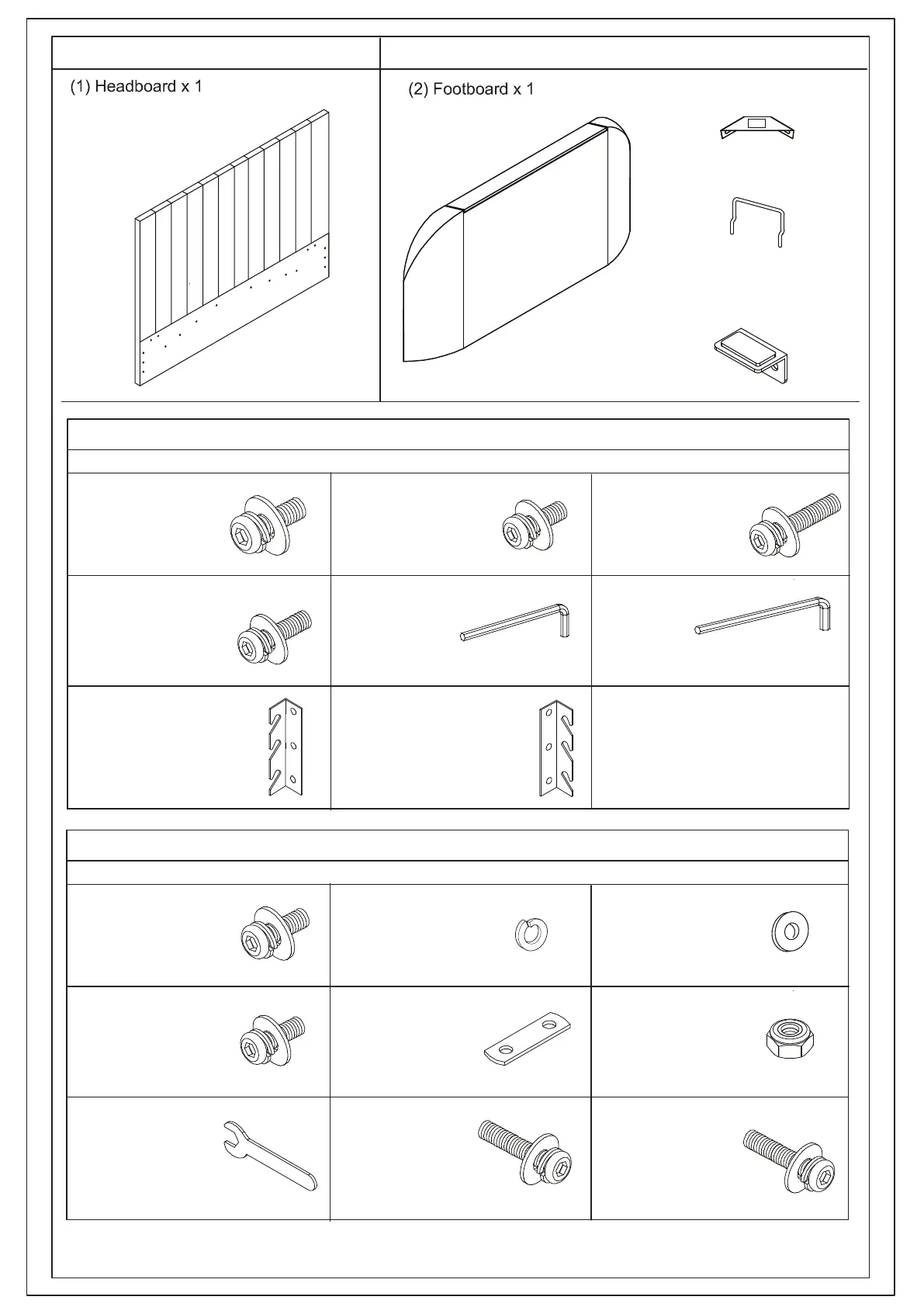

Components Packed in carton 1
Components Packed in carton 2
Angle bracket - LH Hooks Angle bracket - RH Hooks
Bolt sets (M8x35mm) for
fitting side rails (3) to
headboard & footboard
(1&2)
Bolt sets (M8x35mm) for
fitting lift mechanism to
footboard (2)
Bolt sets (M8x65mm) for
fitting lift mechanism to
headboard (1)
Bolt sets (M8x50mm) for
fitting metal slat frame to
lift mechanism (7&8)
Bolt sets (M8x20mm) for
fitting corner brackets L&R
Allen key for M6 bolts Allen key for M8 bolts
HARDWARE FOR ASSEMBLING THE BED
A x12
E x4
Bolt sets (M6x45mm) for
fitting ‘U’ shape cross
bar to side rails
F x12
Bolt sets (M6x20mm) for
fitting brackets (6&13) to
side rails
G x1 H x1
D x12
L x2 M x2
HARDWARE FOR ASSEMBLING THE BED - PACKED IN CARTON 2
M8 Spring Washer M8 Flat Washer
Spanner for flanged
M8 lock-nuts
Metal connection plate
Flanged M8 lock-nuts
HARDWARE FOR ASSEMBLING THE METAL SLAT FRAME
A x4 C x6
N x2 O x10
B x6
P x1
Q x6
R x4
HARDWARE FOR ASSEMBLING THE METAL SLAT FRAME - PACKED IN CARTON 2
(6) Angled
corner bracket x2
(11) Mattress Stopper x2
(13) Support bracket x2
Bolt sets (M8x20mm) for
fitting metal connection plate
D x4
