TVS Jupiter ZX User Manual

60
1. ‘TVS intelliGO’ switch
To activate the ‘TVS intelliGO’ system, set the intelliGo
switch to ‘ ’ position. The intelliGo indicator ’ ’
of the speedometer glows for 2 seconds.
To deactivate ‘TVS intelliGO’ system, set the intelliGo
switch to ‘ ’ position.

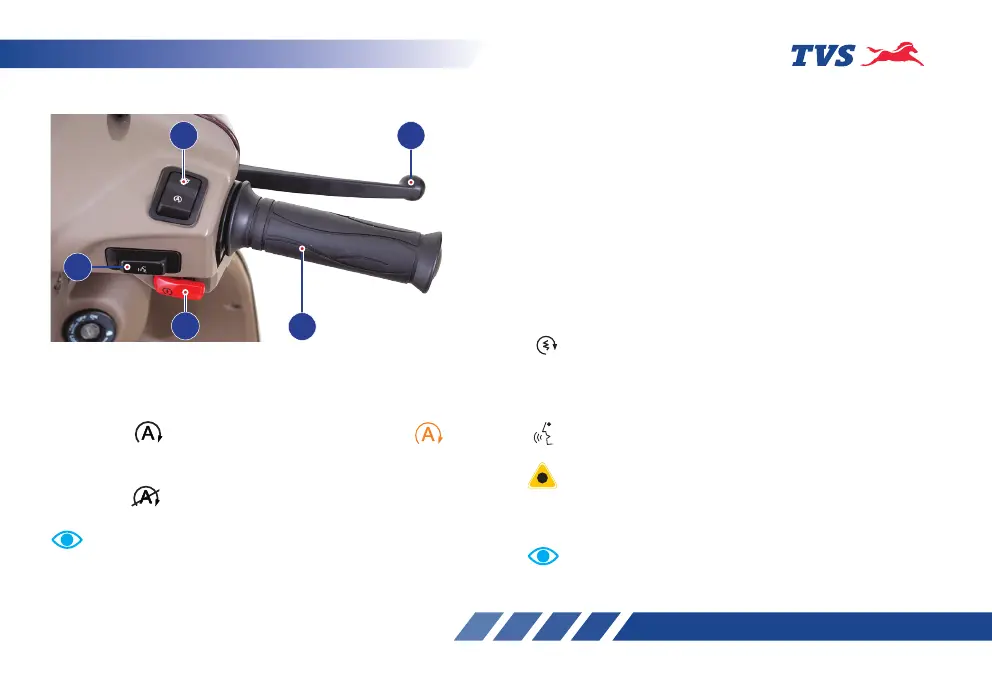

HANDLE BAR RIGHT SIDE
Caution
It is not recommended to add any additional throttle grip
(cover).
2. Right hand brake lever
Front brake system can be operated by pressing the
right hand brake lever gently towards the throttle
grip. The brake lamp glows on application of either
right hand or left hand brake lever.
3. Throttle grip
Engine speed is controlled by the rotation of the
throttle grip. Twist it towards you to increase the
engine speed and twist it away from you or release it
to decrease the engine speed.
4. Electric starter switch
Retract the side stand and press the starter switch
‘ ’ to start the engine electrically along with the
application of either front or rear brake.
5. Voice assist switch
The switch can be used to activate the voice assist
’ ‘.
Refer page No. 27 for intelliGo feature details.
Note
Before starting, ensure to retract the side stand.
Note
21
4
3
5

TVS Jupiter ZX Specifications

General

Engine Capacity	109.7 cc
Front Brake	Drum
Rear Brake	Drum
Kerb Weight	109 kg
Front Suspension	Telescopic
Tyre Type	Tubeless
Engine Type	Single Cylinder, 4 Stroke, Air Cooled
Transmission	CVT
Tyre Size (Front)	90/90-12
Tyre Size (Rear)	90/90-12
Length	1834 mm
Height	1115 mm
Seat Height	765 mm
Ground Clearance	150 mm
Wheelbase	1275 mm
Maximum Torque	8.4 Nm @ 5000 rpm
Brakes	Drum
Rear Suspension	Hydraulic
Starting Method	Electric Start
Max Torque	8.4 Nm @ 5000 rpm
Wheel Size	12 inches
