86
However, if cam lever adjustment goes beyond
certain range, then index the cam lever to next slot
(serration tooth) with the help of the nearest TVS
Motor Company Authorised Main Dealer / Authorised
Dealer to utilize remaining shoe life until wear limit.

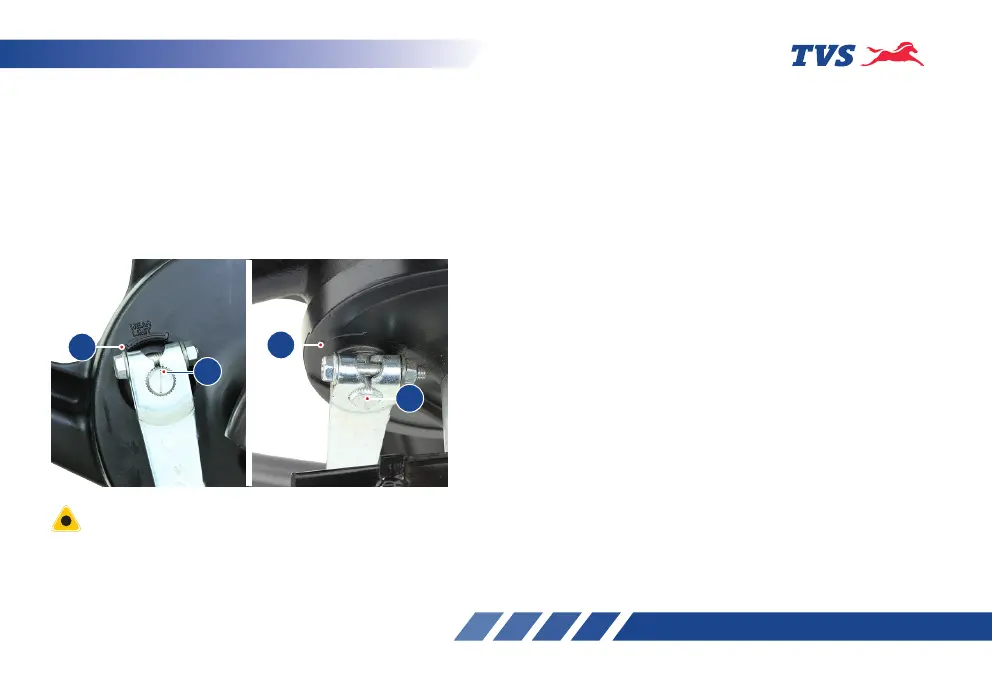

Brake shoe wear indicator
When the brake is applied, wear limit index mark (A)
on both front and rear brake cam should be within the
range of wear limit indicator (B) on panel assembly.
Incase the index mark (A) is going beyond the wear
limit (B), replace the brake shoes as a set, with the
help of the nearest TVS Motor Company Authorised
Main Dealer / Authorised Dealer.
B
B
A
A
Replace the brake shoes as a set, if wear limit index mark
(A) exceeds beyond the range of wear limit indicator (B)
even after indexing the lever.
