Always make sure that whenever the wheel is removed,
axle nut is properly re-tightened to the specified torque.

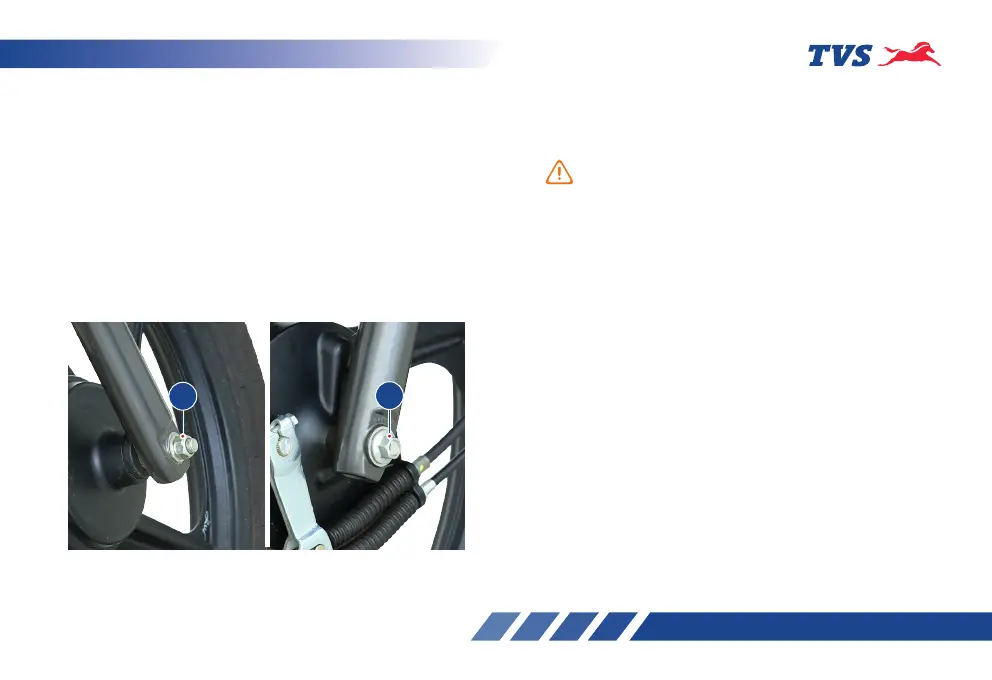

FRONT WHEEL REMOVAL AND REASSEMBLY
(Drum type)
1. Remove the axle nut (1) along with a washer.
2. Pull out the axle (2) along with a washer.
3. Take out a spacer from right side of the wheel.
4. Place a support below the frame to prevent the
vehicle from falling and lift the vehicle up.
5. Dislocate the wheel assembly along with brake
panel from the front fork. Separate the brake
panel from the wheel and take out the wheel.
6. Reverse the procedure for reassembling. While
reassembling ensure to locate the lug on fork
leg L to the slot in the brake panel.
