DRAIN PUMP REMOVAL INSTRUCTIONS
16
Figure 20
Unscrew the leveling leg so
the end of the threads is ush
with the top of the nut insert.
Remove these 4 hose
clamps, then remove
the 3 tubes from the
drain pump
It may be necessary to disconnect
this electrical connection on factory
installed drain pumps
Drain pump
ground wire
connection
Drain Pump Removal Instructions:
1. Unplug ice machine from the electrical supply and re-
move the rear access cover from the ice machine. (See
page 6 for instructions).
2. Unscrew the leveling leg in the back corner until the
end of the threaded portion is ush with the threaded
nut insert in the base. (see Figure 20 ).
3. Unscrew the 4 hose clamps and remove the 3 hoses
from the front of the drain pump. (See Figure 20).
4. Rotate the drain pump and remove from the ice ma-
chine, (See Figure 19). It may be necessary to discon-
nect the ground wire connection in the back ange of
the cabinet. (See Figure 20).
5. Disconnect the ice machine power cord from the drain
pump (See Figure 21).
6. To drain water from the pump follow step 14 and 15 on
page 16.
7. Installation of drain pump is reverse of this procedure.

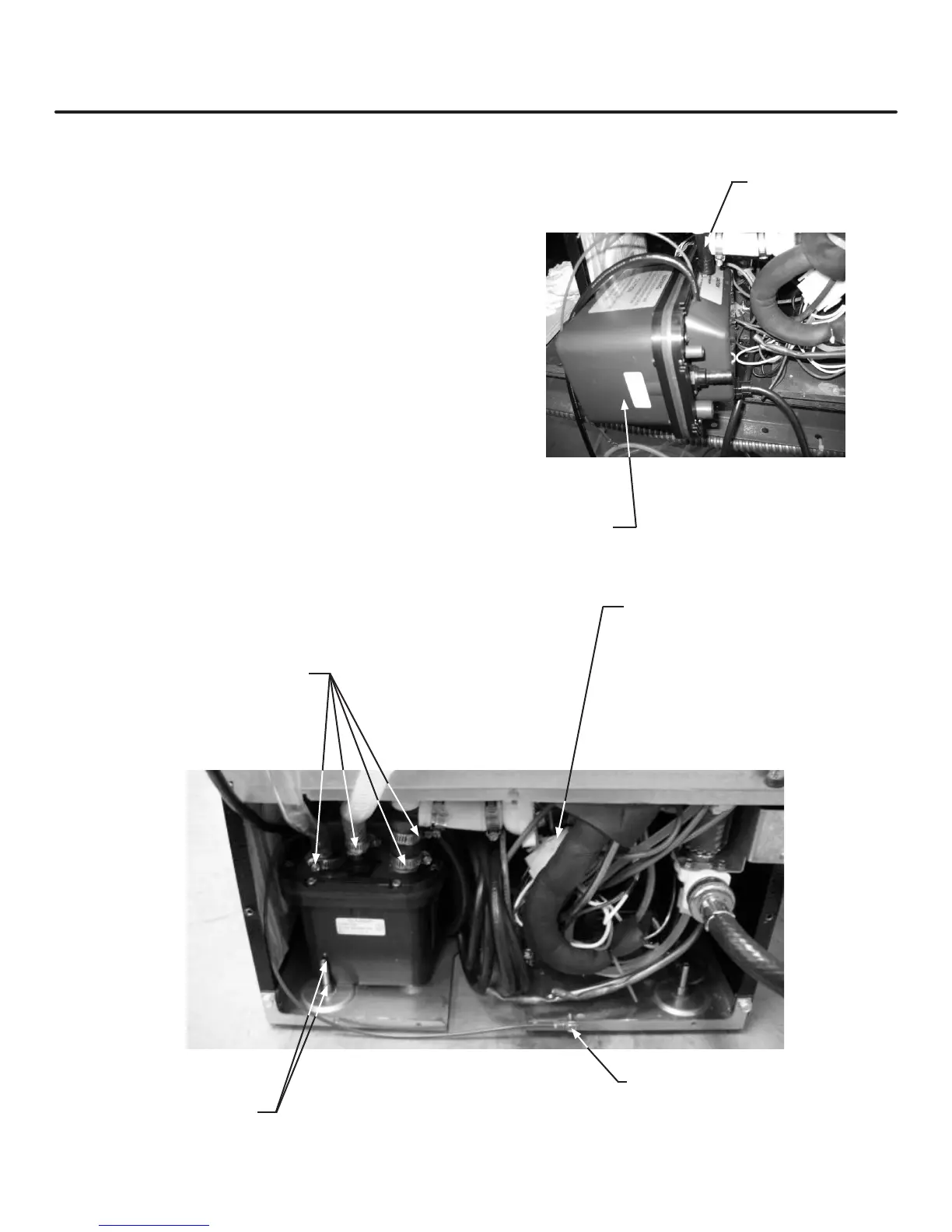

Figure 19
Rotate drain pump
and remove from
back of ice
machine.
Drain valve
