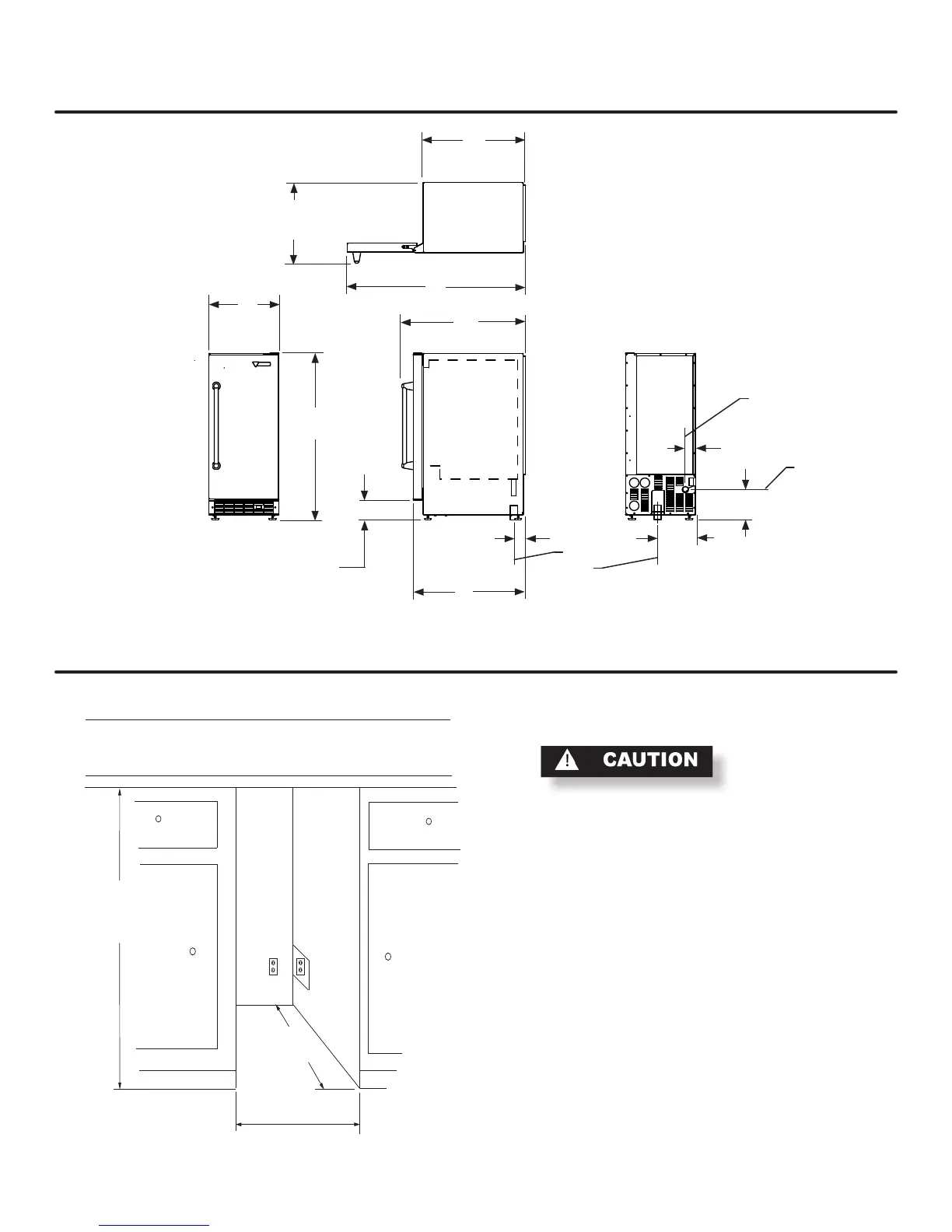

DIMENSIONS FOR TEIM15-E
* Depth dimension may vary depending on
each individual installation.
Electrical Requirements: A grounded 115 volt, 15
amp dedicated circuit is required. A GFCI recep-
tacle may be required for outdoor models.
Power outlet can be located in the back wall behind
the ice machine. Add 1” to depth for thickness of
plug, or recess outlet 1” into the wall. Power outlet
can also be installed in adjacent cabinetry with a
cutout for routing of power cord. Follow all local
building codes when installing electrical and the ice
machine.
Product weight = 100 lbs. (45.5 kg.)
8
** Minimum rough in opening required is to be
larger than the adjusted height of the cabinet.
15” (38.1 cm)
*24” (61 cm)
standard cabinet
depth
** 34” to 35”
(86.4 to 88.9cm)
21
1
⁄2”
(54.6 cm)
14
7
⁄8”
(37.8 cm)
37
1
⁄16”
(95.4 cm)
26
3
⁄8”
(67 cm)
17
1
⁄2”
(44.5 cm)
CL water supply
CL water supply
2” (5.1 cm)
6” (15.2 cm)
8”
(20.3 cm)
CL gravity
drain
2” (5.1 cm)
23
5
⁄8”
(60 cm)
33
3
⁄4” to 34
3
⁄4”
(85.7 to 88.3 cm)
3” to 4”
(7.6 to 8.8 cm)
ROUGH IN OPENING DIMENSIONS, FOR TEIM15-E
