INSTALLING THE ANTI TIP DEVICE
FOR FREESTANDING INSTALLATIONS
21
1
⁄2"
(54.6 cm)
"V" notches
in bracket
"V" notches
in bracket

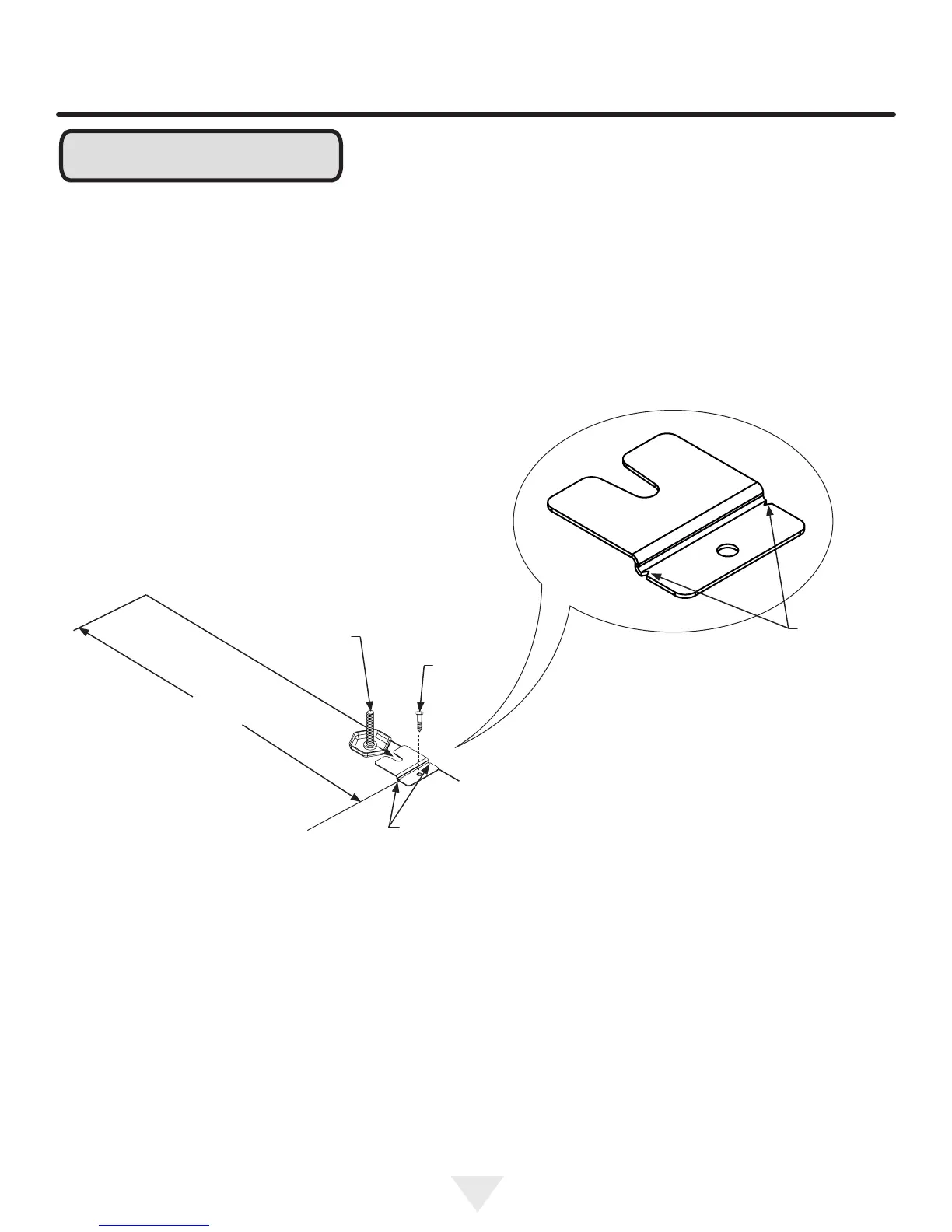

Figure 8
Rear of cabinet line
Figure 8a
Side of cabinet line
Front of cabinet line
Screw
Rear Leveling leg
NOTE
When the oor mounted anti-tip bracket is used the mini-
mum adjusted height of the cabinet is increased by
3
⁄8" (9 mm).
