TXR 325D - HV Transformer and Console - Illustration

Standard Frequency Series Generators
Pre-Installation
3
M-2008-7-12

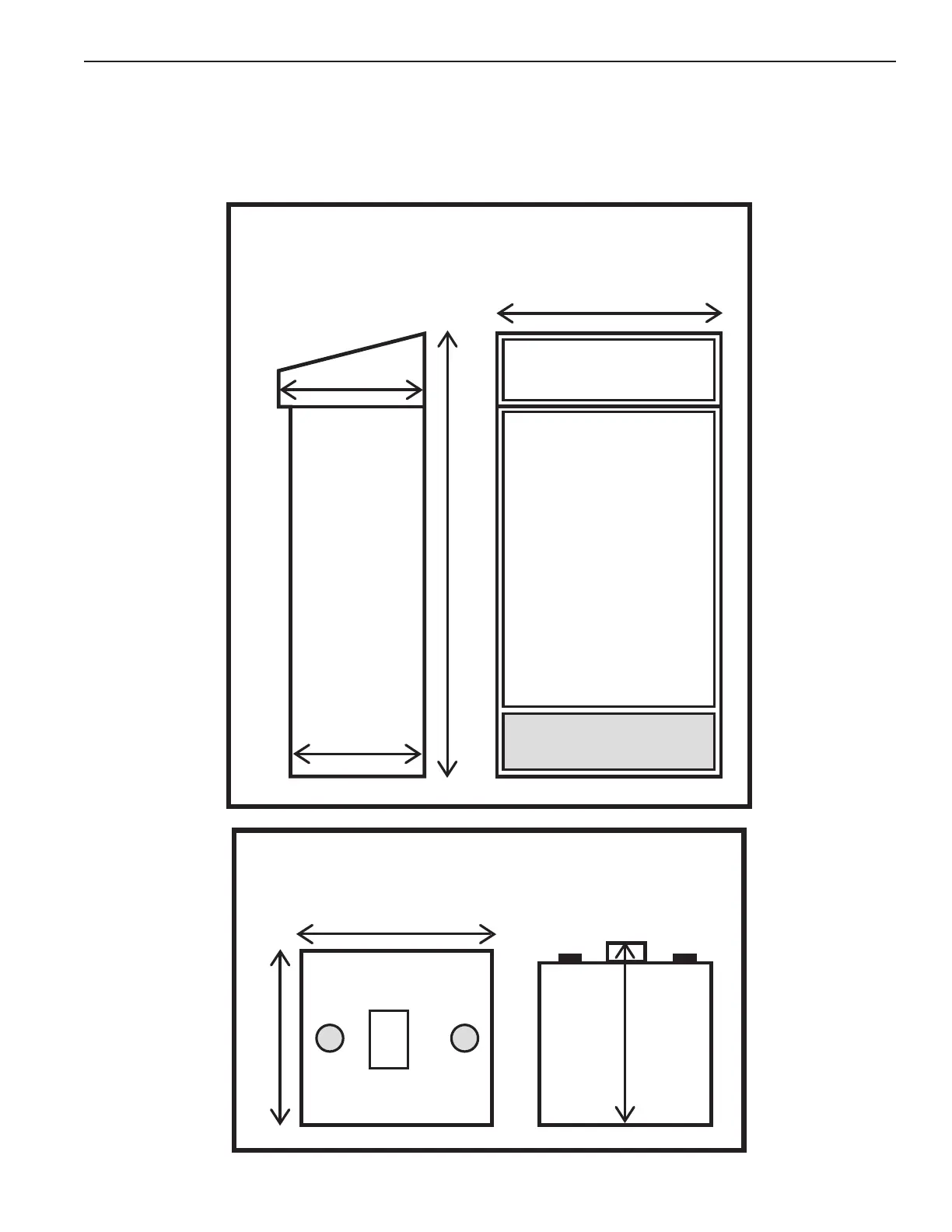

2.4 HV Transformer and Console — Illustration
Illustration 2-1
HV Transformer And Console
TXR 325-1, TXR 625-1
TRANSFORMER
SIDE VIEWTOP VIEW
13.8" 351mm
20" 508mm
22" 559mm
BACK
VIEW
POWER INLET
STANDARD FREQUENCY CONTROL
SIDE
VIEW
12" 305mm
37" 941mm
11" 279mm
18" 457mm
