TXR 325D - SECTION 3 OPERATING CONTROLS

Standard Frequency Series Generators
Operation
8
M-2008-7-14
SECTION 3
OPERATING CONTROLS
All controls, indicators and displays located on the Control Console are ergonomically positioned depending
upon their functions. All steps contained in this section require the use of Illustration 3-1.
Use the operating controls in the manner described in this manual, any
other non-indicated combination may cause an incorrect operation of the
equipment.
Spinning Dials or not correctly seating selectors will affect the operation
of this equipment

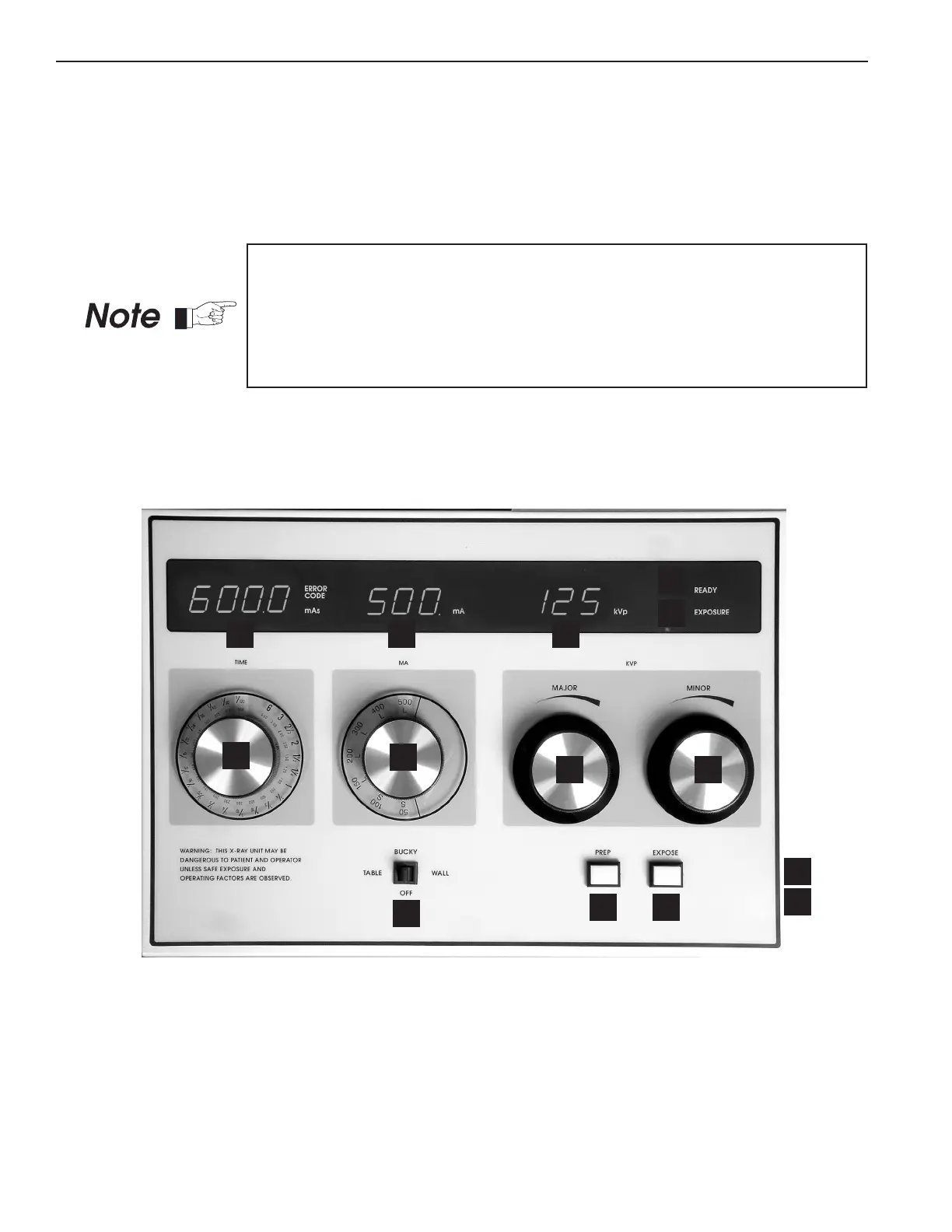

Illustration 3-1.
RAD Console
NOTICE:Model325and425Seriesindicates50-400ma•525Seriesindicates50-500ma
1. Power On 8. TIME Selector
2. Power Off 9. MA/FOCAL SPOT Selector
3. MAS/ERROR Indicators 10. KVP MAJOR Selector
4. MA Indicator 11. KVP MINOR Selector
5. KVP Indicator 12. BUCKY Selector
6. READY Indicator 13. PREP Switch
7. EXPOSURE Indicator 14. EXPOSE Switch
1413
12
3 4 5
6
7
10 11
9
8
1
2
