2. LINKAGE (INTERNAL)
1) Before installing the linkage, apply grease to relayed drive parts.
2) Drive in the roll pin into the linkage pin through the rod and lock the pin.
3) Be sure not to over operate within specified spool stroke(7mm between up and down at neutral
position)
9-22

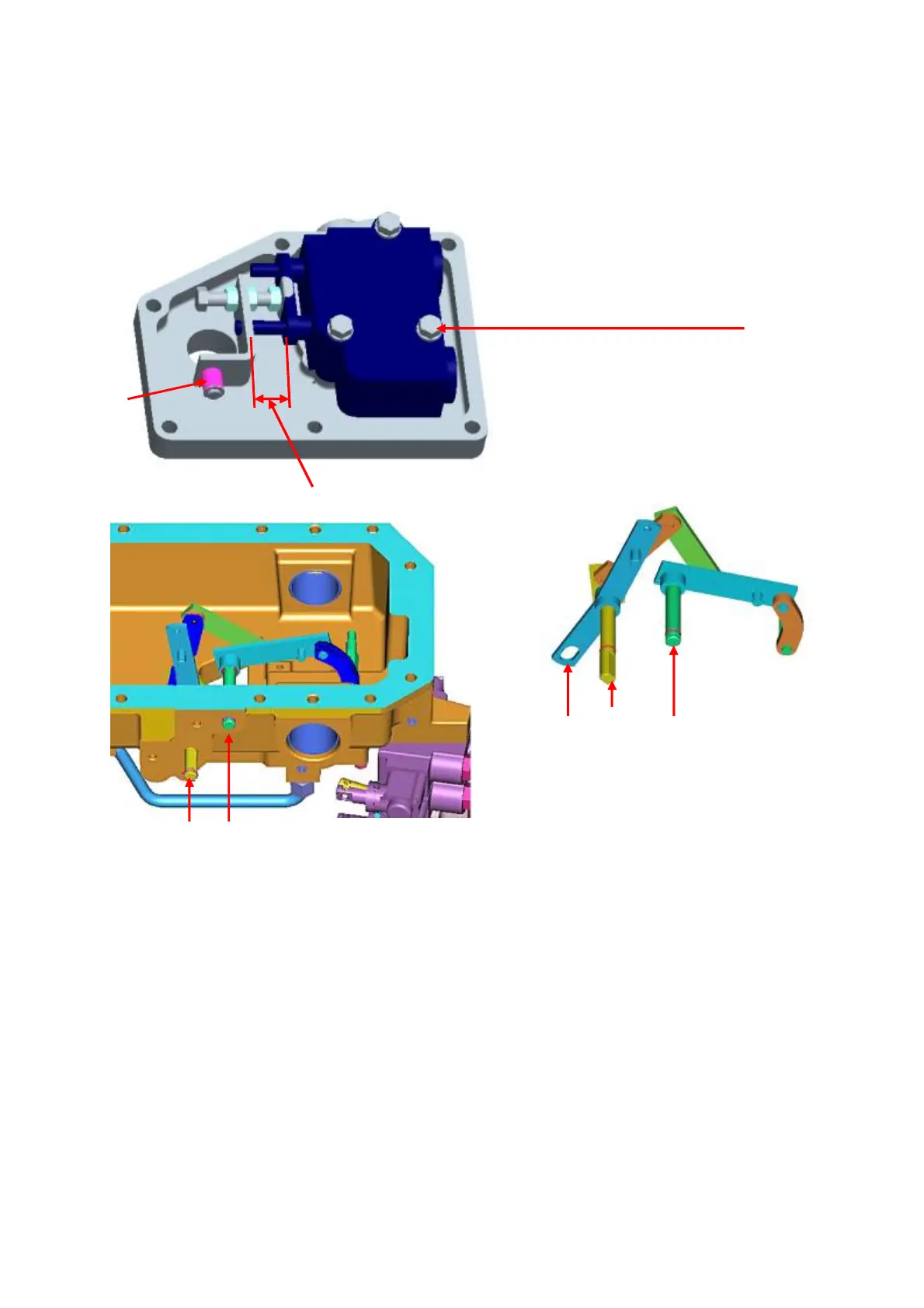

Fig.9-40 Linkage (internal)
24 mm
Tightening torque : 1.5∼3.0kgf-m
a
a
b
c
b c
