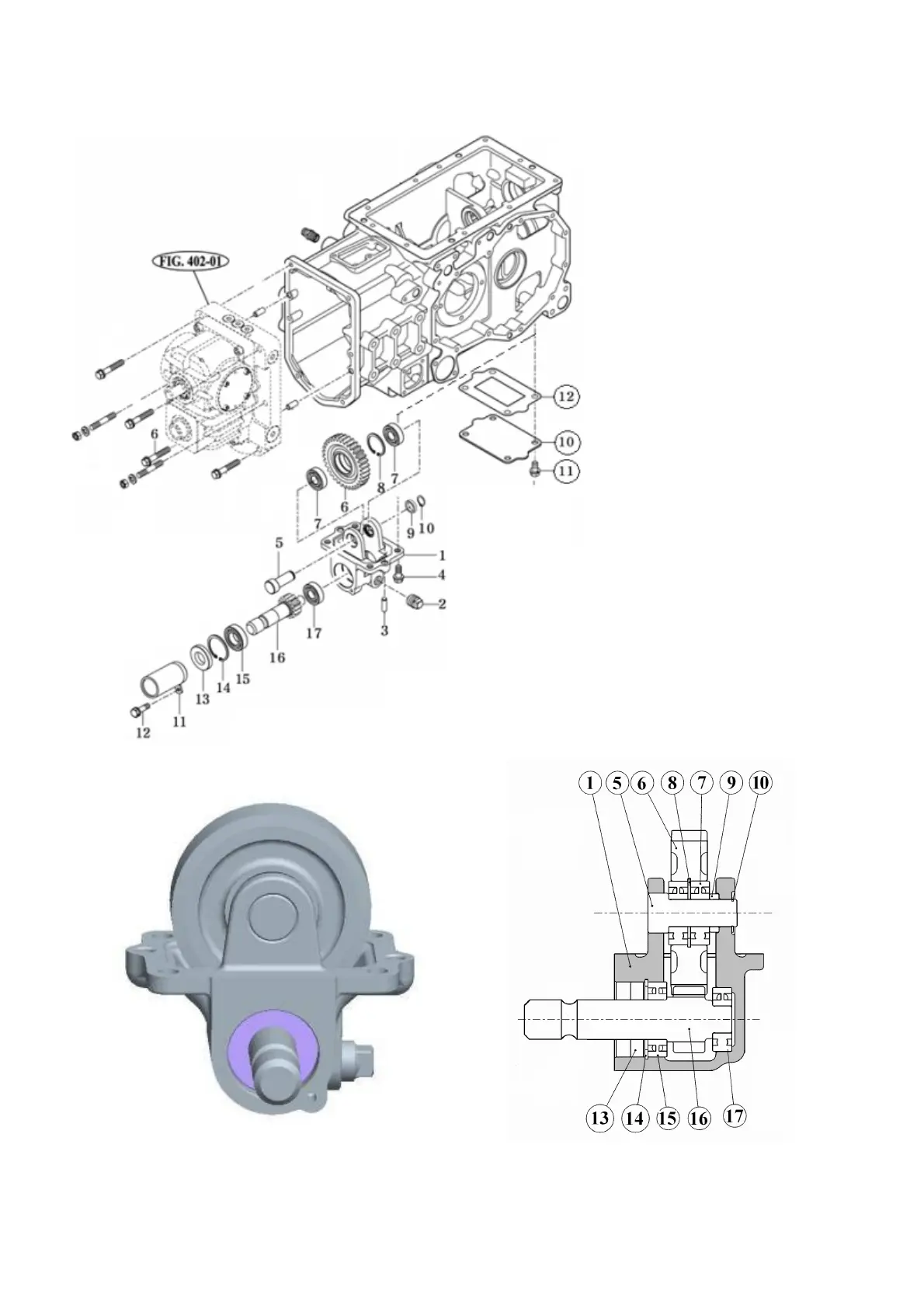

3) MID PTO STOPPER ASSEMBLY
1.CASE , MID PTO
2.PLUG , SQUARE
3.PIN , PARALLEL/A
4.BOLT , HEX/S
5.SHAFT , MID PTO COUNT
6.GEAR , SPUR 32T
7.BEARING , BALL
8.C-RING , HOLE
9.COLLAR , 17X24X6
10.C-RING , SHAFT
11.CAP COMP , MID PTO
SHAFT
12.BOLT , HEX /S
13.SEAL , OIL/D
14.C-RING , HOLE
15.BEARING , BALL
16.SHAFT , MID PTO
17.BEARING , BALL
5-13
Fig.5-19
Fig.5-20
