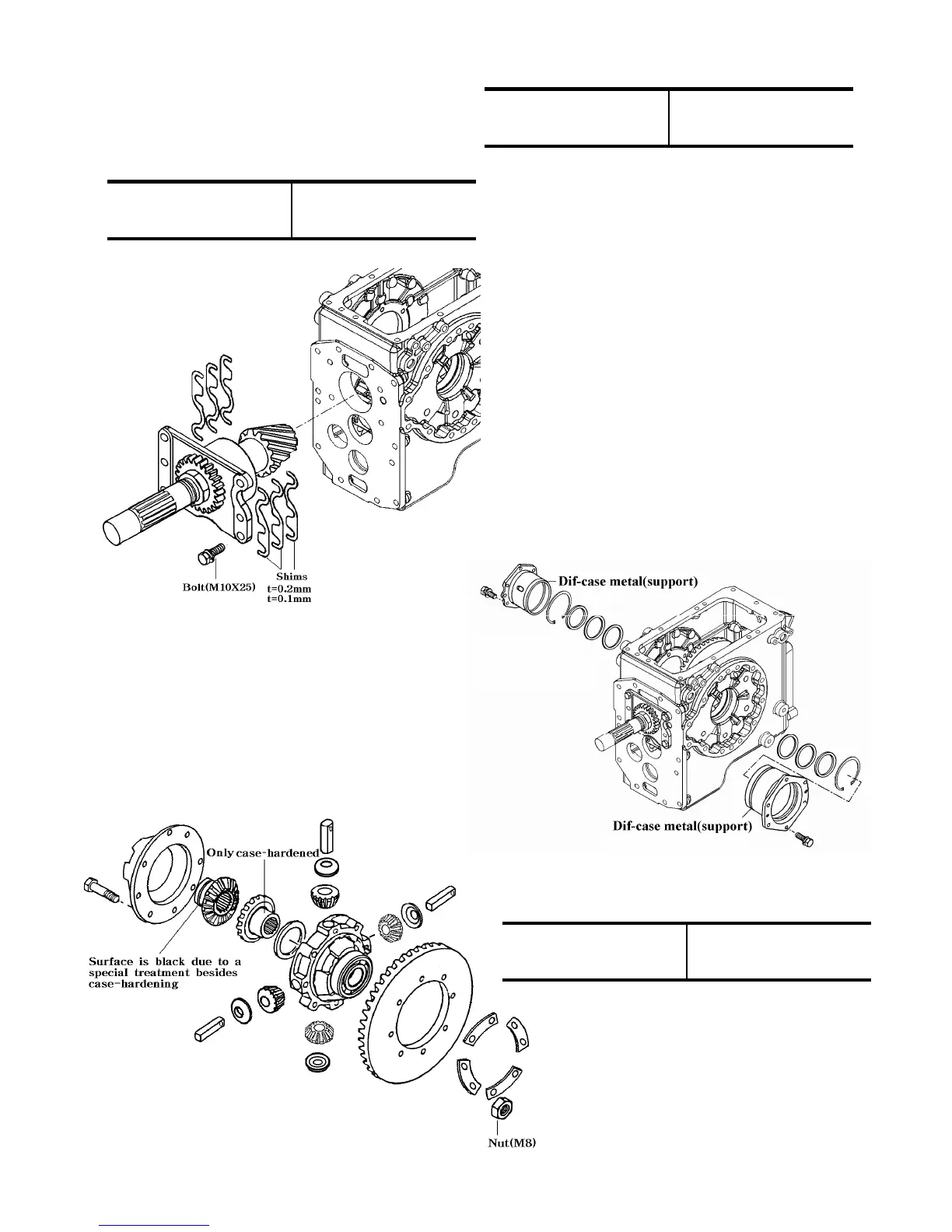

When the drive pinion or the ring gear has been
replaced, the proper number of shims to be
installed should be determined based upon the
following procedure:
Drive pinion metal
tightening torque
5.5-7 Kgf.m
(39.8-69 ft.lbs)
Ring gear tightening
torque
9.0-11 Kgf.m
(39.8-69 ft.lbs)
Note:
- As shown in Fig5-34,there are two kinds of
differential side gears.Although are case
hardened,the one installed on the side of the
diff-lock is treated further and colored black.
Take care not to mix them when assembling.
- Apply multi-purpose,quality grease to the
parts mentioned below:
• Tooth surfaces of dif-pinions and dif-side
gears
• Friction surfaces of dif-pinion shafts and
dif-pinions.
f.Backlash between dif-pinion and dif-side
gear should be within as range of 0.1 to
0.2mm(0.004-0.008 in) and these parts
should turn smoothly.
Fig.5-34
Note:
When assembling without replacing the pinion
gear and ring gear with new ones,provide the
same shimming thickness as that provided before
disassembly.
e. Install the differential gears.
Fig.5-35
g. Install the differential gear assembly.
Diff-case metal
tightening torque.
5.5-7 Kgf.m
(39.8-69 ft.lbs)
5-20
