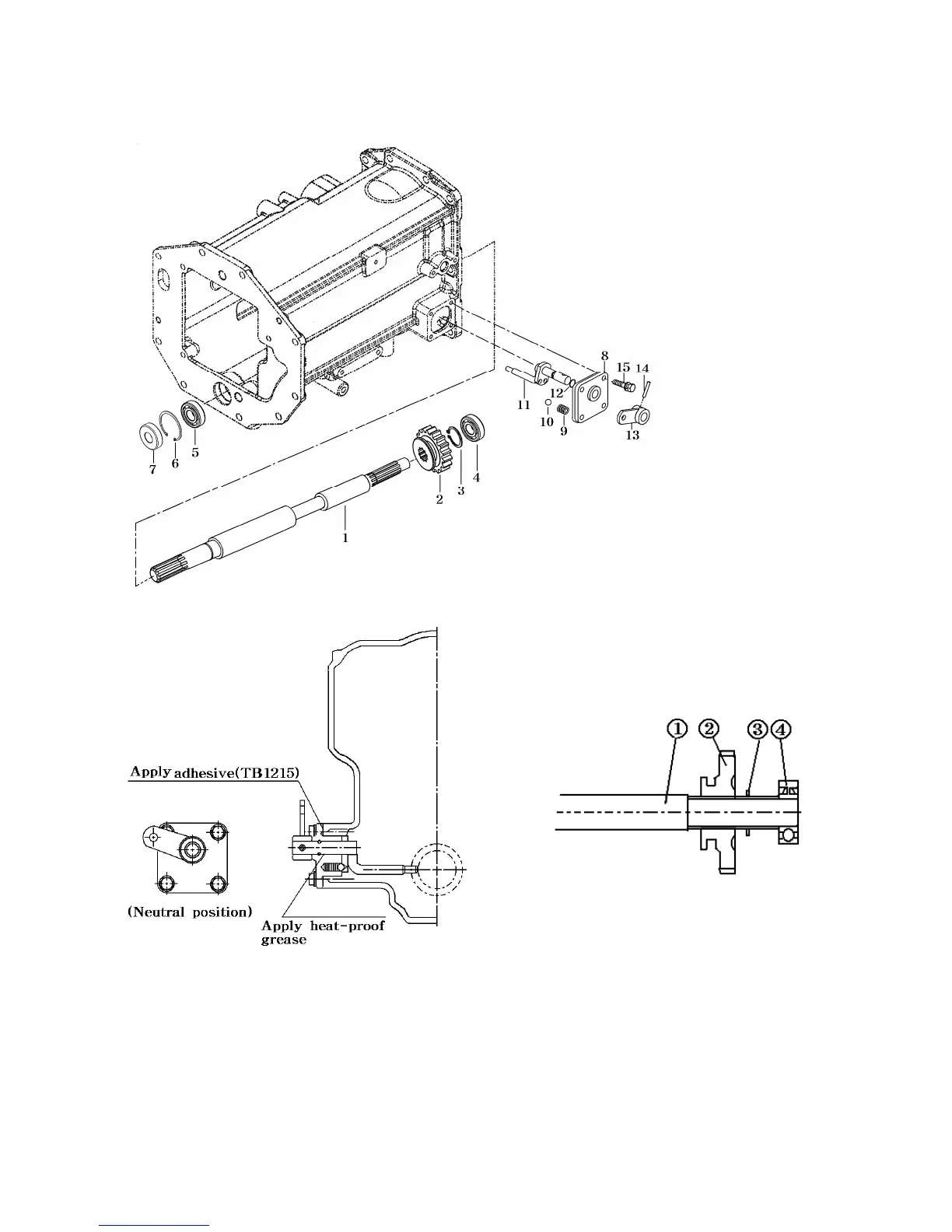

(3) Front drive change (4 WD shaft) mechanism
1.Shaft,4WD drive
2.Gear,spur 28T
3.C-ring(shaft)
4.Bearing,ball(6204)
5.Bearing,ball(6004)
6.C-ring(hole)
7.Oil seal
8.Boss
9.Spring, shifter
10.Ball steel
11.Arm comp
12.O-ring(P)
13.Arm comp,shift
14.pin
15.Bolt(M8X20)
Fig.5-43
5-26
Fig.5-44
