6) Drive pinion Sub assembly
1..Metal pinion
2.Taper roller bearing
3.pinion drive 10
4.Taper roller bearing
5.Gear spur 23T
6.Nut(M30X1.5)
7.Washer(28X46X03)
8.Needle bearing
9.gear spur 40T
10.Hub(28X51X59)
11.Snap ring (shaft)
12.Gear spur 33T
13.gear helical 22T
14.needle bearing
15.Washer(20X34X03)
16.Ball bearing
17.Washer(20X30X1.8)
18.Snap ring (shaft)
Fig.5-56
5-32

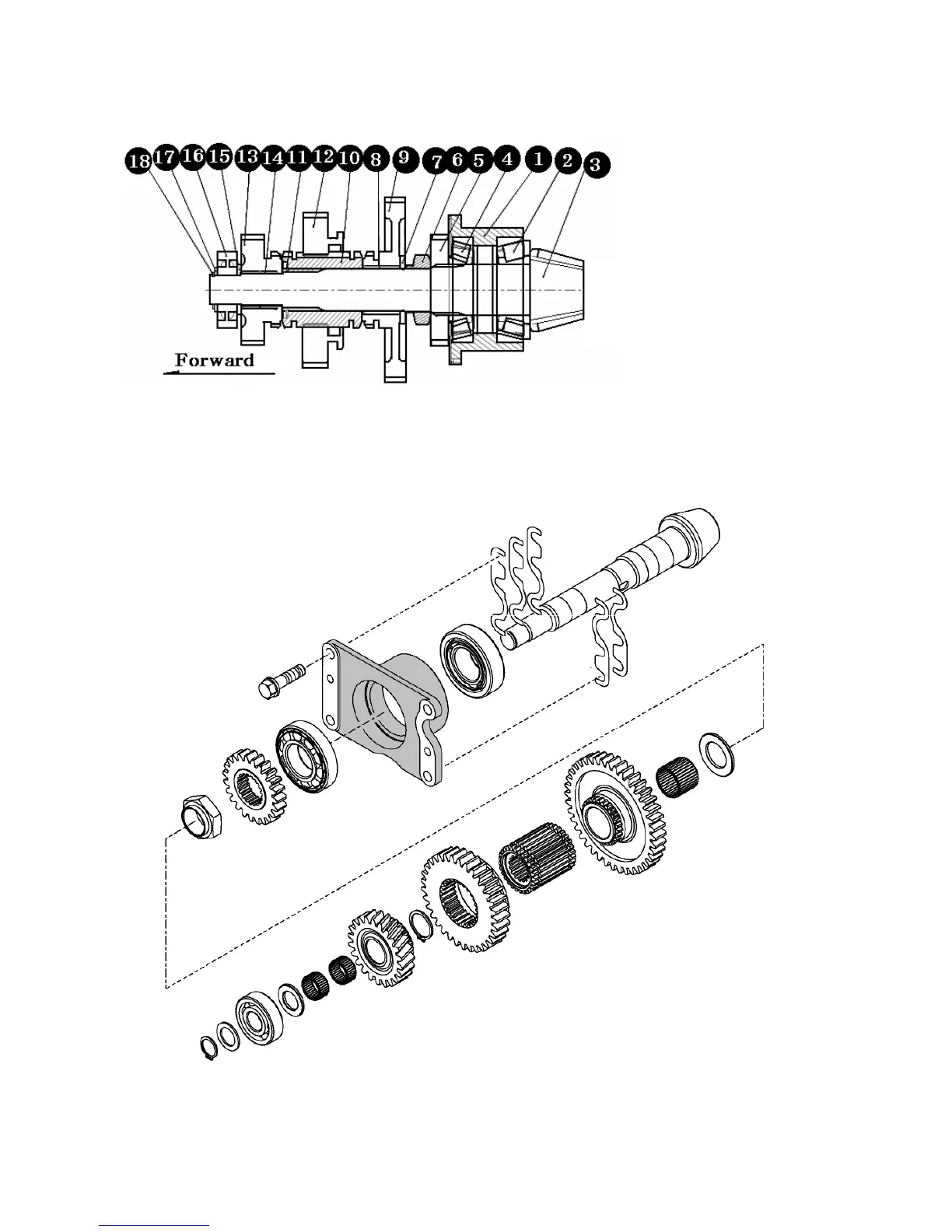

Fig: Drive pinion and related parts
