TYM T353HST - Page 132

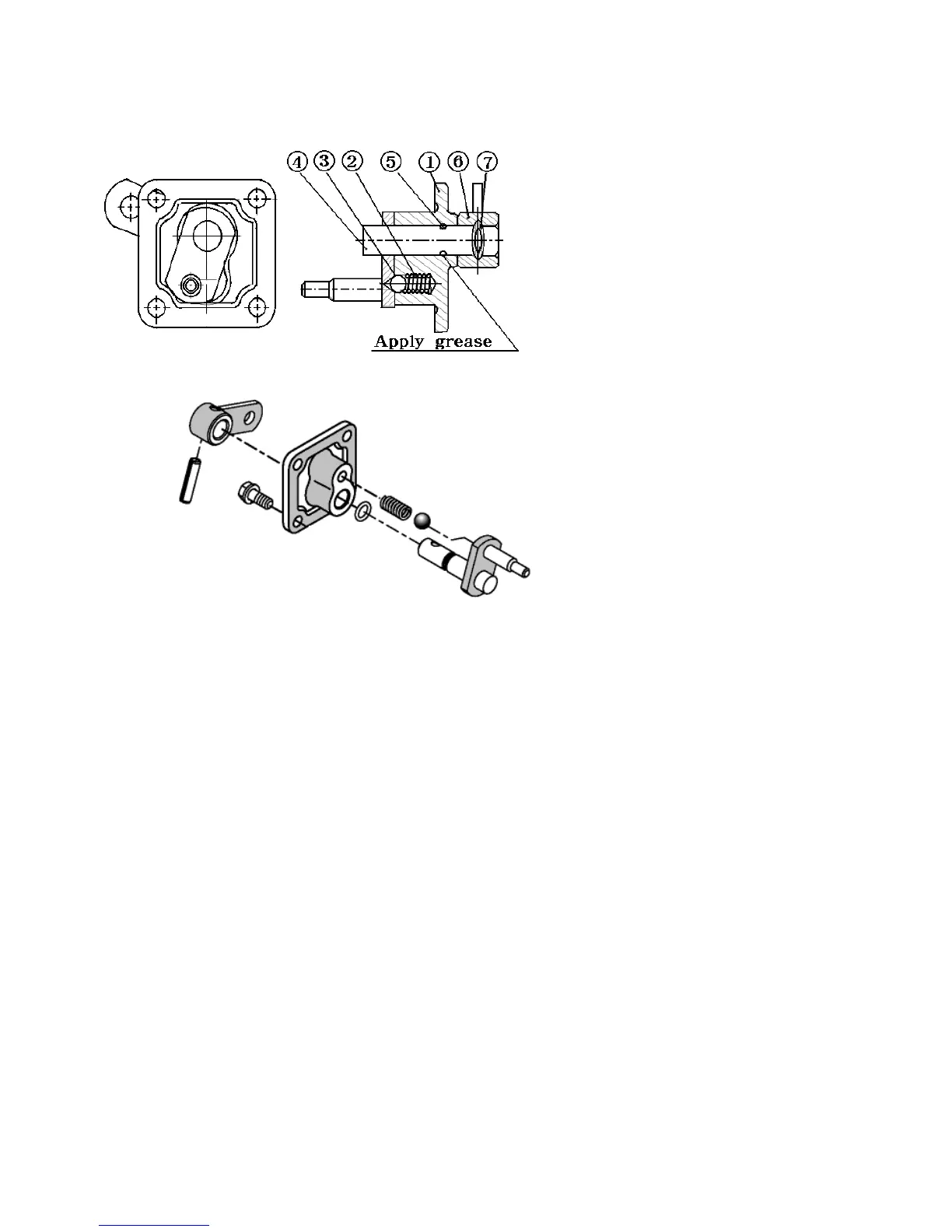

(5-5) MID PTO shift metal SUB
1.Boss
2. Spring shift
3.Steel ball
4.Arm comp
5.O-ring
6.Arm comp MID PTO shift
7.Spring pin
Fig.5-55
Note:
(1) When installing arm comp(6),take care not to mix the longer dimension .
(2) When installing the O-ring,take care not to damage it or allow it to fall.
(3) After installation,The Arm comp(shift) should slide with the designated grooves.
5-31
