TYM T353HST - Page 131

(5-2) MID PTO CASE SUB ASSY
Note:
When pushing the R.B.B’s(6203) into the CASE,be careful only to push their outer races.
(5-3) Gear (spur/25) sub assy.
1Gear,spur 25T
2.snap
-
ring(hole)

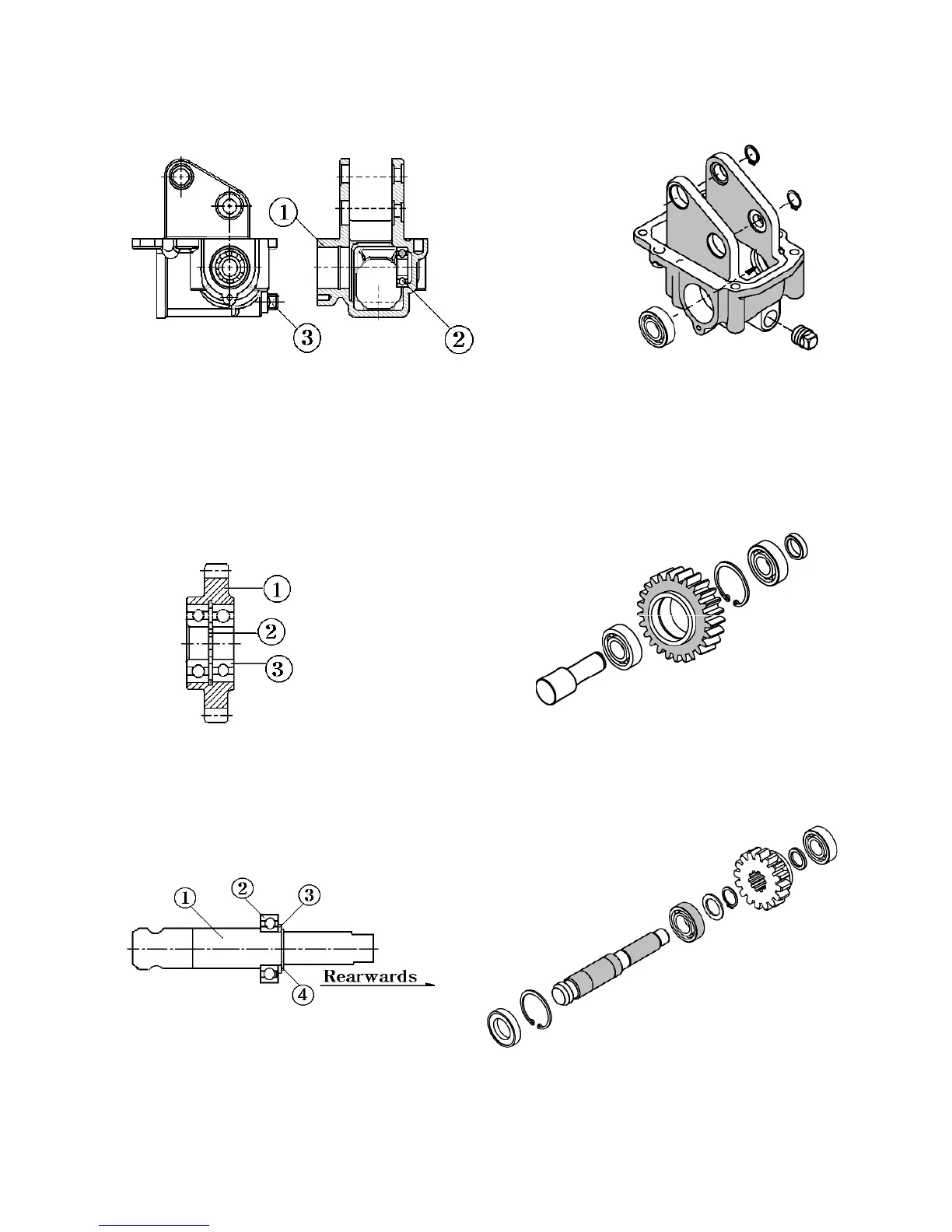

Fig.5-52
1.case MID PTO
2. Bearing,Ball(6203)
3. Plug
(5-4) MID PTO shaft sub
2.snap
-
ring(hole)
3.Bearing,Ball(6203)
Note:
When pushing the R.B.B’s(6203) into the gear,
be careful only to push their outer races.
Note:
-When pushing the R.B.B’s(6004) into the shaft,be careful only to push their outer races.
-The snap ring C should be securely seated in the groove and the press-processed side
turned towards the rearward side.
5-30
Fig.5-53
Fig.5-54
