TYM T353HST - Page 130

(5) MID PTO

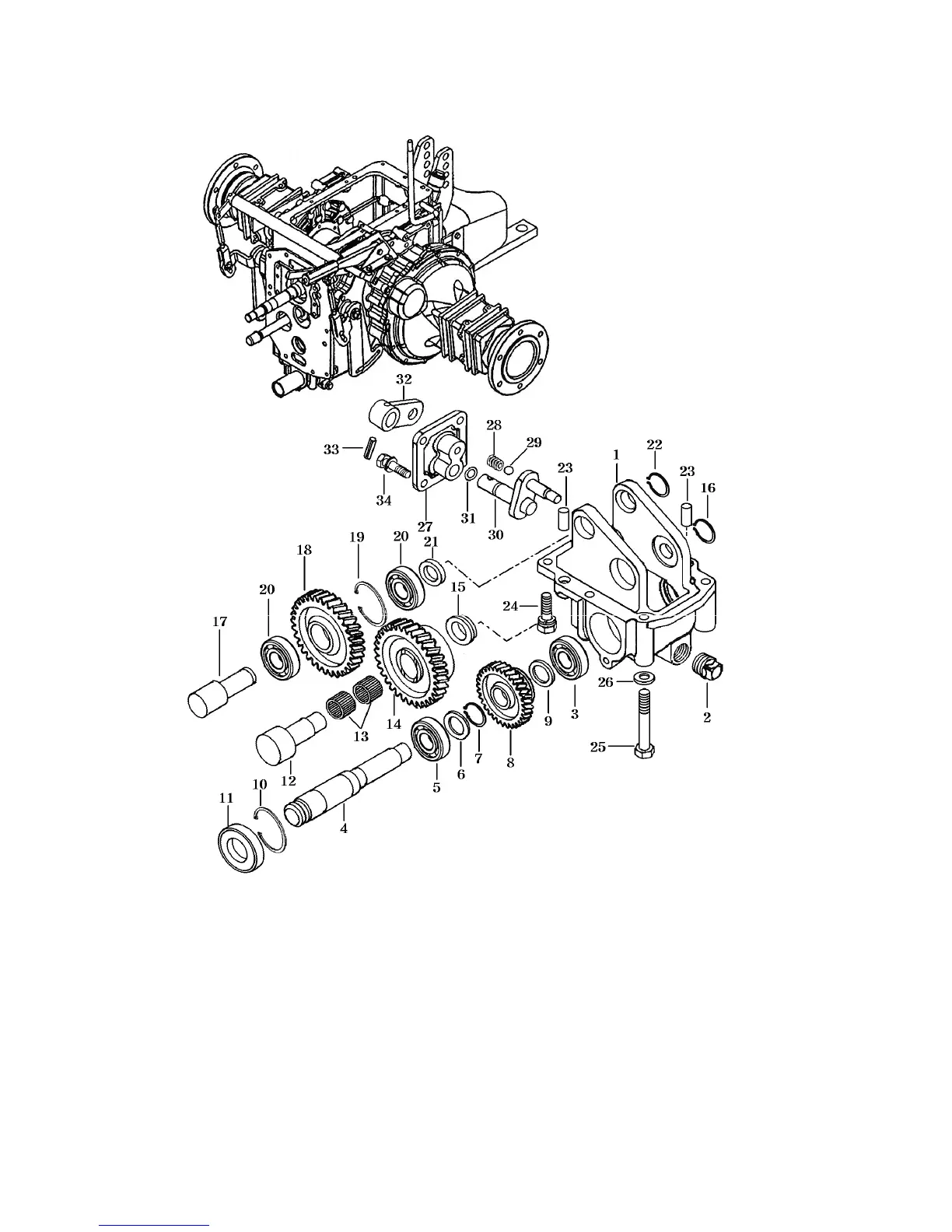

(5-1) MID PTO CASE ASSY
1. Case,Mid PTO
2. plug square.
3. Bearing ball(6203)
4. Shaft,MID PTO
5. Bearing ball(6004HL1)
6. Washer(20X30X1.8)
7. C-ring9shaft)
8. Gear,spur 16
9. Washer(17X25X3)
10. C-ring(hole)
11. Oil Seal
12.Counter Shaft 2,MID-PTO
13.needle roller bearing
(KT202417)
14.gear,spur 23-16
15.Spacer
16. C-ring
17. Counter shaft 1
18.Gear,spur 25
19.C-ring
20.Bearing ball
21.Collar(17X24X6)
22.C-ring
23. Pin
24.Bolt
25.Bolt
26.Washer
27.Boss
28.Spring,shifter
29.Ball,steel
30.Arm comp
31.O-ring
32. Arm comp(shifter)
33.Pin
34.Bolt(M8X20)
5-29
Fig.5-51
