TYM T353HST - Page 129

Note:
- When pushing the R.B.B’s(6305,6205) into the gear ,spur 12,be careful only to push their inner races.
- The snap ring C should be securely seated in the groove and the press-processed side turned towards
the outer side.
- Be sure not to mix different pairs of the gear(spur/14).
- Every time a gear is installed,its smooth rotation should be checked.
- REAR PTO counter shaft
- REAR PTO shaft

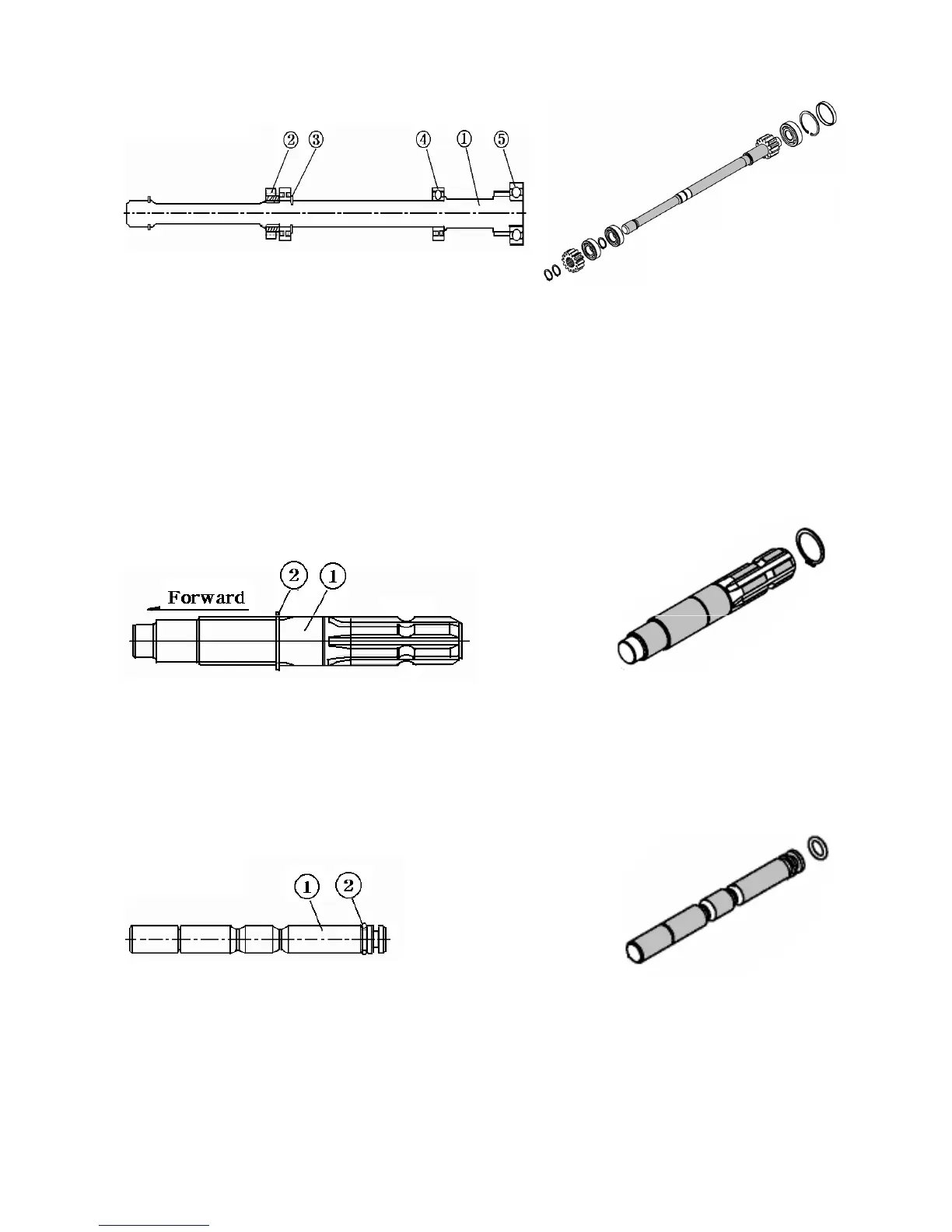

1.Gear,spur 12 2.Gear spur 14 3. Snap ring(shaft) 4. Ball bearing(6205) 5. Ball bearing(6305)
1.Shaft PTO
Fig.5-48
- REAR PTO shift stay
1.Shaft PTO
2.Snap ring
1.Stay PTO shift
2.O- ring
Note:
The snap ring C should be securely seated in the groove and the press-processed side
turned towards the outer side.
Note:
- When installing the O-ring to rear transmission case,take care not to damage it or allow to fall.
5-28
Fig.5-49
Fig.5-50
