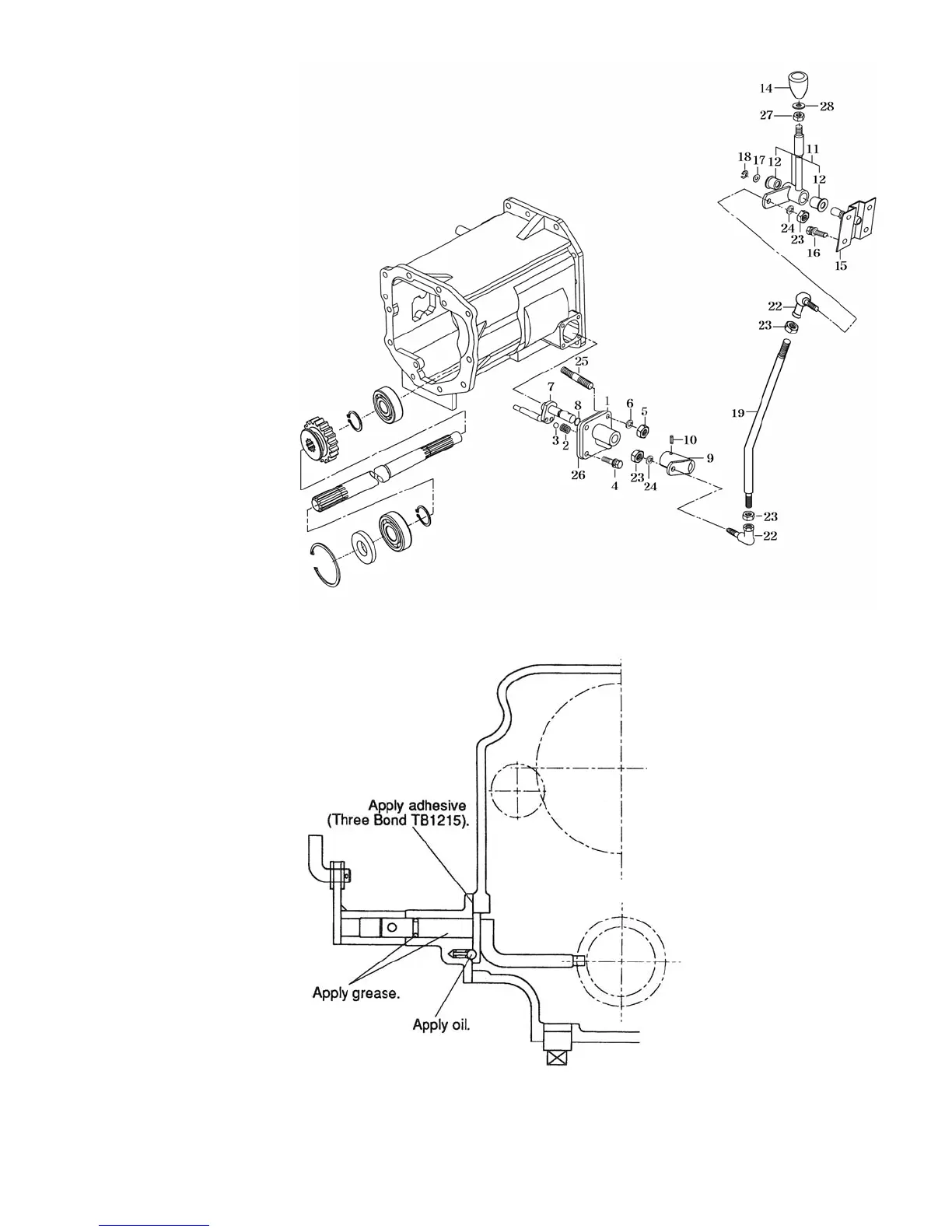

(4) Front drive change (4 WD shaft) mechanism
1.Metal(shifter)
2.Shifter spring
3.Steel ball
4.Bolt
5.Nut
6.Washer spring
7.Arm comp
8.O-ring
9.Arm(plate)
10.Spring pin
11.Lever(bar,12)
12.Bush
14.Knob
15.Bracket
16.Bolt
17.Tension arm washer
18.Snap ring
19.Rod
22.Elbow
23.Nut
24.Washer spring
25.Stud
26.Packing
5-40
Fig.5-77
Fig.5-76
