TYM T430 Service Manual

SECTION 3. DISASSEMBLY,INSPECTION,AND REASSEMBLY
1. CENTER PIVOT
6-3
1.Housing,front axle
2.Oil cap
3.Plug
4.connector
5.Hose(820)
6.Clamp,(worm/14.5)
8.Metal,pivot(R)
9.Bush(75X80X30)
10.Bolt (M16X40)
11.Washer,spring(M16)
12.O-ring(P)
13.O-ring
14.Spacer (R)
16.Metal pivot(F)
17.Bush(50X55X20)
18.Spacer (F)
19.O-ring(G 55)
20.Bolt
21.Nut
22.Seal washer
23.Bolt(M12X40)
24.Washer spring

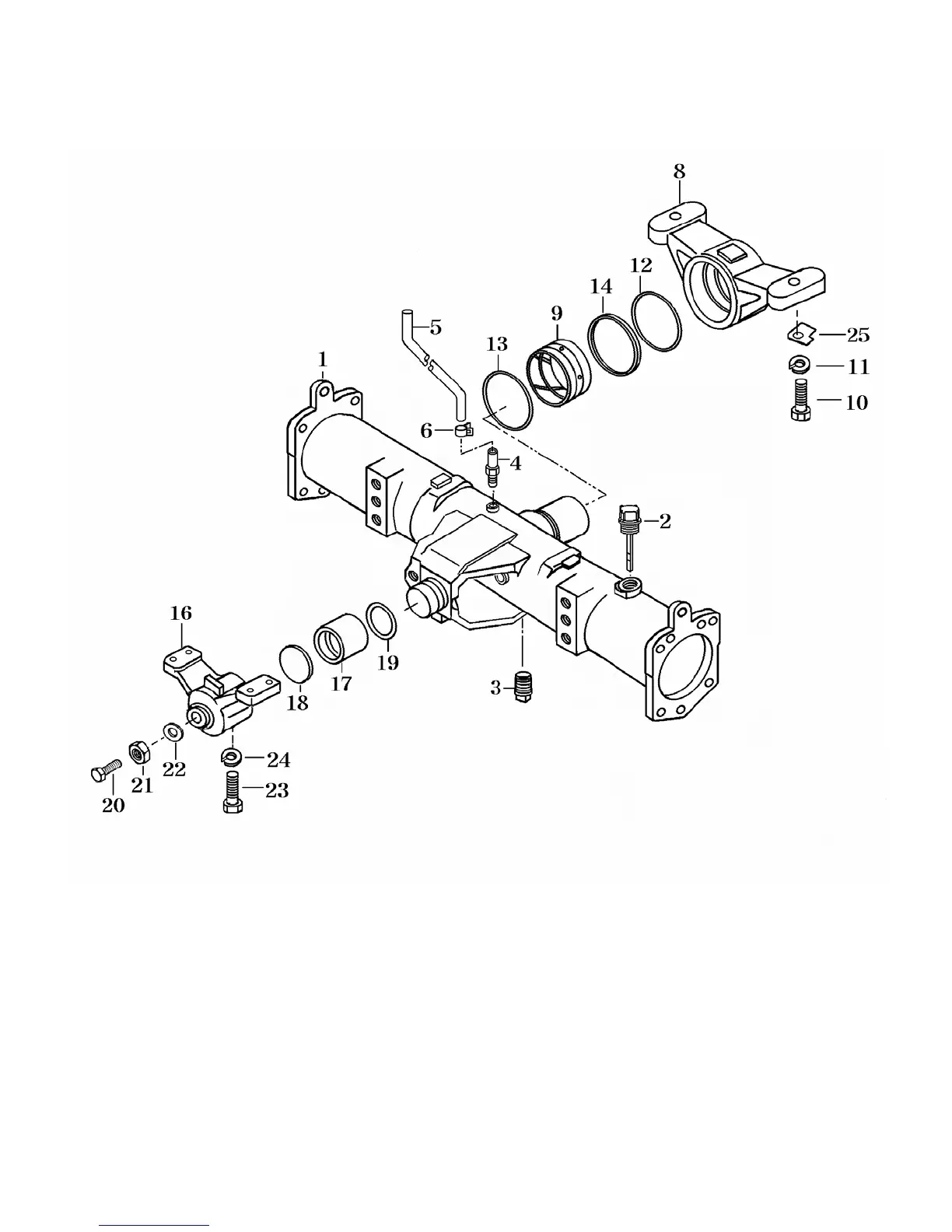

Fig.6-3
