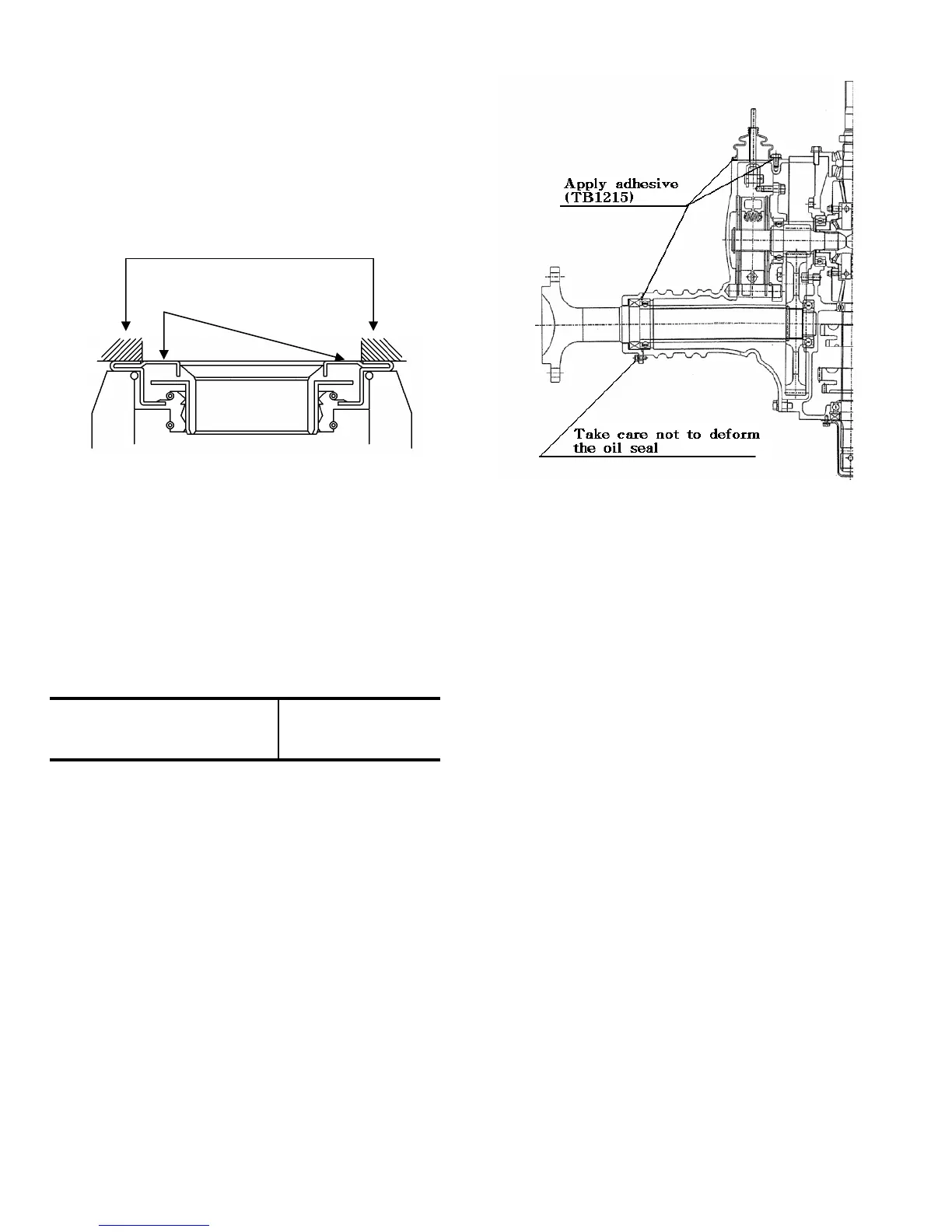

Fig.7-11
Apply force only to the shaded parts
Take care not to deform these portions
5) press in the wheel shaft.
6) Install the wheel gear and bearing on the
wheel shaft and retain them with nut.
7) Apply adhesive (THREE BOND 1215) to the
contact surfaces of the brake metal and housing
and then retain the plates by tightening the nuts
to the specified torque.
0.6-0.8 Kgf.m
(4.3-5.8ft-lbs)
Tightening torque
4) Replace the oil seal.
Install the bearing,snap ring,and collar into the axle
housing,and then press in the oil seal by applying
force only to the circumference as shown in the
figure( Fig.7-11)
Fig.7-12
To Next Page
