5) Remove the suction and delivery pipes.
6) Remove the delivery pipe for the PTO clutch.
7) Remove the reverse shift metal(support)
8) Hold the clutch housing and space
transmission case with a crane or jack.
9) Remove the bolts which tighten the front
transmission and spacer transmission cases.
10) Move the rear part of the tractor rearwards
by turning the rear wheels by hand, and
then the spacer and rear transmission assembly
will be separated from the front transmission.
Note:
When moving the rear part of the tractor.
be careful not to allow the garage jack to shift
from the spacer transmission case.
Remarks
The rear transmission and spacer transmission
cases should be separated and the reverse shift
metal(support) removed in order to take care out
or provide access to the main shift and
transmission range shift gears. For further
details,refer to Chapter 5. Transmission.
2.installation
Reassemble in reverse order of disassembly.
(1) Assemble the front and spacer transmission.
Fig.2-37
(5) Install the front wheel drive shaft.
(6) Position the floor taking care not to allow
wiring or other parts to be pinched under it
(7) With the floor lifted up a little, install the fuel
hose and fuel gauge coupler on the fuel sub-
tank and connect the linear shift control cable.
(8) Fix the floor at the four rubber mounts.
(9) Install all levers,knobs, and Rods.
(10) Connect the power steering wheels.
(11) Connect the accelerator wires.
(12) Install wiring
(13) Connect the negative battery cable.
(14) Install the side covers(RH and LH)
(15) Fill the transmission case with oil
3510/4110/T390(T400)/T430(T450):34(9 us gal)
2-13

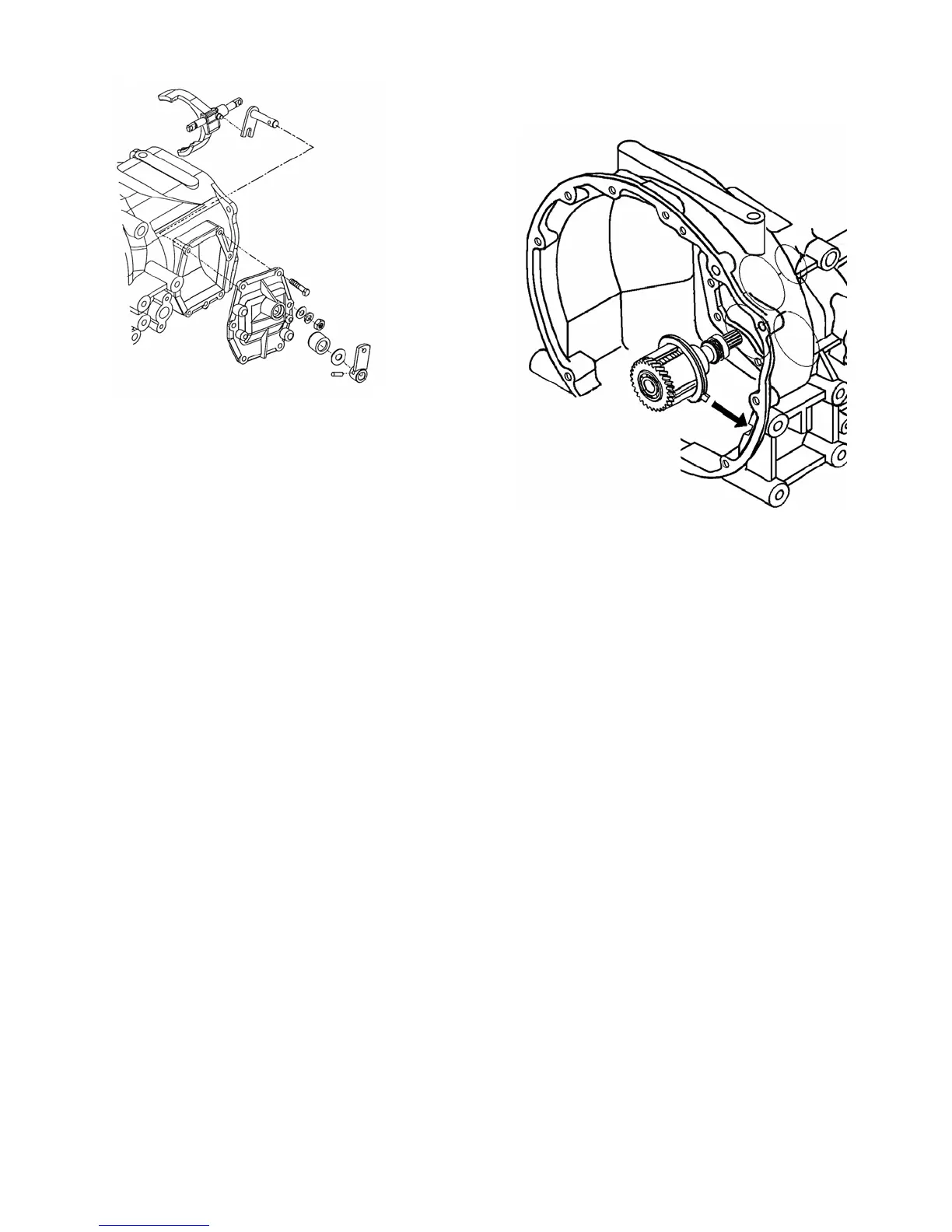

FIG.2-36 Reverse shift metal
Note:
Make sure that the turning lock of the PTO
clutch is securely seated in the groove in the
Front transmission case.
(2) Install the reverse shift metal(support)
(3) Install the PTO clutch delivery piping.
(4) Install brake rods.
