5-10
a.Draw shaft along with gear(Fig5-24)
b.Draw PTO drive gear;PTO clutch assembly;PTO drive shaft;gear all together as an assembly.
Note:
Be careful not to damage the seal ring of the PTO clutch
c.Extract the assembly of gear,reverse shaft,synchromesh assembly,and gear.

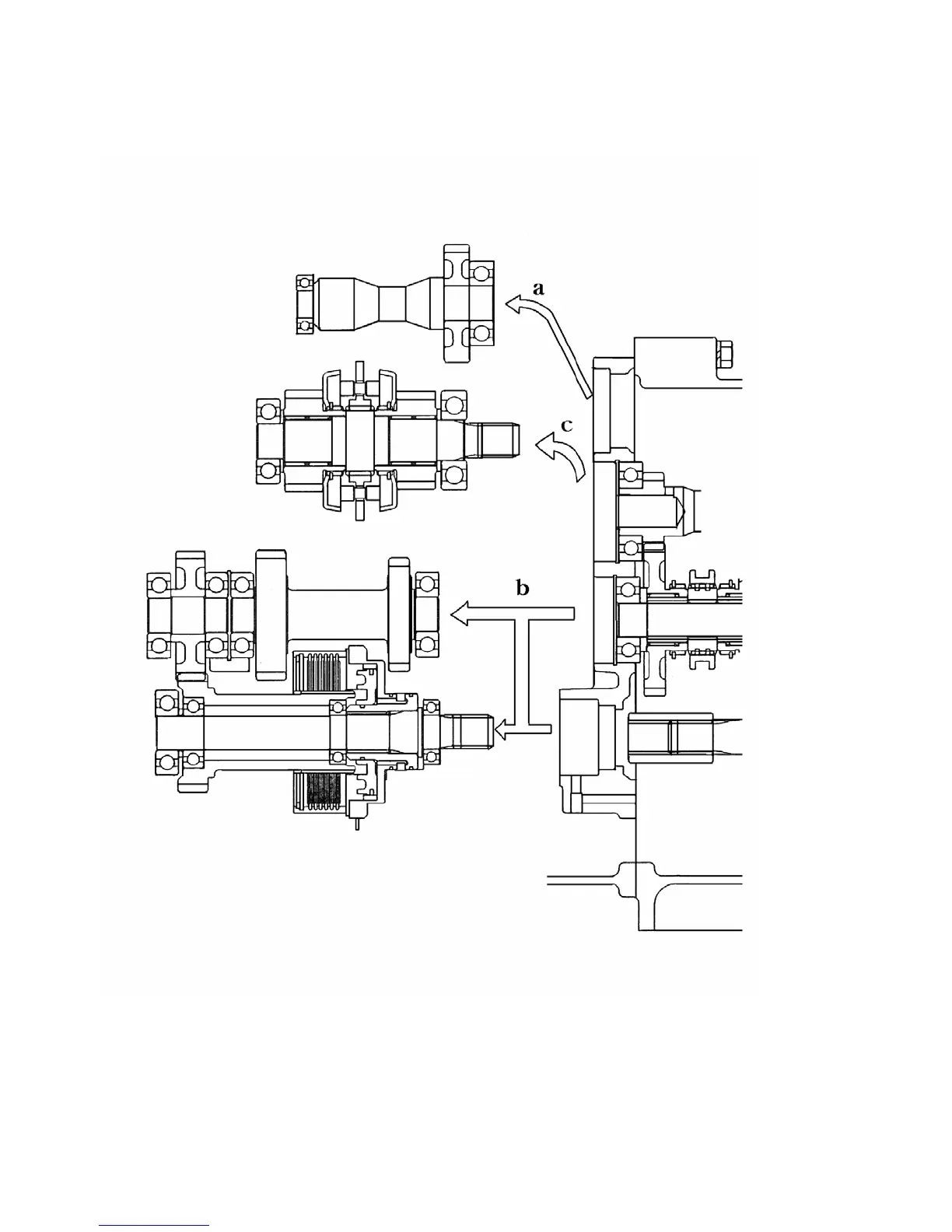

Fig.5-25
Note:
When the PTO clutch assembly is trouble-free,keep it aside,without disassembling it,in a Clean,dust-
free place
