TYM T430 Service Manual

1.3 REASSEMLBY
(1) Sub Assembly of reverse shaft and related parts.
5-12
a.Install Synchro-cups(34) on gear(16) and gear(21) respectively and retain them securely with snap
rings C
b.Install synchro-hub comp(35) and above sub- assemblies on reverse shaft(18)
Note:
As each synchromesh assembly maintains a specified installed width,be sure not to mix different
pairs of the synchro-hub comp,and the synchro-cup
c. Install washers (15 and 22) and install the bearings positively.
Note:
As these washers have their own directions of installation,be strict to install them correctly.

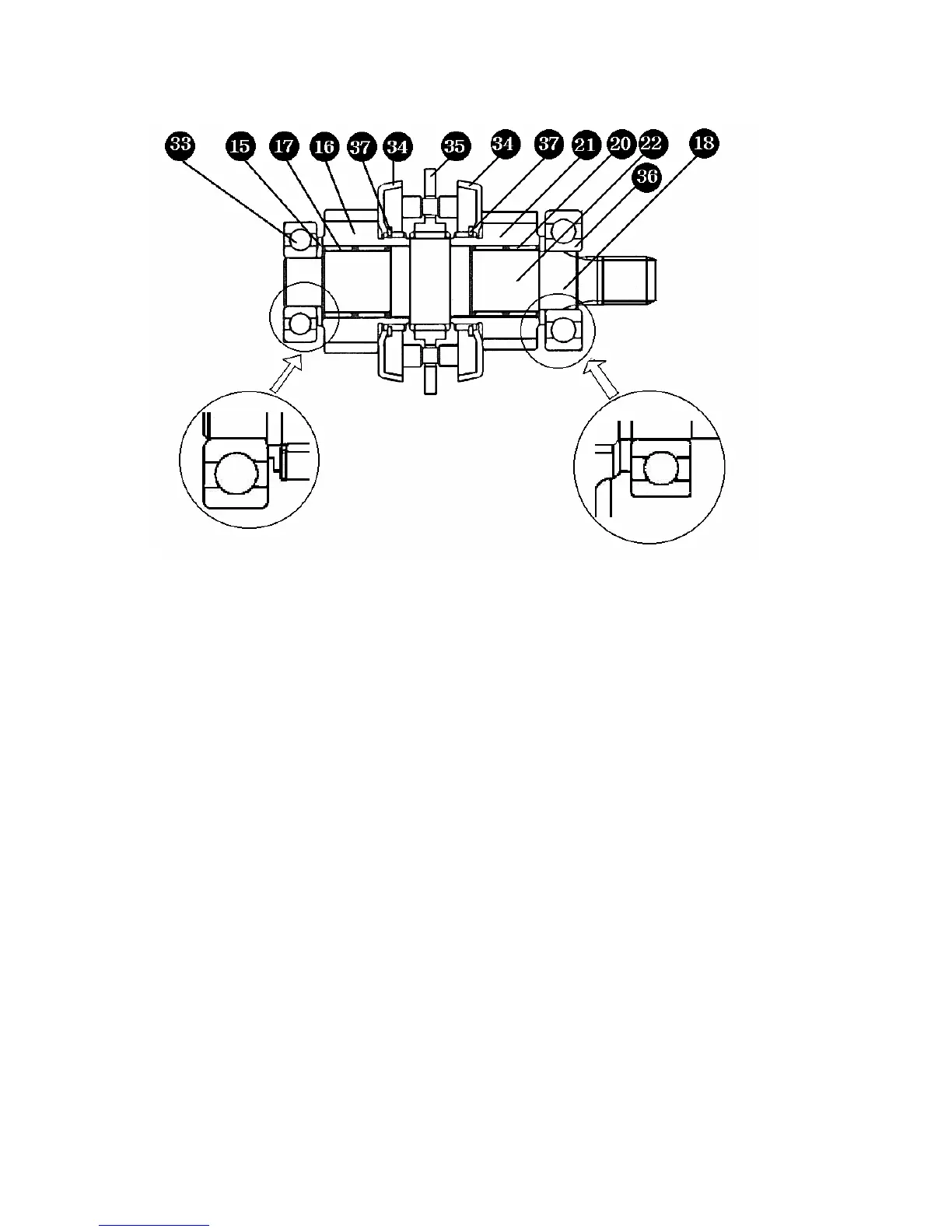

Fig.5-27
