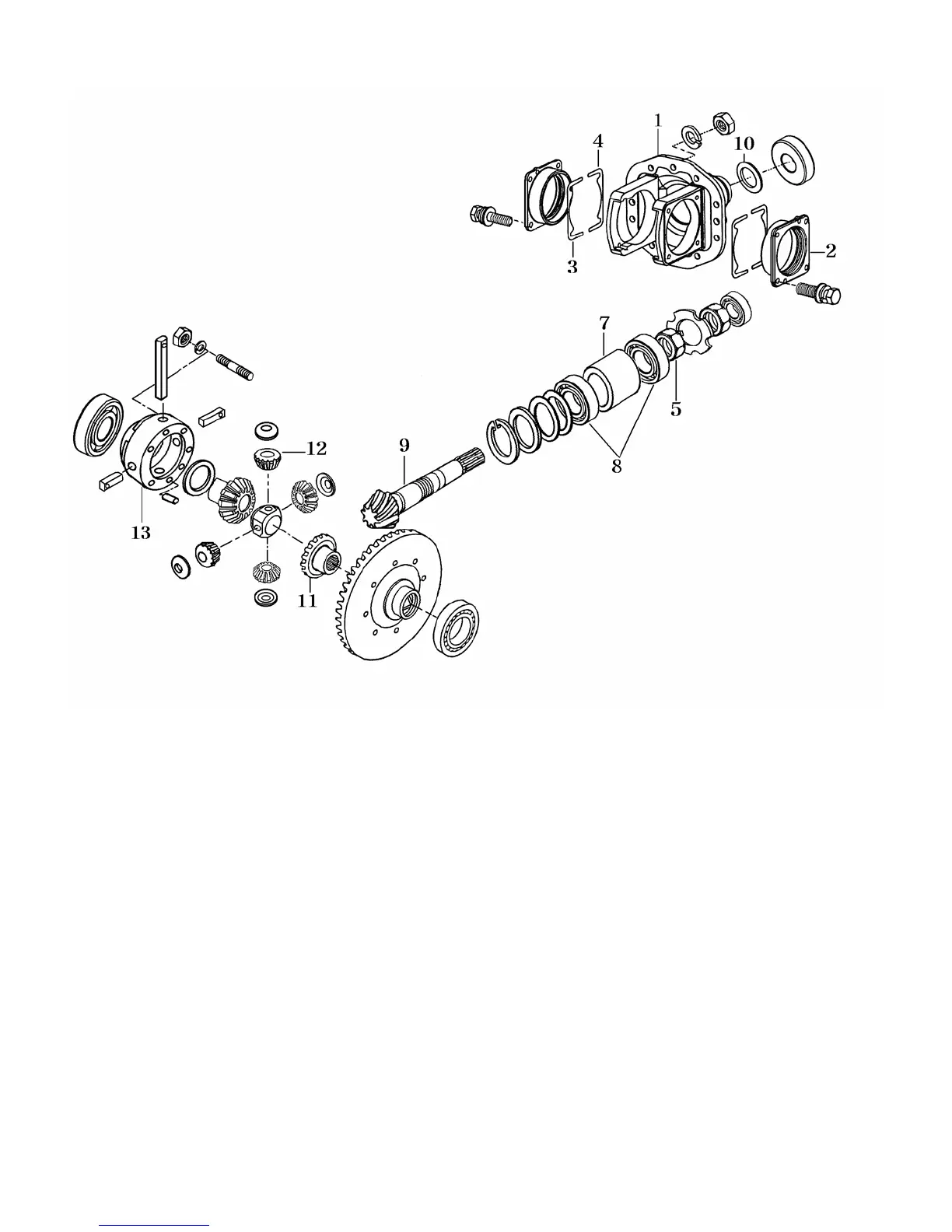

2. FRONT DIFFERENTIAL
1.Bevel case
2.Diff-Metal(support)
3. Shim A
4.Shim B
5.Nut(M28X1.5)
6. Sleeve
7. Shims ( A and B)
Fig.6-12
6-6
8. Tapered roller bearing
9.Bevel pinion
10.Washer (85X98X05)
11.Bevel gear(20 T)
12. Bevel pinion(11T)
13. Front diff-case
