TYM T603 - Page 114

▶ Drawing for fixing position of the fuse

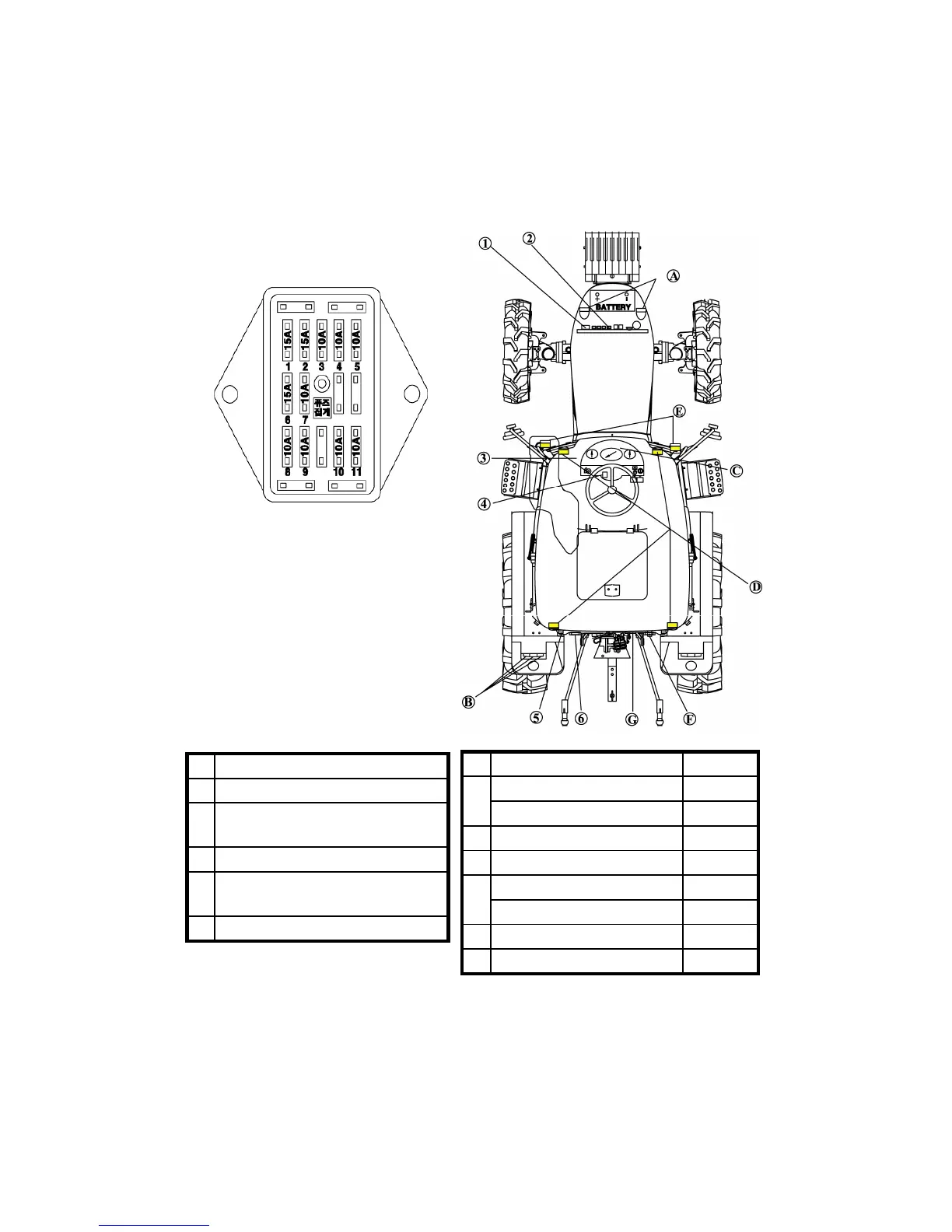

▶ Wiring diagram of the electric instrument
1. PANEL
2. LIGHT, HORN
3. WORKING LIGHT
4. STOP LAMP
5. TURN SIGNAL
6. CONTROLER
110
1 FUSE BOX
2 SLOW BLOW FUSE
3 UNITS FOR DIRECTION
SIGNAL RELAY FOR THE POWER
4 PTO MONITOR
5 COUPLER FOR THE POWER
MAX RATED AMPERE
6 COUPLER FOR THE TRAILER
A HEAD LAMP 12V55W
B DIRECTION SIGNAL LAMP 12V21W
STOP LAMP BACK LIGHT 21/5W
C META PANEL LIGHT 12V3.4W
D WORKING LAMP 12V35W
E DIRECTION SIGNAL LAMP 12V21W
SIDE LAMP 21V5W
F BACK LAMP 12V20W
G NUMBER LAMP 12V10W
6. CONTROLER
7. ENGINE STOP
8. FUEL PUMP
9. COUPLER
10. AUTO ROLLING
11. QUICK TURN
