2) Compressor belt adjustment
Check the compressor belt tension regularly and
adjust If required.
The correct tension is if the center of the belt is
Pushed With a finger it moves in approx. 10 mm
(0.39 in)as shown in the picture.
To adjust the belt, loosen or tighten the nut as shown
in the picture.
Air conditioning system
The system is designed to ensure optimum temperature inside the cab and maximum comfort and safety
for the operator.
However, it is advisable to consult our specialized workshops whenever repairs or adjustments need to
be performed.
Do not approach the system with open flames, as any escape from the circuit may produce a lethal gas.

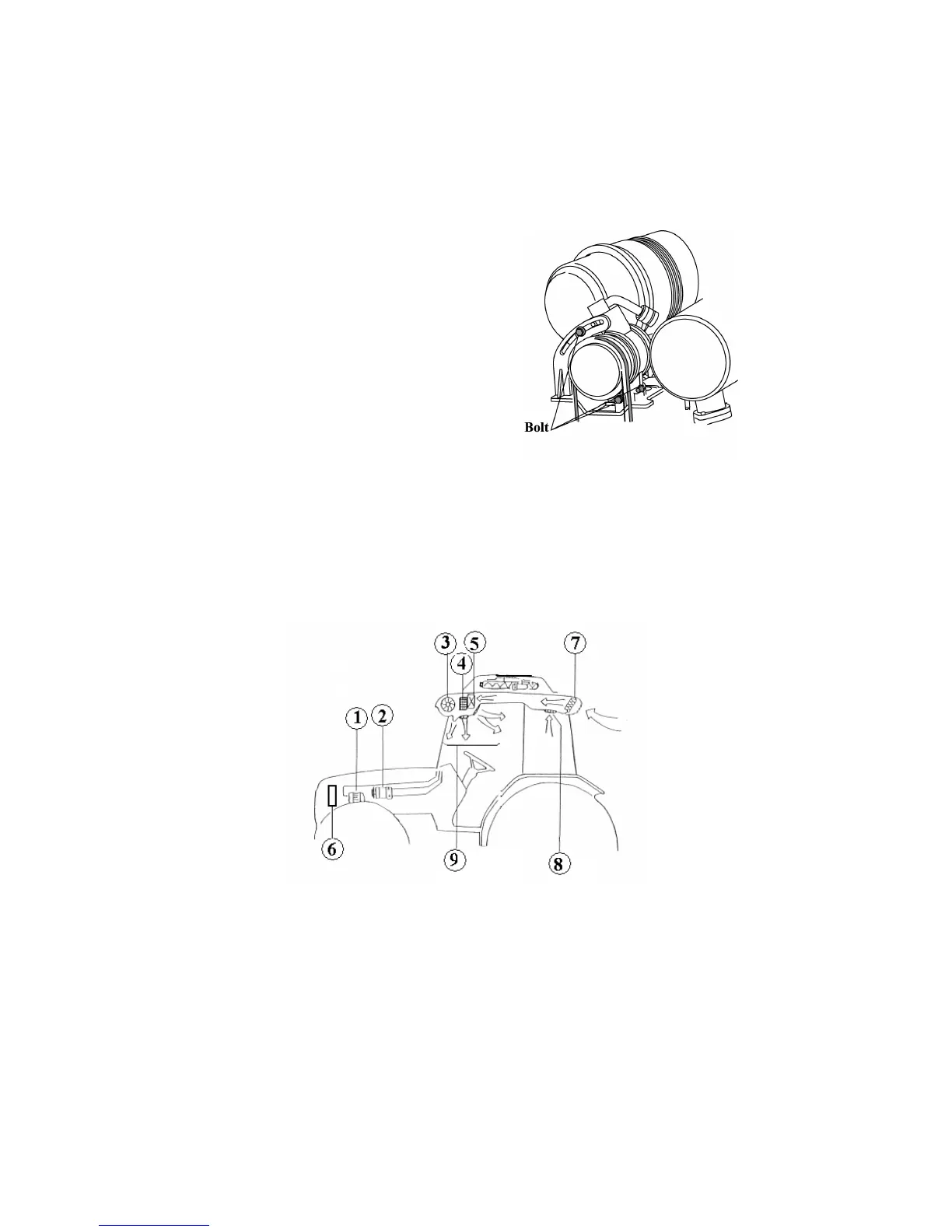

1.Alternator 2. Compressor 3.Speed fan 4.Electric resistance
5.Evaporator 6. Condenser 7.Air filter 8.Recirculation inlets
9.Pivotal air diffusers
