Only use drawbar to tow and keep the 3 point linkage in raised position when toeing with
the drawbar.
Position can create unbalance causing the Tractor to roll-over & Result the death or
serious injury.
Danger

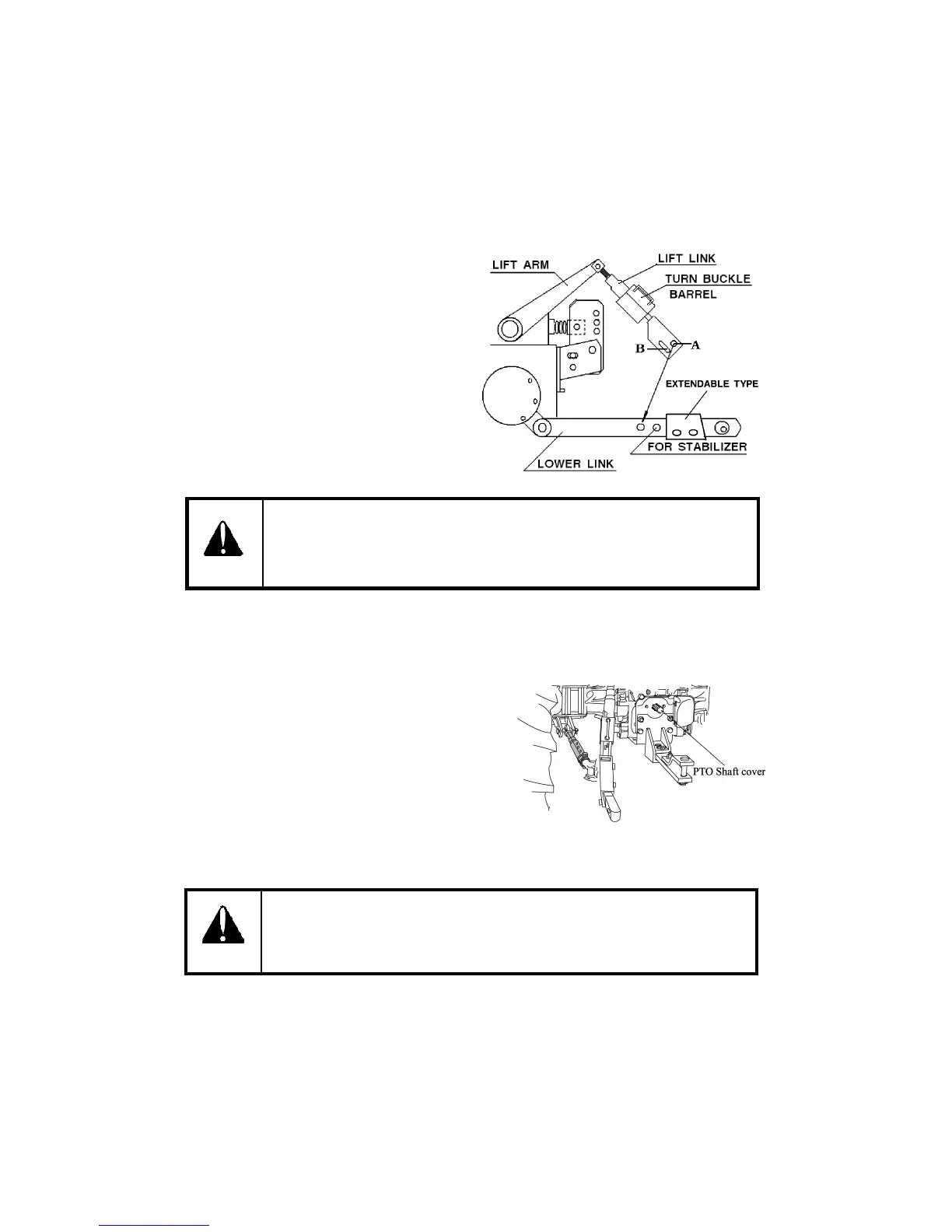

▶ADJUSTMENT OF THE LIFT LINK ON THE LOWER LINK
For different applications change the position of
the yoke rod on the lower links as shown and
insert the pin in the direction of the arrow
1) For general implement : Use the Pin to “A: point
2) For Rotary tilling : Use the Pin to “B”point
50
Do not attach a PTO shaft with the engine running and ensure all safety shields are in
place.
▶
▶▶
▶MOUNTING IMPLEMENT
If the PTO is used, remove the safety cover off the PTO shaft.
Adjust the yoke rod on the lower links to suit the implement in use.
Attach the left lower link, then attach the right lower link
using the adjusting handle on the leveling box if required.
Attach the top link.
Attach the PTO shaft to the tractor if used, making sure that it
is locked in place.
Adjust the check chains to suit the implement and tighten the
locknuts.
To remove an implement reverses the procedure
Caution
