TYM T603 - Page 66

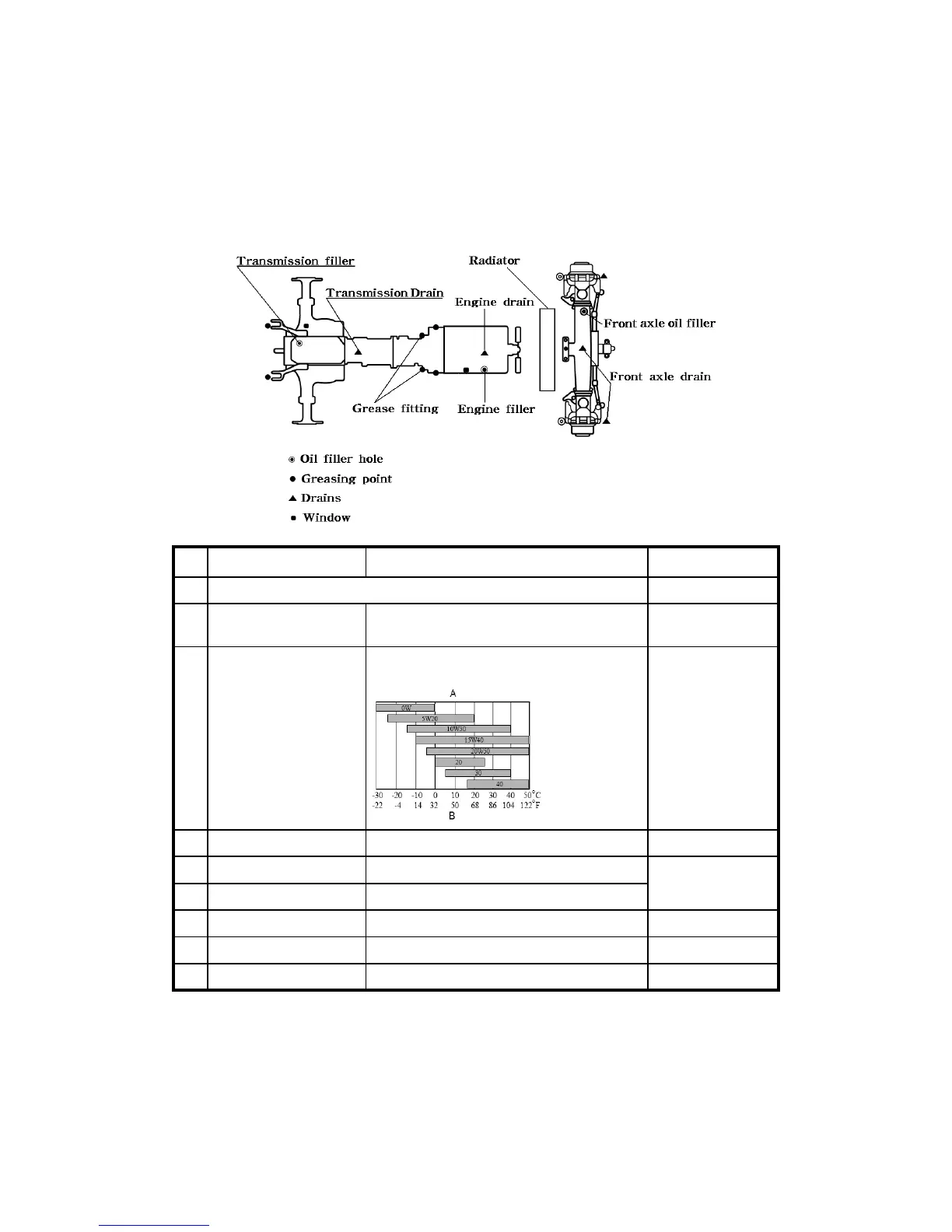

FILLING DIAGRAM & CAPACITY TABLE
No. Filling point Fillings Quantity Liter (gal.)
MODEL
T603
1
50/50 : Ethylene Glycol/Water (L.L.C)
1
RADIATOR
50/50 : Ethylene Glycol/Water (L.L.C)
ASTM D4985 / D6210
8ℓ(2.11 US gal)
2
ENGINE
API : CH4 grades
Recommended SAE viscosity grades
7.0ℓ (1.85 gal)
3
TRANSMISSION CASE
See next page *
43ℓ(11.37 US gal)
4
FRONT AXLE
(API GL4 Grades) Gear oil #80 or #90
16.4ℓ(4.33 US gal)
5
FINAL DRIVE CASE(B)
(API GL4 Grades) Gear oil #80 or #90
6
Clutch pedal shaft
Grease
As required
7
BALL JOINT
Grease
As required
8
FUEL TANK
Diesel fuel
72ℓ(19 US gal)
64
A: Viscosity
B: Temperature
