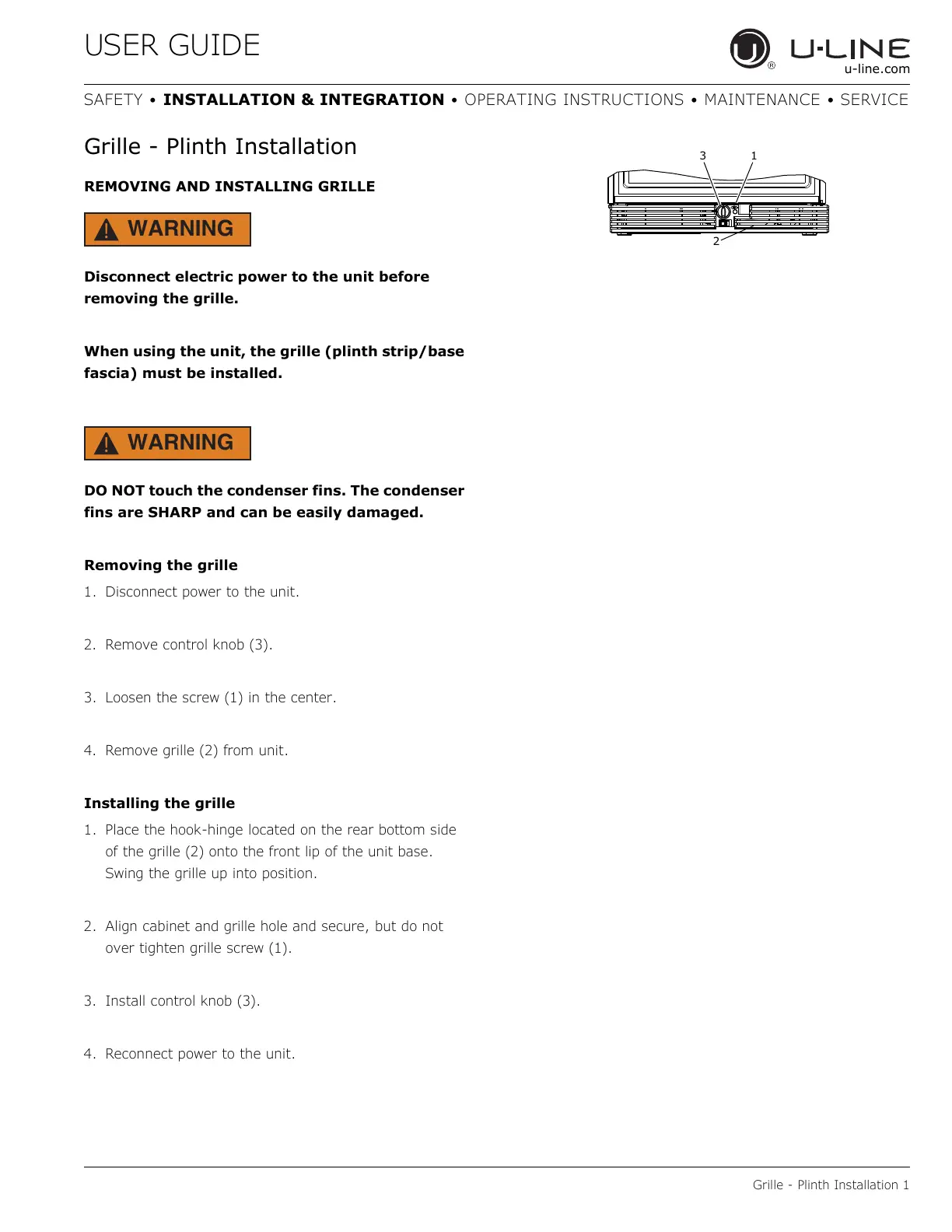

USER GUIDE
Grille - Plinth Installation 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Grille - Plinth Installation
REMOVING AND INSTALLING GRILLE
WARNING
!
Disconnect electric power to the unit before
removing the grille.
When using the unit, the grille (plinth strip/base
fascia) must be installed.
WARNING
!
DO NOT touch the condenser fins. The condenser
fins are SHARP and can be easily damaged.
Removing the grille
1. Disconnect power to the unit.
2. Remove control knob (3).
3. Loosen the screw (1) in the center.
4. Remove grille (2) from unit.
Installing the grille
1. Place the hook-hinge located on the rear bottom side
of the grille (2) onto the front lip of the unit base.
Swing the grille up into position.
2. Align cabinet and grille hole and secure, but do not
over tighten grille screw (1).
3. Install control knob (3).
4. Reconnect power to the unit.
3 1
