U-Line 2075WC WINE CAPTAIN User Manual

02/2005 9 www.U-LineService.com
™
2075WC/2075WCOL Wine Captain
®

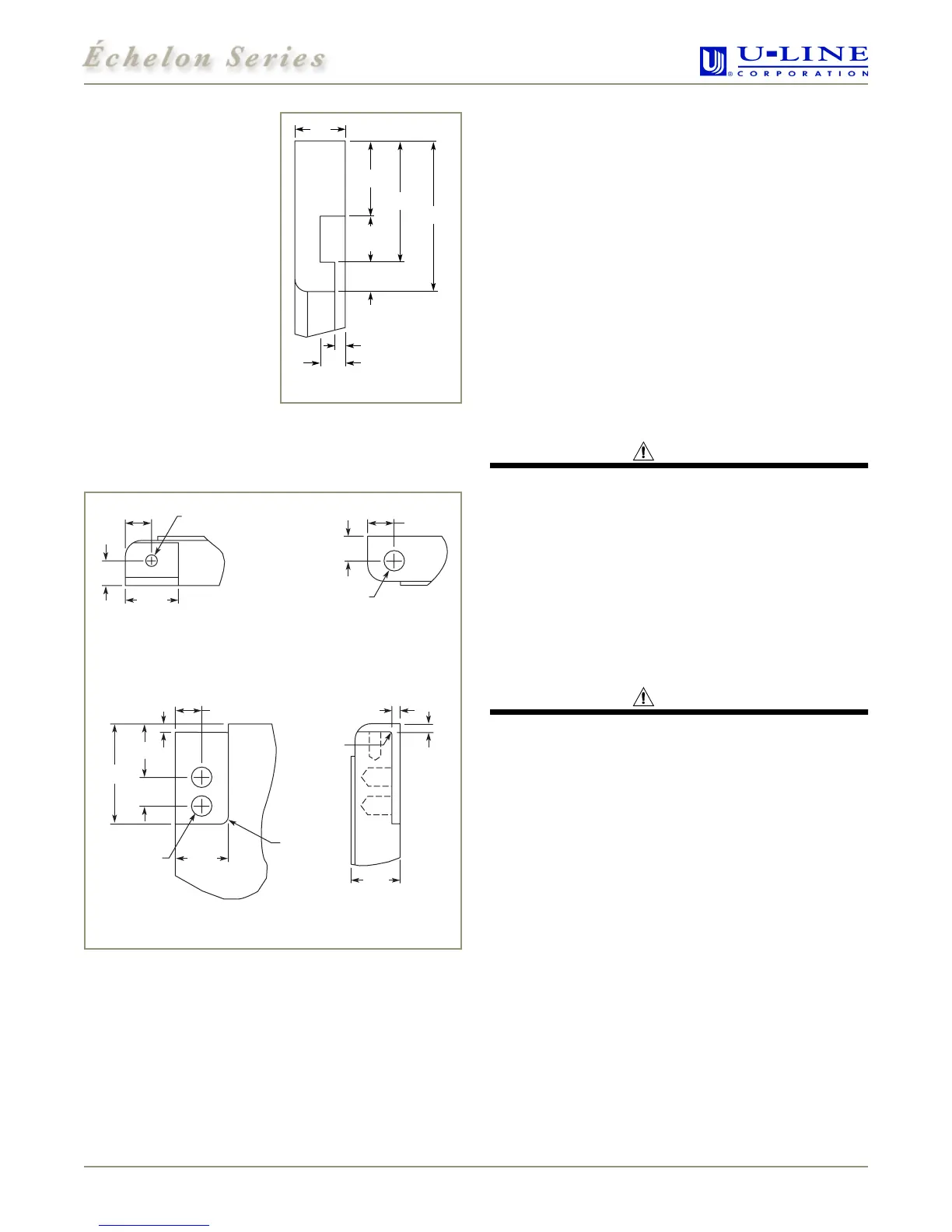

2. Typical routing dimensions
are shown in
Figure 14 .
3. Create a relief for pivot plate by cutting notch in top
corner and coinciding back corner of overlay frame.
Refer to
Figure 15 for exact specifications.
Route notch in top corner of overlay frame as shown
(see Top and Side Views). Top of notch is entire depth
of frame, front to back.
Width: 13/16"
Depth: 1/8"
Route notch in backside of top corner of overlay frame
(see Back and Side Views).
Width: 13/16"
Depth: 1/8"
Height: 1-17/32" from top edge of frame (less 1/8" for
depth of notch on top of frame)
Radius of corner notch: 1/8" (see Back View)
4. Drill holes for pivot plate mounts (see Figure 15 , Back
View).
5/16" diameter x 1/2" deep, from the routed surface
CAUTION
Be careful not to drill too deep! Drilling holes too deep
may destroy your door frame.
5. Drill hole for upper door hinge (top of frame) (see
Figure 15 , Top View).
0.177" diameter
(#16 drill) x 11/16" deep
6. Drill hole for lower door hinge (see Figure 15 , Bottom
View).
5/16" diameter x 1/4" deep
CAUTION
It is important to ensure that all drilled holes are drilled to
the correct depth in order to avoid splits in the wood
when hardware is installed.
2-1/4"
1-13/16"
1-1/8"
11/16"
(Ref.)
7/16"
(Ref.)
5/32"
3/4"
3/8"
Figure 14
Top View
Back View
Bottom View
Side View
13/16"
1-17/32"
13/16"
13/32"
3/8"
Door Bottom:
5/16" Dia.
x
1/4" Deep
Chamfer 1/32"
x
45
°
3/8"
1/8"
1/8"
13/16"
7/16"
1/8"
13/32"
3/4"
13/32"
0.177" Dia. (#16 Drill)
x
11/16" Deep
5/16" Dia.
x
1/2" Deep
1/32" R
1/8" R
Figure 15
