2175BEV/2175BEVOL2 Beverage Center
7. With bottom of door facing up, remove pivot plate (2
screws), flip over, and remount on opposite side of door
(

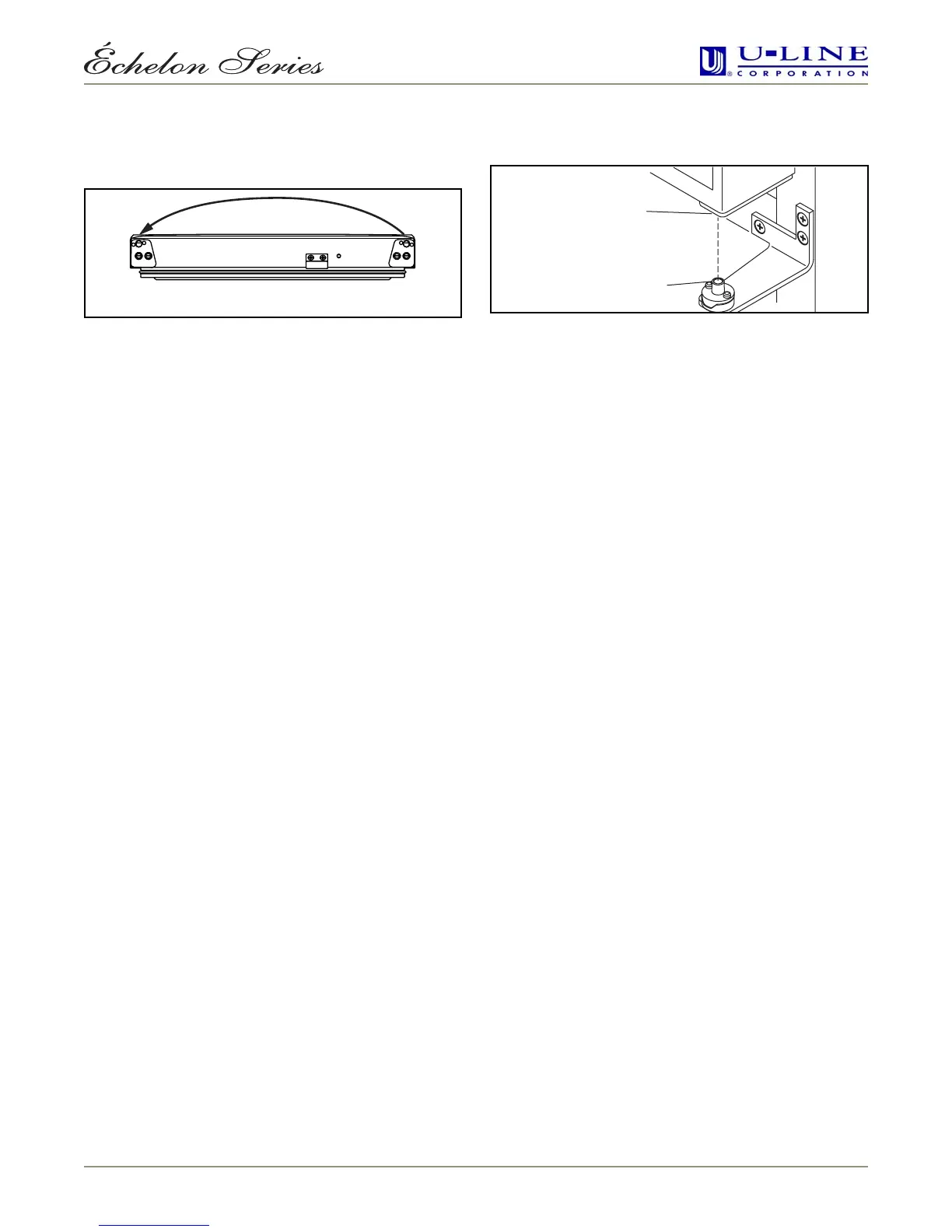

Figure 11
). Be sure angled side of plate faces center.
Figure 11
8. Holding door upright with top of door tilted forward,
place hole of door pivot plate on bottom hinge screw
pin (
Figure 12
).
9. Tilt top of door into position in top hinge and install top
hinge screw pin.
10. Install metal hinge plugs removed in step 2 in old hinge
holes (3 each, top and bottom).
Figure 12
ULIN_0274_A
bottom hinge screw pin
door pivot plate
