U-Line 2175DWRRB00 User Manual

3-17
Section 3 - Service and Repair
CO2175F/2175RF/CO2175DWR
GENERAL
U-Line Frost Free Refrigeration System
Cooling Mode:
• Bypass solenoid valve closed
• Evaporator fan operating
• Refrigerant flows through capillary tube
• Normal vapor/compression cycle refrigeration
• Drain heater off (CO2175F/2175RF only)
Defrost Mode:
• Bypass solenoid valve open
• Refrigerant flows through bypass system
• Vapor flows from condenser to evaporator without a phase
change
• Drain heater on (CO2175F/2175RF only)

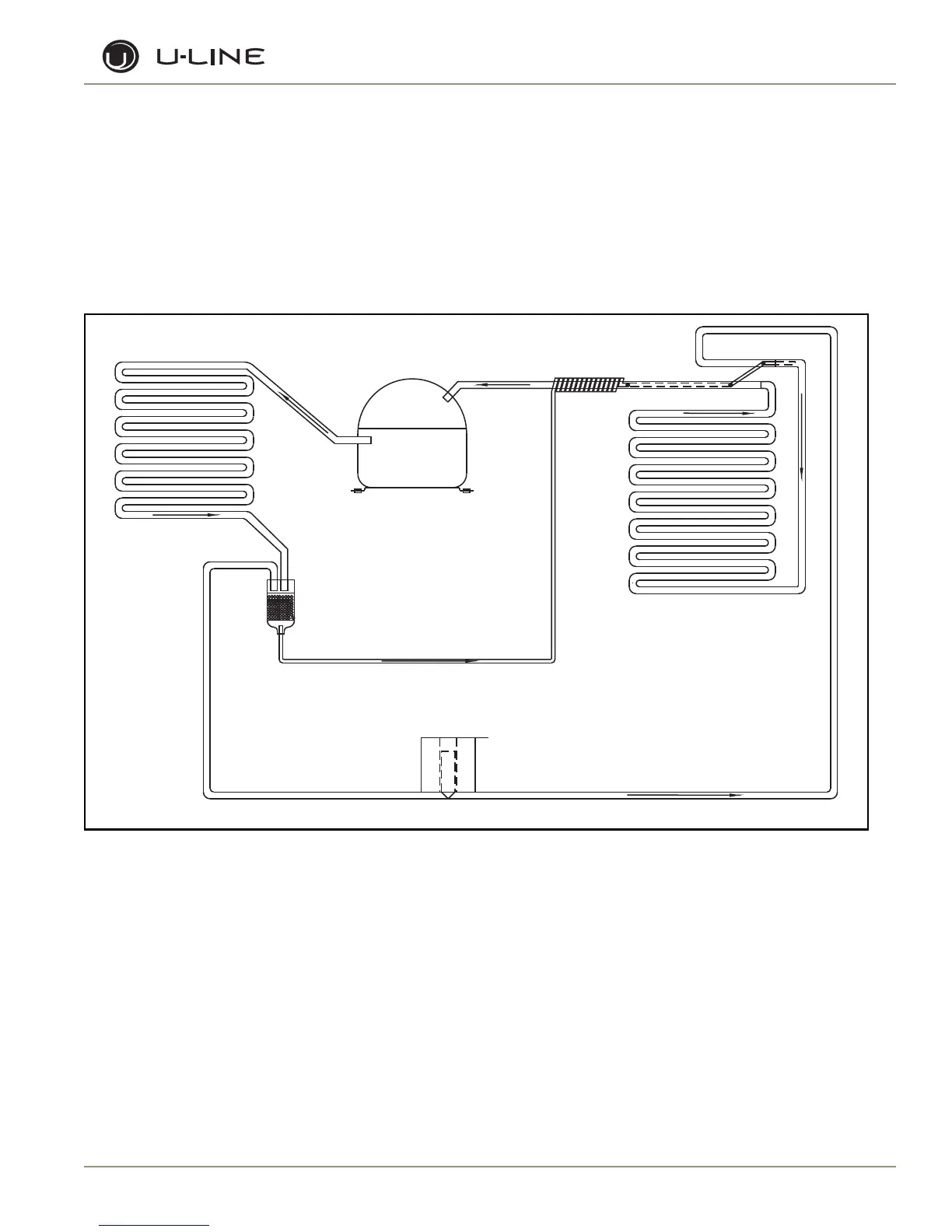

Figure 11. Frost Free Refrigeration System.
SOLENOID VALVE
CAPILLARY TUBE
VALVE IS CLOSED
FLOW WHEN SOLENOID
DRYER
CONDENSER
COMPRESSOR
EVAPORATOR
VALVE IS OPEN
FLOW WHEN SOLENOID
ULIN_0369_A

U-Line 2175DWRRB00 Specifications

General

Category	Refrigerator
Model	2175DWRRB00
Product Type	Undercounter Refrigerator
Color	Black
Door Swing	Right
Voltage	115V
Energy Star Qualified	Yes
Refrigerant Type	R600a
Adjustable Thermostat	Yes
Reversible Door	No
Interior Light	Yes
