Door Swing
Stainless Steel models that are installed adjacent to a wall
require 2-1/4” (57 mm) door clearance on hinge side to
allow for door handle.
Units have a zero clearance when installed adjacent to
cabinets.

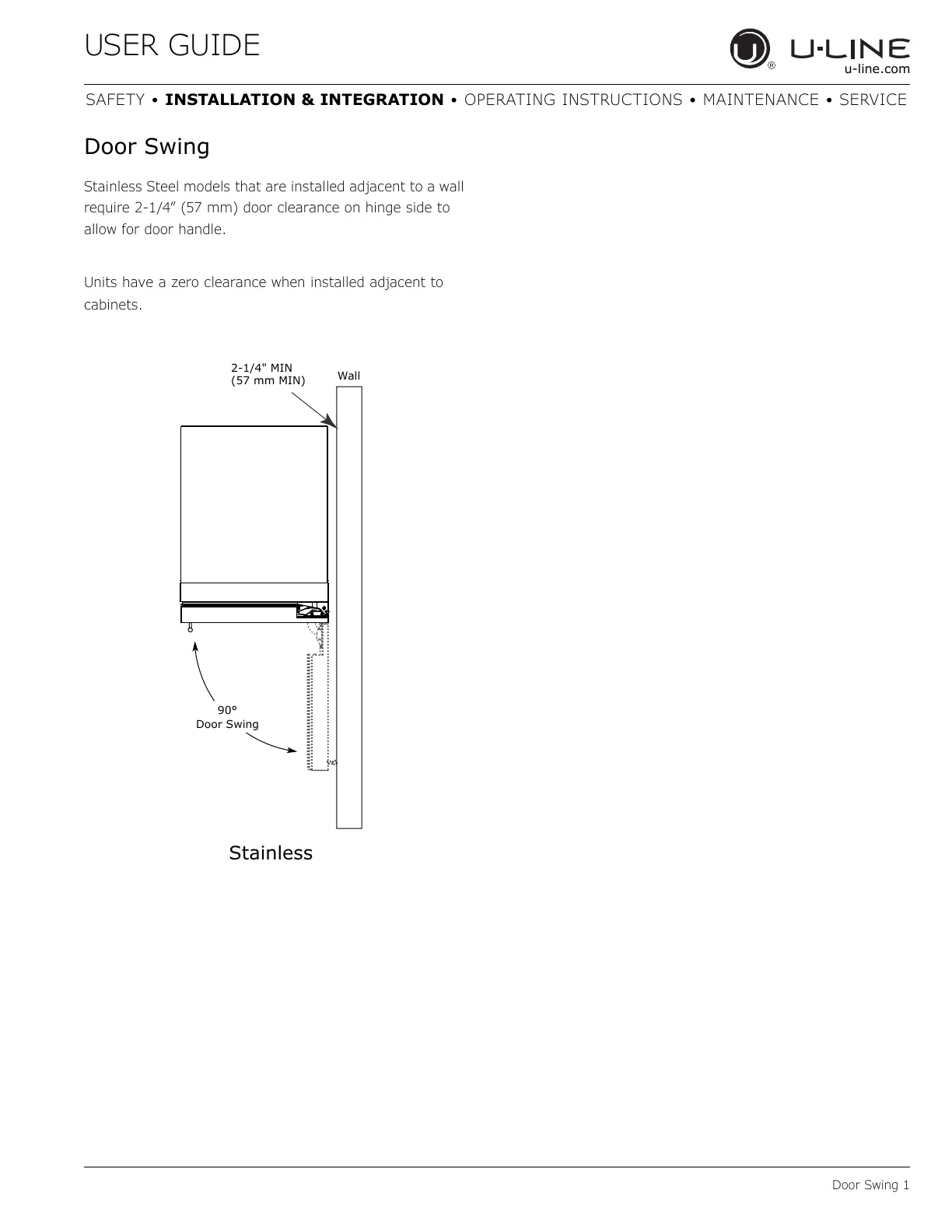

Wall
90°
Door Swing
2-1/4" MIN
(57 mm MIN)
