USER GUIDE
Door Adjustments 2
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

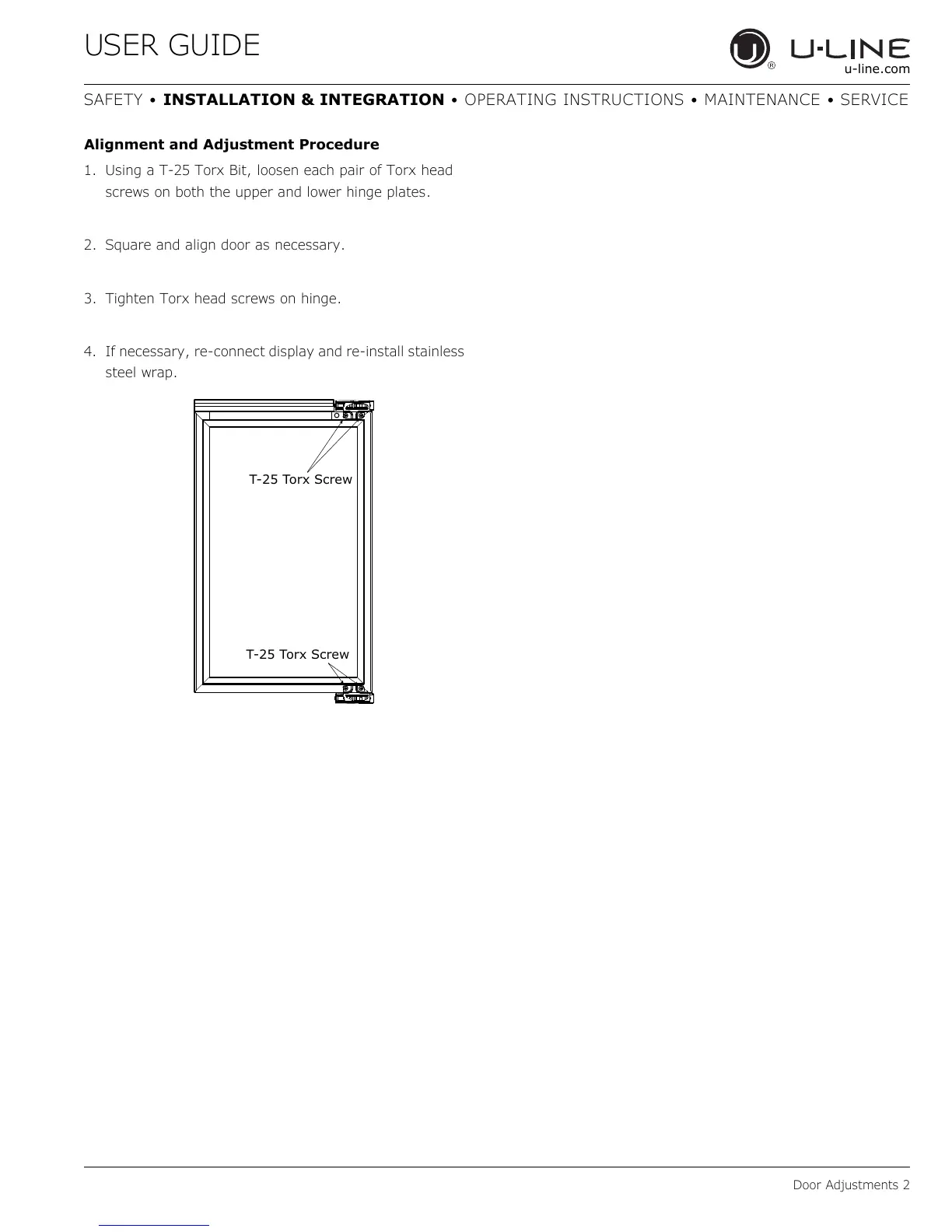

Alignment and Adjustment Procedure
1. Using a T-25 Torx Bit, loosen each pair of Torx head
screws on both the upper and lower hinge plates.
2. Square and align door as necessary.
3. Tighten Torx head screws on hinge.
4. If necessary, re-connect display and re-install stainless
steel wrap.
T-25 Torx Screw
T-25 Torx Screw
