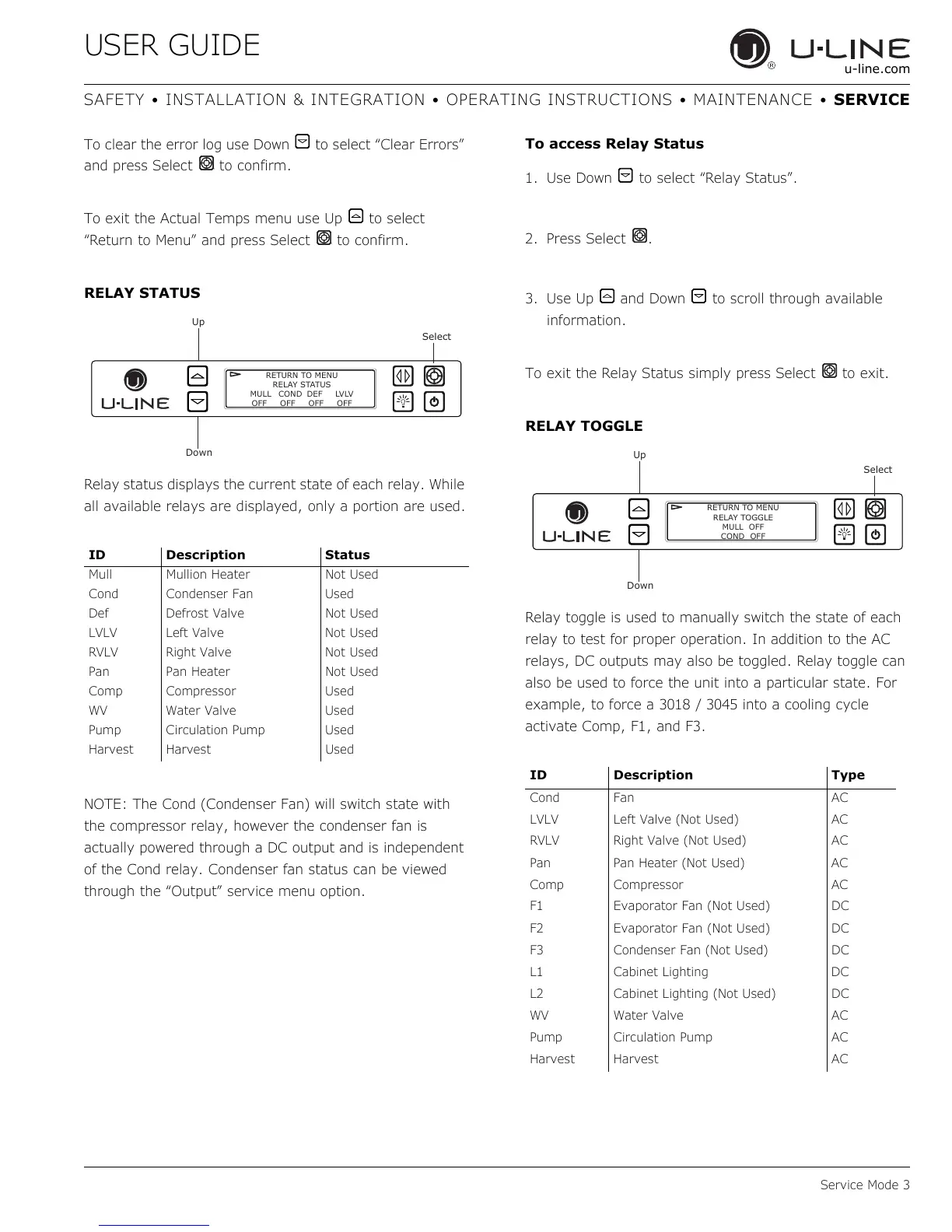

USER GUIDE
Service Mode 3
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
To clear the error log use Down to select “Clear Errors”
and press Select to confirm.
To exit the Actual Temps menu use Up to select
“Return to Menu” and press Select to confirm.
RELAY STATUS
Relay status displays the current state of each relay. While
all available relays are displayed, only a portion are used.
NOTE: The Cond (Condenser Fan) will switch state with
the compressor relay, however the condenser fan is
actually powered through a DC output and is independent
of the Cond relay. Condenser fan status can be viewed
through the “Output” service menu option.
To access Relay Status
1. Use Down to select “Relay Status”.
2. Press Select .
3. Use Up and Down to scroll through available
information.
To exit the Relay Status simply press Select to exit.
RELAY TOGGLE
Relay toggle is used to manually switch the state of each
relay to test for proper operation. In addition to the AC
relays, DC outputs may also be toggled. Relay toggle can
also be used to force the unit into a particular state. For
example, to force a 3018 / 3045 into a cooling cycle
activate Comp, F1, and F3.
ID Description Status
Mull Mullion Heater Not Used
Cond Condenser Fan Used
Def Defrost Valve Not Used
LVLV Left Valve Not Used
RVLV Right Valve Not Used
Pan Pan Heater Not Used
Comp Compressor Used
WV Water Valve Used
Pump Circulation Pump Used
Harvest Harvest Used
Up
Select
Down
RETURN TO MENU
RELAY STATUS
MULL COND DEF LVLV
OFF OFF OFF OFF
ID Description Type
Cond Fan AC
LVLV Left Valve (Not Used) AC
RVLV Right Valve (Not Used) AC
Pan Pan Heater (Not Used) AC
Comp Compressor AC
F1 Evaporator Fan (Not Used) DC
F2 Evaporator Fan (Not Used) DC
F3 Condenser Fan (Not Used) DC
L1 Cabinet Lighting DC
L2 Cabinet Lighting (Not Used) DC
WV Water Valve AC
Pump Circulation Pump AC
Harvest Harvest AC
Up
Select
Down
RETURN TO MENU
RELAY TOGGLE
MULL OFF
COND OFF
To Next Page
