U-Line 3018CLR User Manual

USER GUIDE
Service Mode 9
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
NOTE: Relay 4 will cycle with relay 6, this is considered normal.

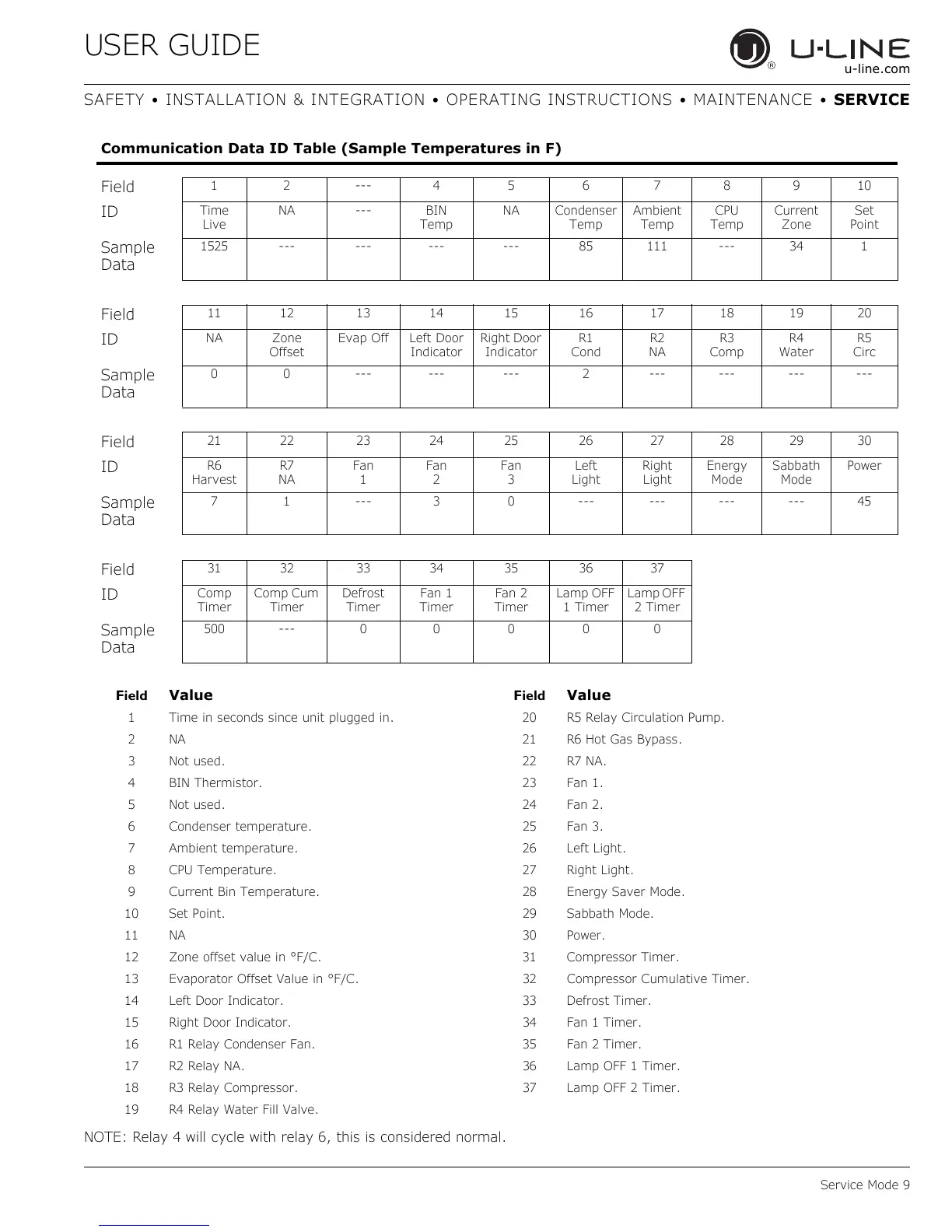

Communication Data ID Table (Sample Temperatures in F)
Field
12---45678910
ID
Time
Live
NA --- BIN
Temp
NA Condenser
Temp
Ambient
Temp
CPU
Temp
Current
Zone
Set
Point
Sample
Data
1525 --- --- --- --- 85 111 --- 34 1
Field
11 12 13 14 15 16 17 18 19 20
ID
NA Zone
Offset
Evap Off Left Door
Indicator
Right Door
Indicator
R1
Cond
R2
NA
R3
Comp
R4
Water
R5
Circ
Sample
Data
0 0 --- --- --- 2 --- --- --- ---
Field
21 22 23 24 25 26 27 28 29 30
ID
R6
Harvest
R7
NA
Fan
1
Fan
2
Fan
3
Left
Light
Right
Light
Energy
Mode
Sabbath
Mode
Power
Sample
Data
7 1 --- 3 0 --- --- --- --- 45
Field
31 32 33 34 35 36 37
ID
Comp
Timer
Comp Cum
Timer
Defrost
Timer
Fan 1
Timer
Fan 2
Timer
Lamp OFF
1 Timer
Lamp OFF
2 Timer
Sample
Data
500 --- 0 0 0 0 0
Field Value Field Value
1 Time in seconds since unit plugged in. 20 R5 Relay Circulation Pump.
2 NA 21 R6 Hot Gas Bypass.
3Not used. 22R7 NA.
4BIN Thermistor. 23Fan 1.
5Not used. 24Fan 2.
6 Condenser temperature. 25 Fan 3.
7 Ambient temperature. 26 Left Light.
8 CPU Temperature. 27 Right Light.
9 Current Bin Temperature. 28 Energy Saver Mode.
10 Set Point. 29 Sabbath Mode.
11 NA 30 Power.
12 Zone offset value in °F/C. 31 Compressor Timer.
13 Evaporator Offset Value in °F/C. 32 Compressor Cumulative Timer.
14 Left Door Indicator. 33 Defrost Timer.
15 Right Door Indicator. 34 Fan 1 Timer.
16 R1 Relay Condenser Fan. 35 Fan 2 Timer.
17 R2 Relay NA. 36 Lamp OFF 1 Timer.
18 R3 Relay Compressor. 37 Lamp OFF 2 Timer.
19 R4 Relay Water Fill Valve.
