U-Line CLRCO2075

20
Design
■
Features
■
Performance
Mode 5: All Satisfied

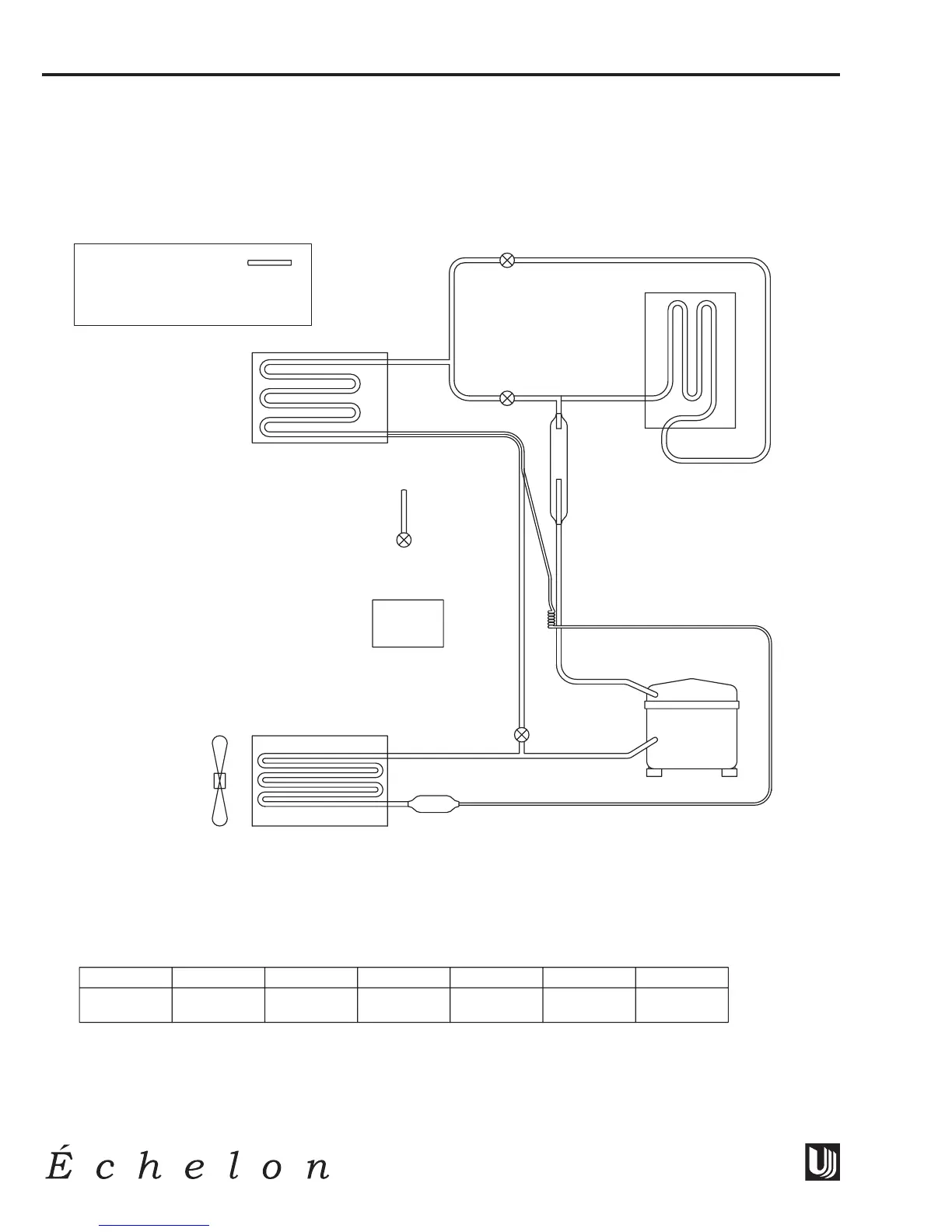

ICE MAKER EVAPORATOR
COMP - COMPRESSOR
CONDENSER
BYPASS
VALVE (UPPER)
VALVE (LOWER)
REFRIGERATION
REFRIGERATOR
EVAPORATOR
CAPILLARY
TUBE
HOT GAS
BYPASS
VALVE
DRYER
DISCHARGE
TUBE
SUCTION
TUBE
ACCUMULATOR
REFRIGERATION
H2O IN -
WATER
SUPPLY
CIRCULATION PUMP
WATER
H2O PUMP -
REF VALVE -
REF VALVE -
HOT GAS -
FAN
CONDENSER
FAN -
RELAY
STATUS OFF
COMP
OFF
H2O IN REF VALVE*
OFF
FAN
OFF
H2O PUMP
OFF
HOT GAS
*Double throw relay: OFF: REF valve closed, REF bypass valve open
OFF
OFF
OFF
OFF
OFF
OFF
ON
DURING SATISFIED MODE
UNIFORM PRESSURE
NO REFRIGERATION FLOW
OFF
Liquid line sensor: Not applicable
Refrigerator sensor: Satisfied (no call for cooling)
Bin sensor: Satisfied - bin full
CLRCO044
SERVICING
