U-Line CLRCO2075 Service And Parts Manual Supplement

9
Design
■
Features
■
Performance
SERVICING
ELECTRICAL SPECIFICATIONS

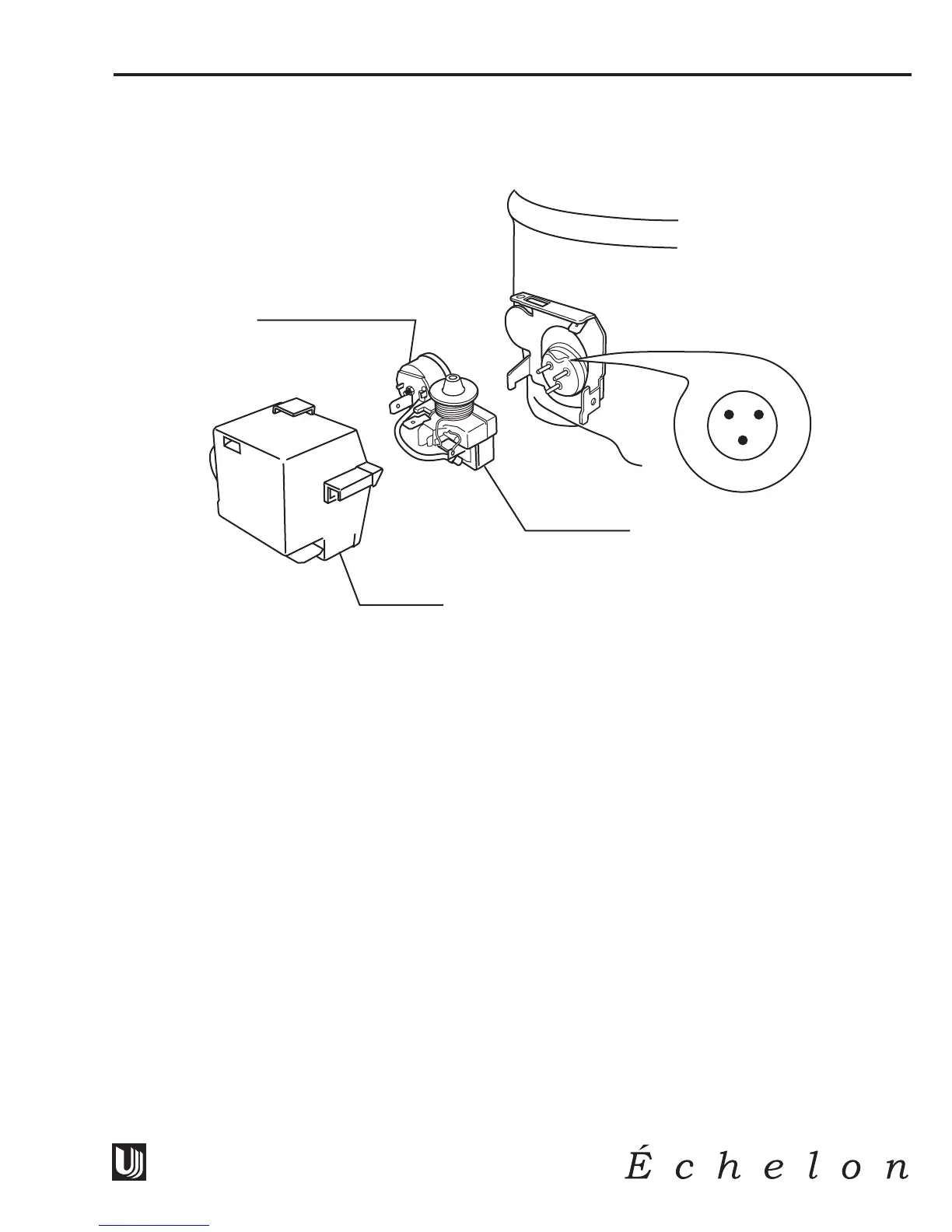

Compressor Pins
To measure start winding resistance, measure across the C-S pins.
To measure run winding resistance, measure across the C-R pins. These pins should never measure any
resistance to ground. This would indicate a shorted compressor.
Specifications
FF7.5HBK Compressor Start Winding: 11.2 OHMS
FF7.5HBK Compressor Run Winding: 2.2 OHMS
Water Valve Coil Resistance: 280 OHMS
Bypass Coil Resistance: 380 OHMS
Pump Motor Winding Resistance: 71.5 OHMS
CLRCO036
RS
C
OVERLOAD PROTECTOR
STARTING RELAY
RELAY COVER
