QUICK START GUIDE
4
u-line.com

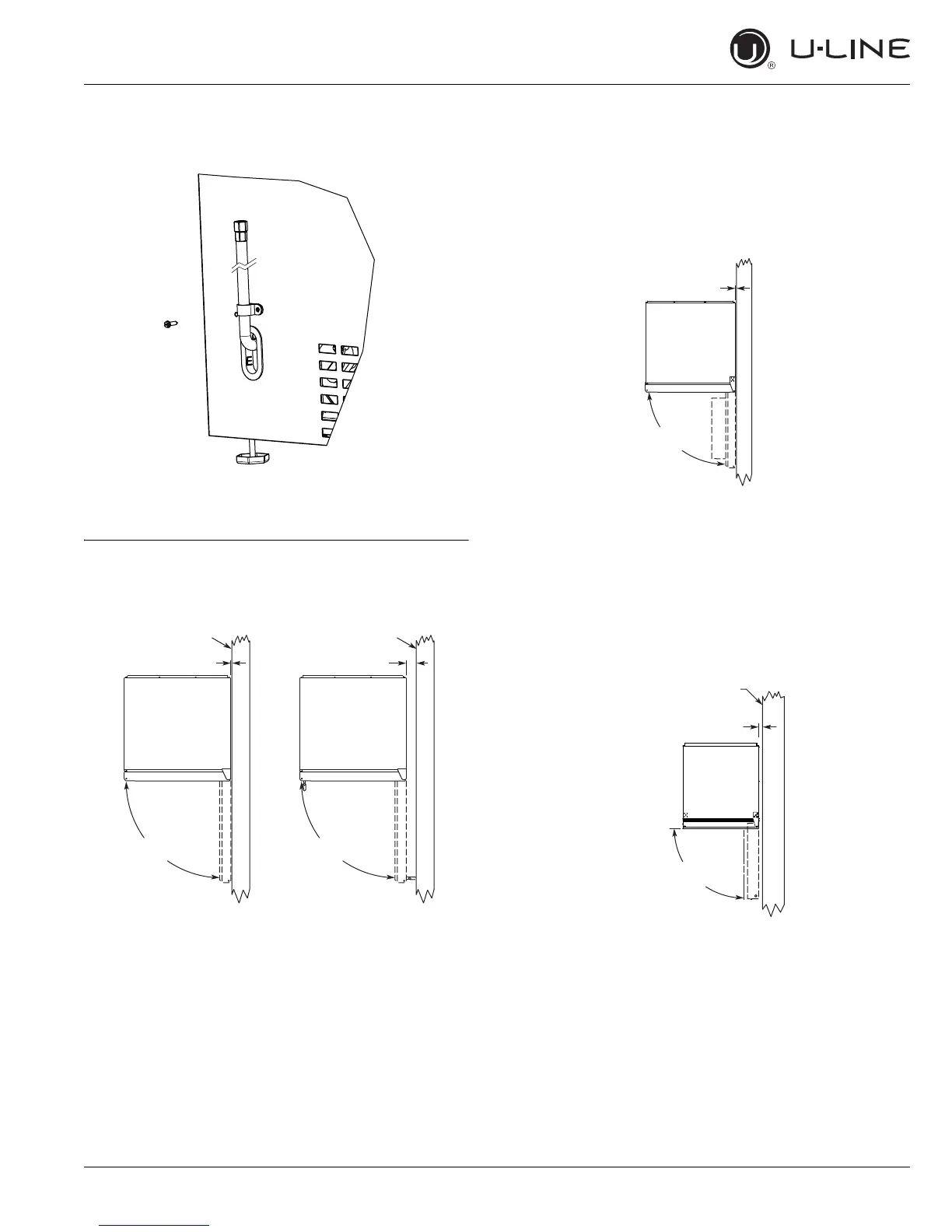

9. Install retaining clip.
Door Swing
1200 SERIES
Units have a zero clearance for the door to open 90°,
when installed adjacent to cabinets.
Stainless Steel and black and white models require 2-1/8"
(54 mm) door clearance to accommodate the handle if
installed next to a wall.
Integrated models require 1/4" (6 mm) clearance if
installed next to a wall. Allow for additional space for any
knobs or pulls installed on the integrated panel/frame.
BI SERIES
All units have a zero clearance for the door to open 90°.
U-Line recommends a minimum door clearance of 1/4"
(6 mm) to accommodate the handle if the unit is installed
next to a wall.
MARINE SERIES
All units have a zero clearance for the door to open 90°.
U-Line recommends a minimum door clearance of 3/4"
(19 mm) to accommodate the handle if the unit is
installed next to a wall or similar type of structure.
Wall Wall
90°
Door Swing
90°
Door Swing
2-1/8" Min.
(54 mm)
1/4" Min.
(6 mm)
1/4" Min. (6 mm)
90°
Door Swing
3/4" (19 mm) Min.
Wall
90°
Door Swing
