PAGE 3 OF 12 0219 IH-5439
INSTRUCTIONS

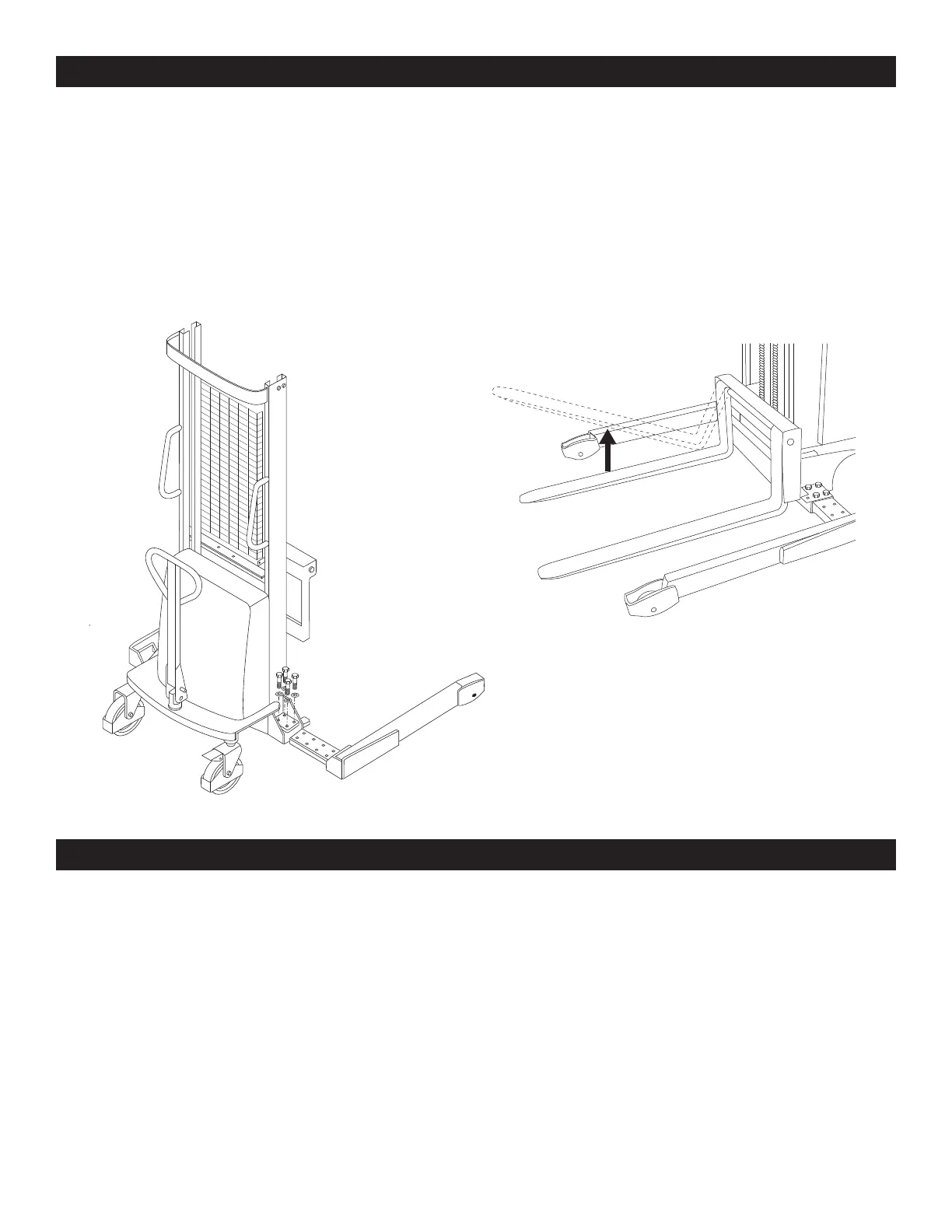

Figure 1 Figure 2
ADJUSTING THE LEGS (SEE FIGURE 1)
1. Unscrew and remove the 4 bolts and washers (1⁄")
in the base of the stacker.
2. Slide the leg to the desired position within the slot of
the body.
3. Reinsert the bolts and washers. Tighten.
4. Repeat steps 1 through 3 for the second leg.
ADJUSTING THE FORKS (SEE FIGURE 2)
1. Lift the front of the fork up and slide to the desired
position.
2. Gently lower the fork.
3. Repeat steps 1 and 2 for the other fork.
MAINTENANCE
1. Daily Check and Maintenance – It is necessary to
check the stacker daily. Special attention should be
paid to the wheels and axles. Material may block
the wheels, forks, mast and chains. They should be
checked for blockage.
2. Hydraulic Oil – Check the oil level every six months.
The hydraulic oil can be ISO VG32; its viscosity
should be 32cSt at 104˚F; total volume is about 4 L.
3. Lubrication – Use motor oil or grease to lubricate all
movable parts.
