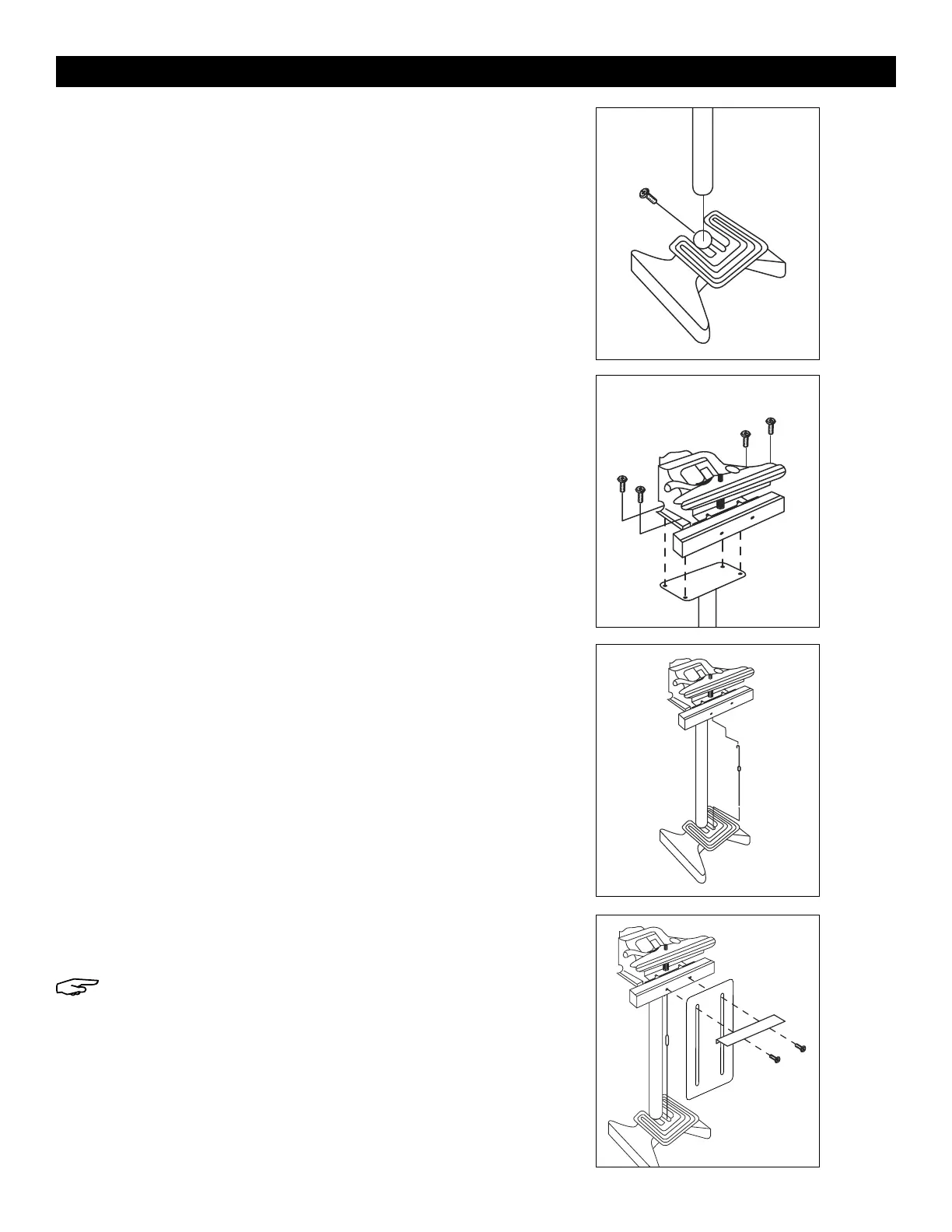

ASSEMBLY INSTRUCTIONS
1. Insert Standing Tube into Pedal Base and connect with short screw.
(See Figure 1)
2. With four long screws, connect Body to Standing Tube. (See Figure 2)
3. Attach Tension Rod to Puller located under Base. Attach to Foot
Pedal. (See Figure 3)
4. Connect Working Plate Fixed Bracket to Body. (See Figure 4)
5. Attach Operating Board to Bracket using two screws. (See Figure 4)
NOTE: When attaching Working Plate Bracket, leave enough
space between Body and top of screws so Operating Board
can be attached easily.
Figure 2
Figure 1
Figure 3
Figure 4
