U-Line H-86 User Manual

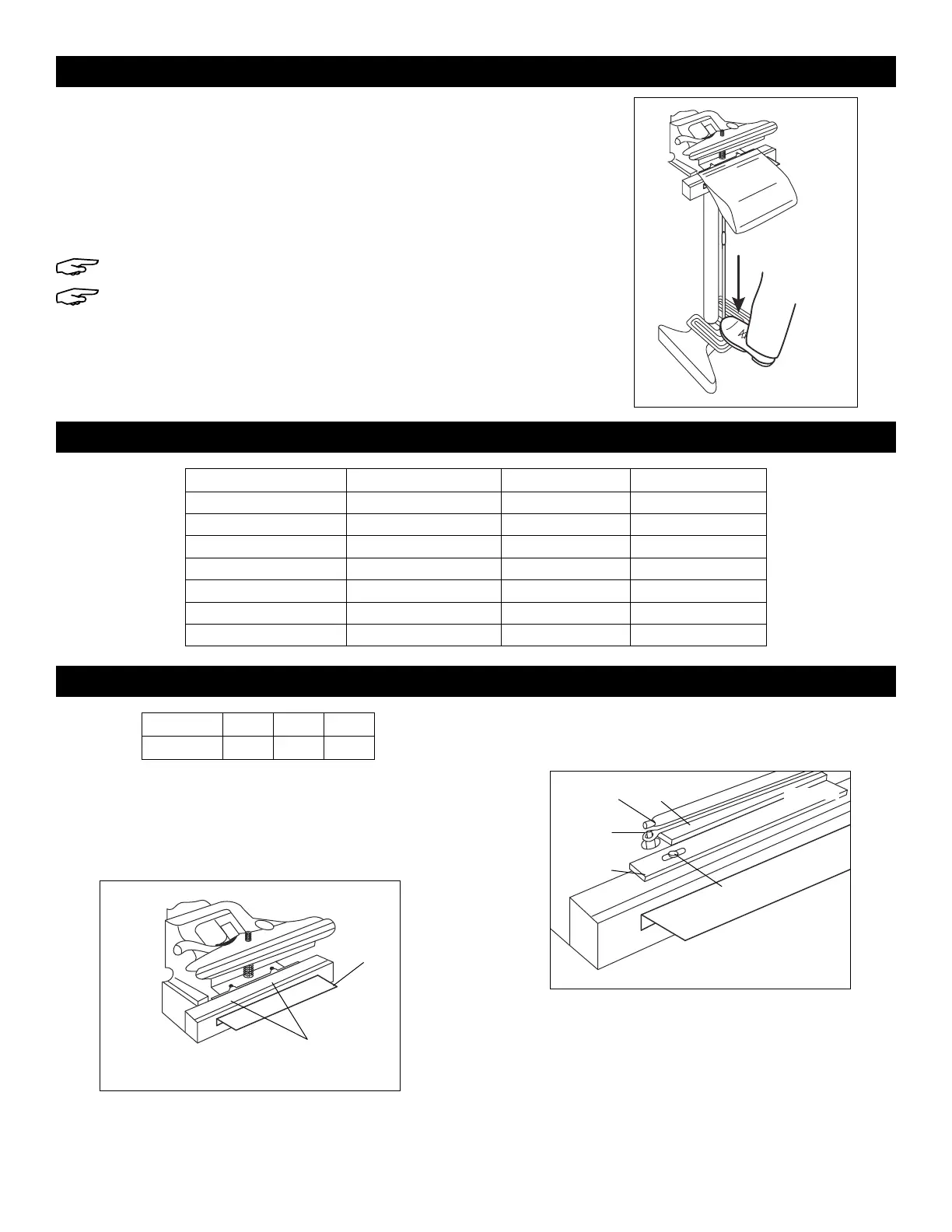

PAGE 3 OF 4 0315 IH-86
MODEL
H-86 H-87 H-89
REPAIR KIT
H-204 H-173 H-174
REPLACING TEFLON ROLL
1. Turn off power and unplug sealer.
2. Remove pressing plate and loosen teflon clips.
(See Figure 6)
3. Cut off a new section of teflon tape. Replace
pressing plate and tape.
4. Adjust teflon screw to tighten teflon roll. (See Figure 7)
5. Tighten teflon clips.
REPLACING HEATING ELEMENT
1. Turn off power and unplug sealer. Release teflon clips.
2. Remove screws to release heating element.
3. Remove old heating element and replace with the
new one.
4. Reattach and tighten the teflon tape.
OPERATING INSTRUCTIONS
1. Plug in the sealer. Set the power switch to "on".
2. Adjust the timer to the minimum setting necessary for poly bag thickness.
3. Insert poly bag between pressing lips. Press the foot pedal to begin
sealing. (See Figure 5)
4. When the light turns off, sealing is complete. Wait 1 to 2 seconds to allow
the seal to cool, then release the foot pedal.
NOTE: The sealing time is automatically controlled by the timer.
You can leave the unit plugged in and turned on between seals.
Power is only used during sealing.
Figure 5
SPECIFICATIONS
MODEL H-86 H-87 H-89
Impulse Power 520 W 380 W 454 W
Seal Width 2 mm 2 mm 2 mm
Max. Seal Length 24"/600 mm 12"/300 mm 18"/450 mm
Max. Seal Thickness 16 Mil 16 Mil 16 Mil
Heat Time ~0.2–1.7 sec. ~0.2–1.7 sec. ~0.2–1.7 sec.
Weight 75 lbs. 51 lbs. 62 lbs.
Dimensions 27.75 x 15.75 x 35.5" 15 x 13.75 x 35.5" 21.25 x 15 x 35.5"
REPLACEMENT PARTS
Figure 6
Teflon
Clips
Pressing
Plate
Figure 7
Teflon
Screw
Pressing
Plate
Teflon
Tape
Heating
Element
Teflon
Clip
