U-Line U-CLR1215 User Manual

U-CLR1215S-00B

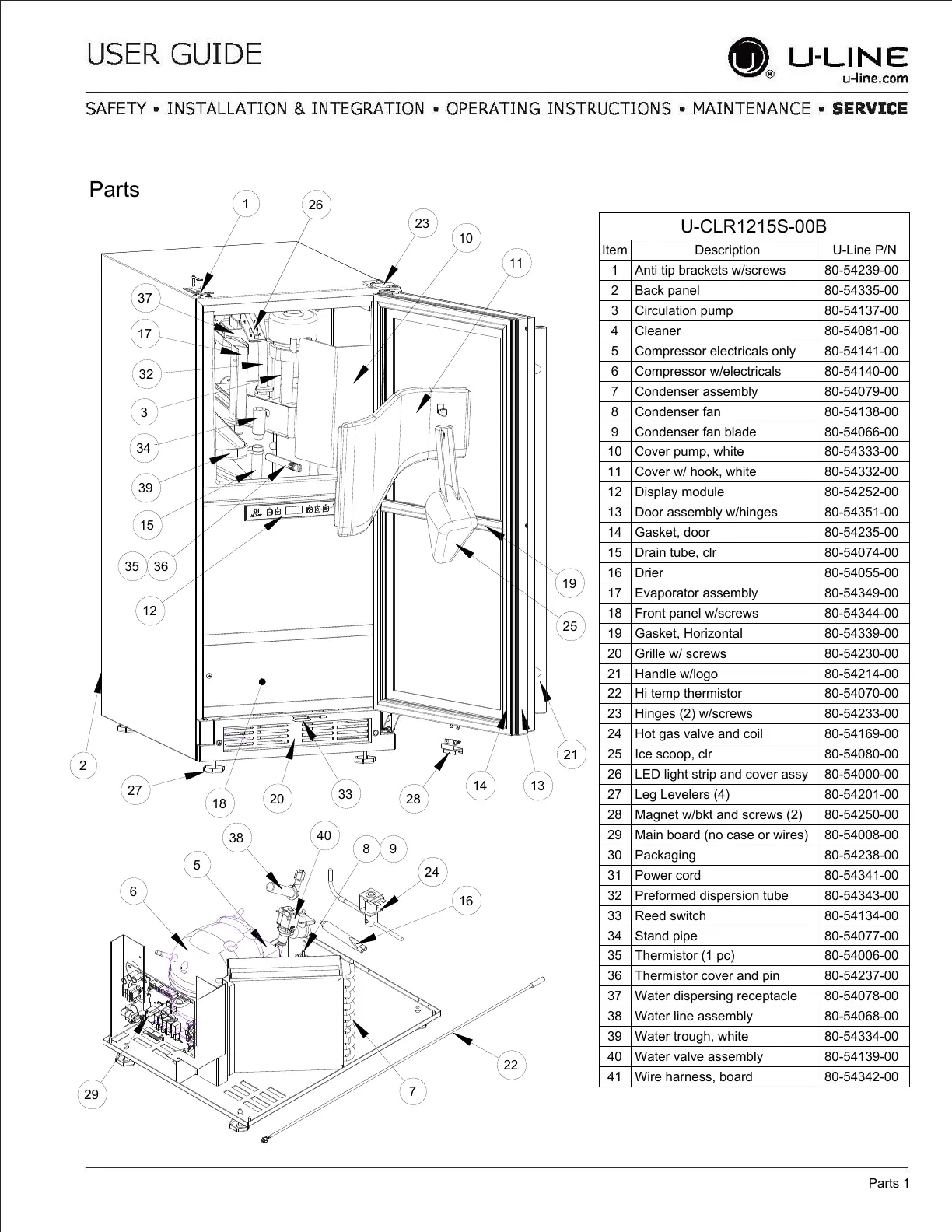

Item Description U-Line P/N
1 Anti tip brackets w/screws 80-54239-00
2 Back panel 80-54335-00
3 Circulation pump 80-54137-00
4 Cleaner 80-54081-00
5 Compressor electricals only 80-54141-00
6 Compressor w/electricals 80-54140-00
7 Condenser assembly 80-54079-00
8 Condenser fan 80-54138-00
9 Condenser fan blade 80-54066-00
10 Cover pump, white 80-54333-00
11 Cover w/ hook, white 80-54332-00
12 Display module 80-54252-00
13 Door assembly w/hinges 80-54351-00
14 Gasket, door 80-54235-00
15 Drain tube, clr 80-54074-00
16 Drier 80-54055-00
17 Evaporator assembly 80-54349-00
18 Front panel w/screws 80-54344-00
19 Gasket, Horizontal 80-54339-00
20 Grille w/ screws 80-54230-00
21 Handle w/logo 80-54214-00
22 Hi temp thermistor 80-54070-00
23 Hinges (2) w/screws 80-54233-00
24 Hot gas valve and coil 80-54169-00
25 Ice scoop, clr 80-54080-00
26 LED light strip and cover assy 80-54000-00
27 Leg Levelers (4) 80-54201-00
28 Magnet w/bkt and screws (2) 80-54250-00
29 Main board (no case or wires) 80-54008-00
30 Packaging 80-54238-00
31 Power cord 80-54341-00
32 Preformed dispersion tube 80-54343-00
33 Reed switch 80-54134-00
34 Stand pipe 80-54077-00
35 Thermistor (1 pc) 80-54006-00
36 Thermistor cover and pin 80-54237-00
37 Water dispersing receptacle 80-54078-00
38 Water line assembly 80-54068-00
39 Water trough, white 80-54334-00
40 Water valve assembly 80-54139-00
41 Wire harness, board 80-54342-00
