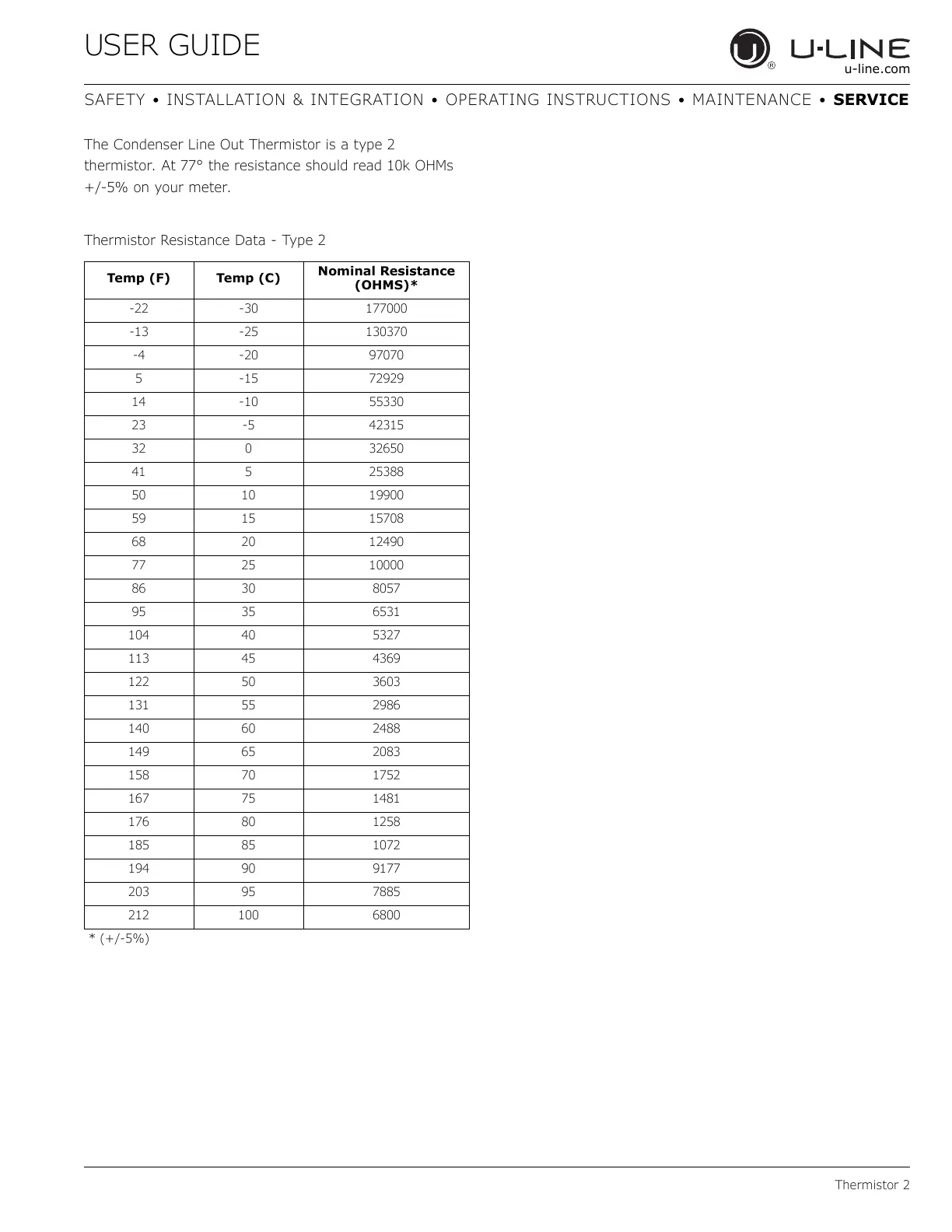

USER GUIDE
Thermistor 2
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
The Condenser Line Out Thermistor is a type 2
thermistor. At 77° the resistance should read 10k OHMs
+/-5% on your meter.
Thermistor Resistance Data - Type 2
Temp (F) Temp (C)
Nominal Resistance
(OHMS)*
-22 -30 177000
-13 -25 130370
-4 -20 97070
5 -15 72929
14 -10 55330
23 -5 42315
32 0 32650
41 5 25388
50 10 19900
59 15 15708
68 20 12490
77 25 10000
86 30 8057
95 35 6531
104 40 5327
113 45 4369
122 50 3603
131 55 2986
140 60 2488
149 65 2083
158 70 1752
167 75 1481
176 80 1258
185 85 1072
194 90 9177
203 95 7885
212 100 6800
* (+/-5%)
